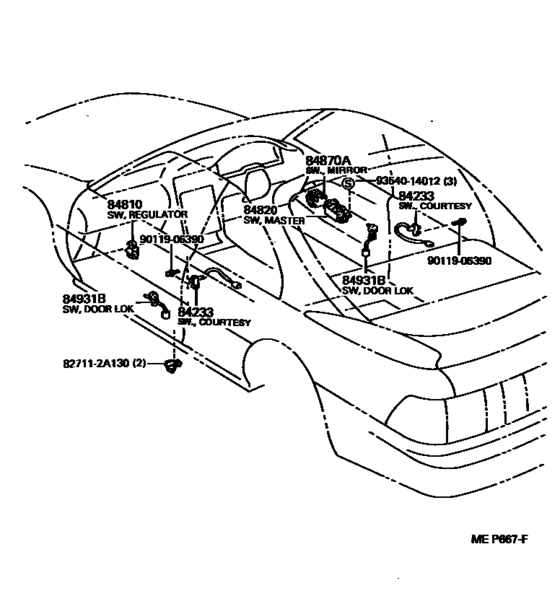

Switch & Relay & Computer ([12.1989 - ] DOOR SWITCH & RELAY (8912- )) Diagram Toyota MR 2/ MR-S
- Year
- 1989 - 1999
- Sales region
- Japan
- Frame
- SW20
- grade
- GT
- body
- CP
- ENGINE
- 3SGTE
- TRANSMISSION
- MTM
- Model
- MR2
- From
- 12.1989
- To
- 08.1999
- Gear Shift Type
- 5F
- Vehicle Model
- MR2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84233
|
84233
84231-17030
Switch Assy, Courtesy Lamp (For Front Door)
[12.1989 -] SW20 |
84231-17030 |
— | ||
| replacement | |||||
|
84233
|
84233
84231-50010
Switch Assy, Courtesy Lamp (For Front Door)
[12.1989 -] SW20 |
84231-50010 |
— | ||
|
84810
|
84810
84810-32070 Switch Assy, Power Window Regulator[12.1989 -] SW20 |
84810-32070 |
from US $35.72 |
||
|
84820
|
84820
84820-16040 Master Switch Assy, Power Window Regulator[11.1993 -] SW20 |
84820-16040 |
US $253.34 |
||
|
84820
|
84820
84820-87010
Master Switch Assy, Power Window Regulator
[12.1989 - 11.1993] SW20 |
84820-87010 |
— | ||
|
84870A
|
84870A
84870-17030
Switch Assy, Outer Mirror
[12.1991 -] SW20 |
84870-17030 |
— | ||
|
84870A
|
84870A
84870-17040 Switch Assy, Outer Mirror[12.1989 -] SW20 ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳｼｷ ﾄﾞｱ ﾐﾗ-) |
84870-17040 |
US $90.27 |
||
|
84931B
|
84931B
84931-17051
Switch, Door Control
[12.1989 -] SW20 左側 |
84931-17051 |
— | ||
|
84931B
|
84931B
84931-17060
Switch, Door Control
[12.1989 - 10.1995] SW20 右側 |
84931-17060 |
— | ||
| replacement | |||||
|
84931B
|
84931B
84931-17061
Switch, Door Control
[12.1989 - 10.1995] SW20 右側 |
84931-17061 |
— | ||
|
84931B
|
84931B
84931-17061
Switch, Door Control
[10.1995 -] SW20 右側 |
84931-17061 |
— | ||
|
827112A130
|
827112A130
82711-2A130 Clamp, Hood Lock Control Wire |
82711-2A130 |
US $6.12 |
||
| replacement | |||||
|
827112A130
|
827112A130
82711-16820 Clamp, Hood Lock Control Wire |
82711-16820 |
from US $1.21 |
||
|
9011906390
|
9011906390
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.12 |
||
|
9354014012
|
9354014012
93540-14012 Screw |
93540-14012 |
from US $1.92 |
||
