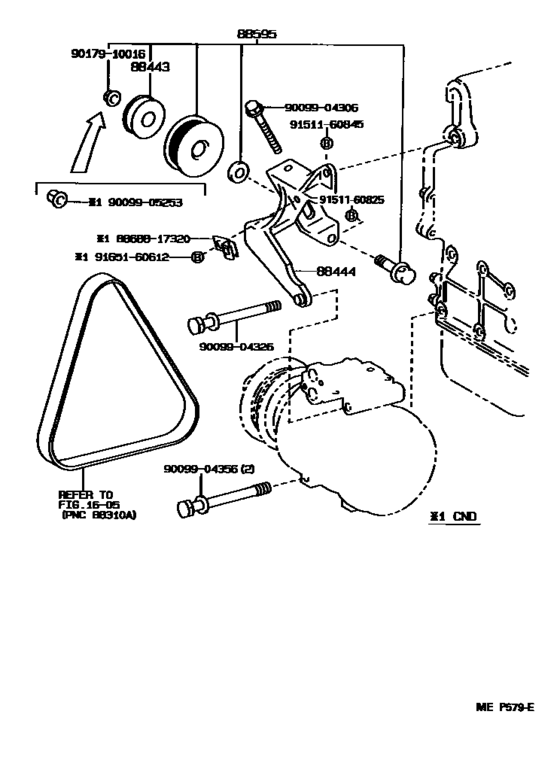

Heating & Air Conditioning - Compressor ([01.1990 - ] (9001- )SW20) Diagram Toyota MR 2/ MR-S
- Year
- 1990 - 1995
- Sales region
- U.S.A.
- Frame
- SW20
- body
- TBR
- ENGINE
- 3SGTE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- MR2
- From
- 01.1990
- To
- 06.1995
- Gear Shift Type
- 5F
- Vehicle Model
- MR2
- Fuel Induction
- TWT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88443
|
88443
88443-36010 Collar, Idle Pulley[01.1990 - 11.1993] SW2# |
88443-36010 |
from US $1.67 |
||
|
88444
|
88444
88444-17020
Bracket, Idle Pulley
[01.1990 - 06.1995] SW20 |
88444-17020 |
— | ||
|
88595
|
88595
88440-17010 Pulley Assy, Idle[01.1990 - 02.1990] SW2#..USA |
88440-17010 |
US $94.72 |
||
|
88595
|
88595
88440-26100 Pulley Assy, Idle[02.1990 - 06.1995] SW2# |
88440-26100 |
from US $94.72 |
||
|
8868817320
|
8868817320
88688-17320
Bracket, Cooler Diaphragm
|
88688-17320 |
— | ||
|
9009904306
|
9009904306
90099-04306 Bolt, Idle Pulley |
90099-04306 |
US $1.92 |
||
|
9009904326
|
9009904326
90099-04326
New Genuine Part
|
90099-04326 |
— | ||
| replacement | |||||
|
9009904326
|
9009904326
90119-08C30 New Genuine Part |
90119-08C30 |
from US $0.89 |
||
|
9009904356
|
9009904356
90099-04356 BOLT |
90099-04356 |
US $2.77 |
||
| replacement | |||||
|
9009904356
|
9009904356
90099043561
Bolt
|
90099043561 |
— | ||
|
9009905253
|
9009905253
90099-05253
New Genuine Part
|
90099-05253 |
— | ||
|
9017910016
|
9017910016
90179-10016
Nut(For Counter Gear Shaft)
|
90179-10016 |
— | ||
| replacement | |||||
|
9017910016
|
9017910016
90179-10132 Nut |
90179-10132 |
from US $0.94 |
||
|
9151160825
|
9151160825
91511-60825
Bolt (For Transfer Stiffener Plate)
|
91511-60825 |
— | ||
| replacement | |||||
|
9151160825
|
9151160825
91511-B0825 Bolt (For Transfer Stiffener Plate) |
91511-B0825 |
from US $2.24 |
||
|
9151160845
|
9151160845
91511-60845 Bolt (For Transfer Stiffener Plate) |
91511-60845 |
US $2.97 |
||
| replacement | |||||
|
9151160845
|
9151160845
91511-B0845 Bolt |
91511-B0845 |
US $3.04 |
||
|
9165160612
|
9165160612
91651-60612 BOLT |
91651-60612 |
US $1.44 |
||
