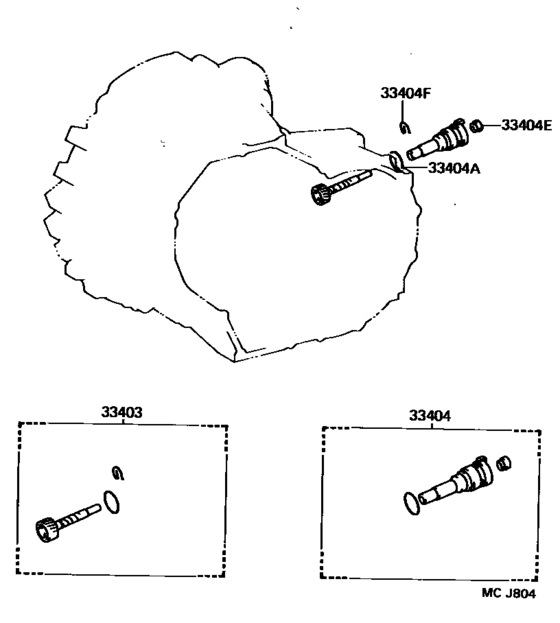

Speedometer Driven Gear (Mtm) ([01.1990 - 01.1992] E153 (9001-9201)SW20) Diagram Toyota MR 2/ MR-S
- Year
- 1990 - 1995
- Sales region
- U.S.A.
- Frame
- SW20
- body
- TBR
- ENGINE
- 3SGTE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- MR2
- From
- 01.1990
- To
- 06.1995
- Gear Shift Type
- 5F
- Vehicle Model
- MR2
- Fuel Induction
- TWT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33403
|
33403
33403-19405
Gear Sub-Assy, Speedometer Driven (Mtm)
[01.1990 - 02.1991] SW20 N=30,MARK 30:35 |
33403-19405 |
— | ||
| replacement | |||||
|
33403
|
33403
33403-19406 Gear Sub-Assy, Speedometer Driven (Mtm)[01.1990 - 02.1991] SW20 N=30,MARK 30:35 |
33403-19406 |
from US $25.38 |
||
|
33403
|
33403
33403-19406 Gear Sub-Assy, Speedometer Driven (Mtm)[02.1991 - 01.1992] SW20 N=30,MARK 30:35 |
33403-19406 |
from US $25.38 |
||
|
33403
|
33403
33403-19475
Gear Sub-Assy, Speedometer Driven (Mtm)
[01.1992 - 04.1992] SW20 N=30,MARK 30:35 |
33403-19475 |
— | ||
| replacement | |||||
|
33403
|
33403
33403-19476
Gear Sub-Assy, Speedometer Driven (Mtm)
[01.1992 - 04.1992] SW20 N=30,MARK 30:35 |
33403-19476 |
— | ||
|
33403
|
33403
33403-19476
Gear Sub-Assy, Speedometer Driven (Mtm)
[04.1992 - 06.1995] SW20 N=30,MARK 30:35 |
33403-19476 |
— | ||
|
33404
|
33404
33404-17010 Sleeve Sub-Assy, Speedometer Shaft (Mtm)[01.1990 - 01.1992] SW20 |
33404-17010 |
US $21.67 |
||
|
33404A
|
33404A
96721-24030 Ring, O (For Mtm Speedometer Shaft Sleeve)[01.1990 - 01.1992] SW20 |
96721-24030 |
US $1.40 |
||
|
33404E
|
33404E
90310-09003
Seal, Oil (For Mtm Speedometer Shaft Sleeve)
[01.1990 - 01.1992] SW20 |
90310-09003 |
— | ||
|
33404F
|
33404F
90468-12005 Clip (For Mtm Speedometer Shaft Sleeve)[01.1990 - 06.1995] SW2#..5F |
90468-12005 |
US $1.44 |
||
