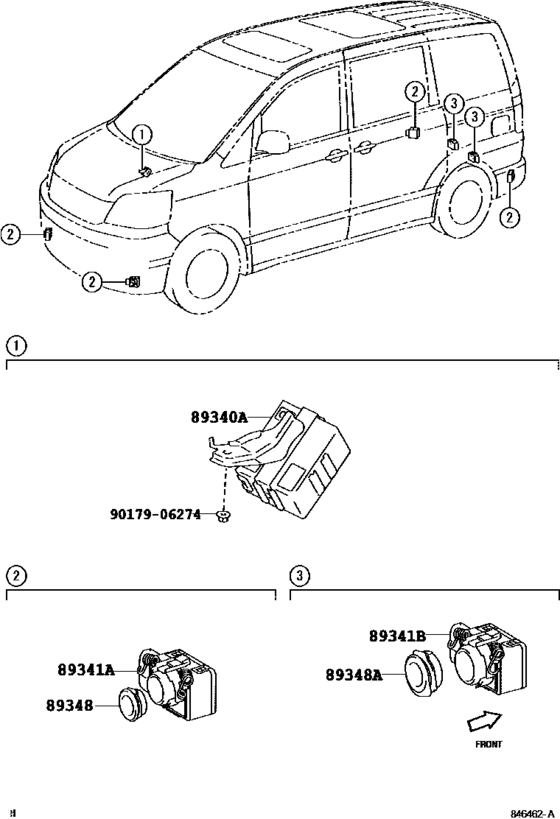

Clearance & Back Sonar ([08.2004 - ] (0408- )07S,08S) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2004 - 2007
- Sales region
- Japan
- Frame
- AZR65
- grade
- Z
- ENGINE
- 1AZFSE
- Model
- VOXY
- From
- 08.2004
- To
- 06.2007
- Gear Shift Type
- CVHC
- Seating Capacity
- 08S
- Vehicle Model
- VOXY
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89340A
|
89340A
89340-28170 Computer Assy, Clearance Warning[08.2004 -] AZR6#..07S,08S ｱﾘ(ﾊﾞﾂｸｿﾅ-) |
89340-28170 |
US $599.87 |
||
|
89340A
|
89340A
89340-28180 Computer Assy, Clearance Warning[08.2004 -] AZR6#..07S,08S |
89340-28180 |
US $599.87 |
||
|
89341A
|
89341A
89341-28430 Sensor, Ultrasonic, No.1[08.2004 -] AZR6#..07S,08S |
89341-28430 |
US $240.24 |
||
|
89341B
|
89341B
89341-28440 Sensor, Ultrasonic, No.2[08.2004 -] AZR6#..07S,08S |
89341-28440 |
US $240.24 |
||
|
89348
|
89348
89348-28060
Retainer, Ultrasonic Sensor, No.1
[08.2004 -] AZR6#..07S,08S |
89348-28060 |
— | ||
|
89348A
|
89348A
89348-28070
Retainer, Ultrasonic Sensor, No.2
[08.2004 -] AZR6#..07S,08S |
89348-28070 |
— | ||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
