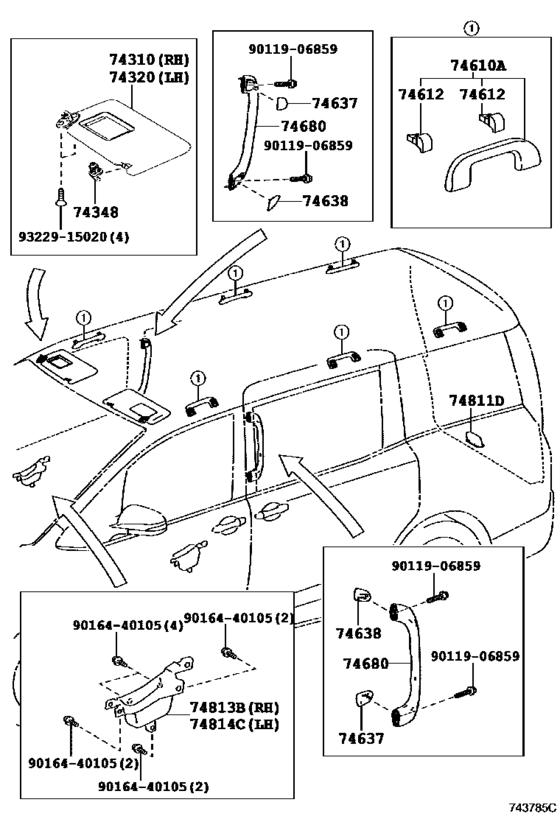

Armrest & Visor ([01.2014 - ] ﾊﾞｲｻﾞ & ｱｼｽﾄｸﾞﾘｯﾌﾟ (1401- )) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2014 - 2017
- Sales region
- Japan
- Frame
- ZRR80
- grade
- GI
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- Model
- ESQUIRE
- From
- 10.2014
- To
- 06.2017
- Seating Capacity
- 07S
- Vehicle Model
- ESQUIRE
- Fuel Induction
- HTWVM
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74310
|
74310
74310-28C70-B0 Visor Assy, Rh[01.2014 - 01.2016] ZRR80..07S..ZS..CBU;ZRR8#,ZWR80..(GI,SI)..CBU LT.GRAY,TRIM2# |
74310-28C70-B0 |
US $42.64 |
||
|
74310
|
74310
74310-28C70-B1 Visor Assy, Rh[12.2016 -] ZRR8#,ZWR80..NOAH..(G,X) LT.GRAY,TRIM0#,2#; ZRR8#,ZWR80..GI LT.GRAY,TRIM22,23; ZRR80..07S..ZS..CBU LT.GRAY,TRIM20,21; ZRR8#,ZWR80..SI..CBU LT.GRAY,TRIM20; ZRR80..(SI,ZS)..IV5;ZRR80..08S..ZS..CBU;ZRR80..(ESQIR,VOXY)..(V,X,XI);ZRR85,ZWR80. .(ESQ |
74310-28C70-B1 |
US $54.11 |
||
|
74310
|
74310
74310-28C70-C0 Visor Assy, Rh[01.2016 - 12.2016] ZRR80..07S..ZS..CBU BLACK,TRIM23; ZRR80..07S..SI..CBU BLACK,TRIM23,24; ZRR80..GI;ZRR85,ZWR80..GI,SI;ZRR80..08S..SI..CBU BLACK,TRIM24 |
74310-28C70-C0 |
US $42.64 |
||
|
74310
|
74310
74310-28C70-C1 Visor Assy, Rh[12.2016 -] ZRR80..07S..ZS..CBU BLACK,TRIM23; ZRR80..07S..SI..CBU BLACK,TRIM23,24; ZRR80..GI;ZRR85,ZWR80..GI,SI;ZRR80..08S..SI..CBU BLACK,TRIM24 |
74310-28C70-C1 |
US $42.64 |
||
|
74320
|
74320
74320-28870-B0 Visor Assy, Lh[01.2014 - 01.2016] ZRR80..07S..ZS..CBU;ZRR8#,ZWR80..(GI,SI)..CBU LT.GRAY,TRIM2# |
74320-28870-B0 |
US $37.86 |
||
|
74320
|
74320
74320-28870-B1 Visor Assy, Lh[12.2016 -] ZRR8#,ZWR80..NOAH..(G,X) LT.GRAY,TRIM0#,2#; ZRR8#,ZWR80..GI LT.GRAY,TRIM22,23; ZRR80..07S..ZS..CBU LT.GRAY,TRIM20,21; ZRR8#,ZWR80..SI..CBU LT.GRAY,TRIM20; ZRR80..(SI,ZS)..IV5;ZRR80..08S..ZS..CBU;ZRR80..(ESQIR,VOXY)..(V,X,XI);ZRR85,ZWR80. .(ESQ |
74320-28870-B1 |
US $34.36 |
||
|
74320
|
74320
74320-28870-C0 Visor Assy, Lh[01.2016 - 12.2016] ZRR80..07S..ZS..CBU BLACK,TRIM23; ZRR80..07S..SI..CBU BLACK,TRIM23,24; ZRR80..GI;ZRR85,ZWR80..GI,SI;ZRR80..08S..SI..CBU BLACK,TRIM24 |
74320-28870-C0 |
US $37.86 |
||
|
74320
|
74320
74320-28870-C1 Visor Assy, Lh[12.2016 -] ZRR80..07S..ZS..CBU BLACK,TRIM23; ZRR80..07S..SI..CBU BLACK,TRIM23,24; ZRR80..GI;ZRR85,ZWR80..GI,SI;ZRR80..08S..SI..CBU BLACK,TRIM24 |
74320-28870-C1 |
US $34.36 |
||
|
74348
|
74348
74348-33040-B1 Holder, Visor[01.2014 - 01.2016] ZRR80..07S..ZS..CBU;ZRR8#,ZWR80..(GI,SI)..CBU LT.GRAY,TRIM2# |
74348-33040-B1 |
from US $6.03 |
||
|
74348
|
74348
74348-33040-C0 Holder, VisorVISOR [01.2016 - 10.2016] ZRR80..07S..ZS..CBU BLACK,TRIM23; ZRR80..07S..SI..CBU BLACK,TRIM23,24; ZRR80..GI;ZRR85,ZWR80..GI,SI;ZRR80..08S..SI..CBU BLACK,TRIM24 |
74348-33040-C0 |
US $6.81 |
||
|
74348
|
74348
74348-33040-C2 Holder, Visor[10.2016 -] ZRR80..07S..ZS..CBU BLACK,TRIM23; ZRR80..07S..SI..CBU BLACK,TRIM23,24; ZRR80..GI;ZRR85,ZWR80..GI,SI;ZRR80..08S..SI..CBU BLACK,TRIM24 |
74348-33040-C2 |
from US $5.89 |
||
|
74610A
|
74610A
74610-52020-B1 Grip Sub-Assy, Assist (LT.GRAY)[01.2014 - 01.2016] ZRR80..07S..ZS..CBU;ZRR8#,ZWR80..(GI,SI)..CBU LT.GRAY,TRIM2# |
74610-52020-B1 |
from US $15.80 |
||
|
74610A
|
74610A
74610-52020-C0 Grip Sub-Assy, Assist[01.2016 -] ZRR80..07S..ZS..CBU BLACK,TRIM23; ZRR80..07S..SI..CBU BLACK,TRIM23,24; ZRR80..GI;ZRR85,ZWR80..GI,SI;ZRR80..08S..SI..CBU BLACK,TRIM24 |
74610-52020-C0 |
US $19.61 |
||
|
74612
|
74612
74612-52030-B1 Cover, Assist Grip (LT.GRAY)[01.2014 - 01.2016] ZRR80..07S..ZS..CBU;ZRR8#,ZWR80..(GI,SI)..CBU LT.GRAY,TRIM2# |
74612-52030-B1 |
US $4 |
||
|
74612
|
74612
74612-52030-C0 Cover, Assist Grip[01.2016 -] ZRR80..07S..ZS..CBU BLACK,TRIM23; ZRR80..07S..SI..CBU BLACK,TRIM23,24; ZRR80..GI;ZRR85,ZWR80..GI,SI;ZRR80..08S..SI..CBU BLACK,TRIM24 |
74612-52030-C0 |
US $3.84 |
||
|
74637
|
74637
74637-28010-B0 Plug, Assist Grip, No.2 Rh[01.2014 - 01.2016] ZRR8#..VOXY..X;ZRR8#..GI,SI,V,ZS;ZWR80..(ESQIR,VOXY)..(GI,V,X) LT.GRAY,TRIM2#; ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) LT.GRAY,TRIM0#,2# |
74637-28010-B0 |
US $3.52 |
||
|
74637
|
74637
74637-28010-C0 Plug, Assist Grip, No.2 Rh[01.2016 -] ZRR80..SI..IV5;ZRR8#,ZWR80..VOXY..(V,X) BLACK,TRIM20; ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM00,20; ZRR8#,ZWR80..07S..GI BLACK,TRIM22,24; ZRR80..07S..ZS..CBU BLACK,TRIM20,21,23; ZRR80..07S..SI..CBU BLACK,TRIM20,23,24; ZRR85..ZS;ZRR80..Z |
74637-28010-C0 |
US $3.52 |
||
|
74638
|
74638
74638-28010-B0 Plug, Assist Grip, No.2 Lh[01.2014 - 01.2016] ZRR8#..VOXY..X;ZRR8#..GI,SI,V,ZS;ZWR80..(ESQIR,VOXY)..(GI,V,X) LT.GRAY,TRIM2#; ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) LT.GRAY,TRIM0#,2# |
74638-28010-B0 |
US $3.52 |
||
|
74638
|
74638
74638-28010-C0 Plug, Assist Grip, No.2 Lh[01.2016 -] ZRR80..SI..IV5;ZRR8#,ZWR80..VOXY..(V,X) BLACK,TRIM20; ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM00,20; ZRR8#,ZWR80..07S..GI BLACK,TRIM22,24; ZRR80..07S..ZS..CBU BLACK,TRIM20,21,23; ZRR80..07S..SI..CBU BLACK,TRIM20,23,24; ZRR85..ZS;ZRR80..Z |
74638-28010-C0 |
US $3.52 |
||
|
74680
|
74680
74680-28010-B0 Grip Assy, Pillar Assist[01.2014 - 01.2016] ZRR8#..VOXY..X;ZRR8#..GI,SI,V,ZS;ZWR80..(ESQIR,VOXY)..(GI,V,X) LT.GRAY,TRIM2#; ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) LT.GRAY,TRIM0#,2# |
74680-28010-B0 |
US $109.56 |
||
|
74680
|
74680
74680-28010-C0 Grip Assy, Pillar Assist[01.2016 -] ZRR80..SI..IV5;ZRR8#,ZWR80..VOXY..(V,X) BLACK,TRIM20; ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM00,20; ZRR8#,ZWR80..07S..GI BLACK,TRIM22,24; ZRR80..07S..ZS..CBU BLACK,TRIM20,21,23; ZRR80..07S..SI..CBU BLACK,TRIM20,23,24; ZRR85..ZS;ZRR80..Z |
74680-28010-C0 |
US $109.56 |
||
|
74811D
|
74811D
74811-13010-C0 Pull Assy, Door, Inside[01.2014 -] ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2#; ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
74811-13010-C0 |
US $7.68 |
||
| replacement | |||||
|
74811D
|
74811D
7481113010C2 HANDLE DOOR PULL[01.2014 -] ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2#; ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
7481113010C2 |
from US $8.05 |
||
|
74813B
|
74813B
74813-28020-C0 Handle, Front Door Pull, Rh[01.2014 -] ZRR8#,ZWR80..NOAH..X BLACK,TRIM0#,2#; ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,XI,ZS BLACK,TRIM2# |
74813-28020-C0 |
US $16.16 |
||
|
74814C
|
74814C
74814-28020-C0 Handle, Front Door Pull, Lh[01.2014 -] ZRR8#,ZWR80..NOAH..X BLACK,TRIM0#,2#; ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,XI,ZS BLACK,TRIM2# |
74814-28020-C0 |
US $16.16 |
||
|
9011906859
|
9011906859
90119-06859 BOLT WWASHER |
90119-06859 |
from US $1.05 |
||
|
9016440105
|
9016440105
90164-40105 SCREW BINDING |
90164-40105 |
US $1.12 |
||
|
9322915020
|
9322915020
93229-15020 SCREW |
93229-15020 |
from US $0.76 |
||
