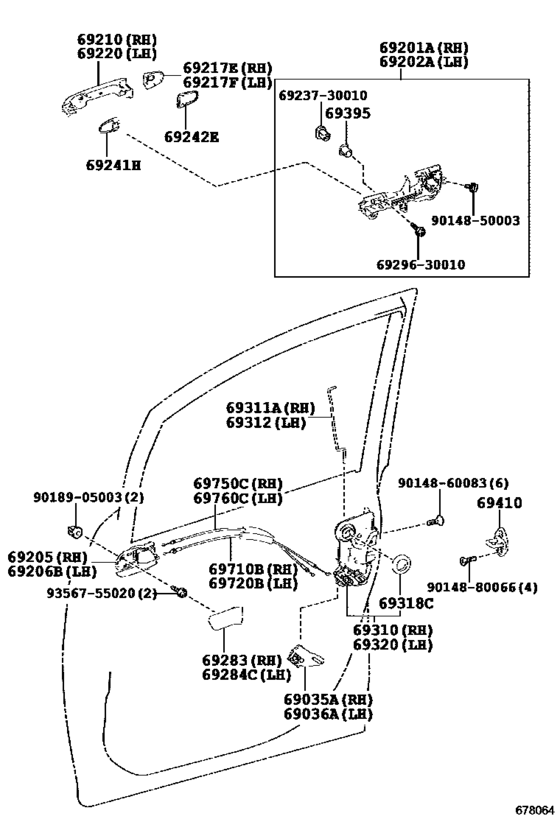

Front Door Lock & Handle ([01.2014 - ] (1401- )) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2014 - 2017
- Sales region
- Japan
- Frame
- ZRR80
- grade
- GI
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- Model
- ESQUIRE
- From
- 10.2014
- To
- 06.2017
- Seating Capacity
- 07S
- Vehicle Model
- ESQUIRE
- Fuel Induction
- HTWVM
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69035A
|
69035A
69035-30010 Cover Sub-Assy, Front Door Lock, Rh[01.2014 -] ZRR8#,ZWR80 |
69035-30010 |
from US $3.52 |
||
|
69036A
|
69036A
69036-30010 Cover Sub-Assy, Front Door Lock, Lh[01.2014 -] ZRR8#,ZWR80 |
69036-30010 |
US $3.52 |
||
|
69201A
|
69201A
69201-52130 Frame Sub-Assy, Front Door Outside Handle, Rh[01.2014 -] ZRR8#,ZWR80 |
69201-52130 |
from US $45.14 |
||
|
69202A
|
69202A
69202-52070 Frame Sub-Assy, Front Door Outside Handle, Lh[01.2014 -] ZRR8#,ZWR80 |
69202-52070 |
from US $45.14 |
||
|
69205
|
69205
69205-30210-C0
Handle Sub-Assy, Front Door Inside, Rh
[01.2014 - 01.2017] ZRR8#,ZWR80..G,XI BLACK,TRIM0#,2#; ZRR8#,ZWR80..GI,V BLACK,TRIM2# |
69205-30210-C0 |
— | ||
| replacement | |||||
|
69205
|
69205
69205-30210-C1 Handle Sub-Assy, Front Door Inside, Rh[01.2014 - 01.2017] ZRR8#,ZWR80..G,XI BLACK,TRIM0#,2#; ZRR8#,ZWR80..GI,V BLACK,TRIM2# |
69205-30210-C1 |
from US $33.11 |
||
|
69205
|
69205
69205-30210-C1 Handle Sub-Assy, Front Door Inside, Rh[01.2017 - 06.2017] ZRR8#,ZWR80..G BLACK,TRIM0#,2#; ZRR8#,ZWR80..GI,V,XI BLACK,TRIM2#; ZRR80..07S..(SI,ZS)..CBU Ｇ’ｓ,BLACK,TRIM2#; ZRR8#,ZWR80..SI..CBU Ｓｉ“ＷｘＢ”＊（Ｃ）,BLACK,TRIM2#; ZRR8#,ZWR80..ZS..CBU ＺＳ“煌（きらめき）U”＊（Ｃ）,BLACK,TRIM2# |
69205-30210-C1 |
from US $33.11 |
||
|
69206B
|
69206B
69206-30210-C0 Handle Sub-Assy, Front Door Inside, Lh[01.2014 - 01.2017] ZRR8#,ZWR80..G,XI BLACK,TRIM0#,2#; ZRR8#,ZWR80..GI,V BLACK,TRIM2# |
69206-30210-C0 |
US $33.49 |
||
|
69206B
|
69206B
69206-30210-C1 Handle Sub-Assy, Front Door Inside, Lh[01.2017 - 06.2017] ZRR8#,ZWR80..G BLACK,TRIM0#,2#; ZRR8#,ZWR80..GI,V,XI BLACK,TRIM2#; ZRR80..07S..(SI,ZS)..CBU Ｇ’ｓ,BLACK,TRIM2#; ZRR8#,ZWR80..SI..CBU Ｓｉ“ＷｘＢ”＊（Ｃ）,BLACK,TRIM2#; ZRR8#,ZWR80..ZS..CBU ＺＳ“煌（きらめき）U”＊（Ｃ）,BLACK,TRIM2# |
69206-30210-C1 |
US $41.65 |
||
|
69210
|
69210
69210-58030 Handle Assy, Front Door, Outside[10.2014 -] ZRR8#..GI;ZWR80..ESQIR ＊ＣＲ; ZRR8#..XI..CBU ＊ＣＲ,スマートエントリ−有り（ドア＆バックドア）; ZRR8#..XI..IV5 ＊ＣＲ,スマートエントリ−有り（ドア＆スロープ） |
69210-58030 |
from US $154.08 |
||
|
69217E
|
69217E
69217-52070 Cover, Front Door Outside Handle, Rh[10.2014 -] ZRR8#,ZWR80..ESQIR ＊ＣＲ |
69217-52070 |
from US $7.45 |
||
|
69217F
|
69217F
69217-52081 Cover, Front Door Outside Handle, Lh[10.2014 -] ZRR8#,ZWR80..ESQIR ＊ＣＲ |
69217-52081 |
from US $20.22 |
||
|
69220
|
69220
69210-58030 Handle Assy, Front Door, Outside[10.2014 -] ZRR8#..GI;ZWR80..ESQIR ＊ＣＲ; ZRR8#..XI..CBU ＊ＣＲ,スマートエントリ−有り（ドア＆バックドア）; ZRR8#..XI..IV5 ＊ＣＲ,スマートエントリ−有り（ドア＆スロープ） |
69210-58030 |
from US $154.08 |
||
|
69241H
|
69241H
69241-52020 Pad, Rear Door Outside Handle, Front[01.2014 -] ZRR8#,ZWR80 |
69241-52020 |
from US $6.40 |
||
|
69242E
|
69242E
69242-52030 Pad, Rear Door Outside Handle, Front[01.2014 -] ZRR8#,ZWR80 |
69242-52030 |
from US $6.40 |
||
|
69283
|
69283
69283-30060-C1 Plug, Front Door Inside Handle Bezel, Rh[01.2014 - 12.2016] ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2#; ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
69283-30060-C1 |
US $4.80 |
||
| replacement | |||||
|
69283
|
69283
69283-30060-C2 Plug, Front Door Inside Handle Bezel, Rh[01.2014 - 12.2016] ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2#; ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
69283-30060-C2 |
US $5.92 |
||
|
69283
|
69283
69283-30060-C2 Plug, Front Door Inside Handle Bezel, Rh[12.2016 - 06.2017] ZRR8#,ZWR80..NOAH..(G,X) BLACK,TRIM0#,2#; ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,XI,ZS BLACK,TRIM2# |
69283-30060-C2 |
US $5.92 |
||
|
69284C
|
69284C
69284-30060-C1
Plug, Front Door Inside Handle Bezel, Lh
[01.2014 - 12.2016] ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2#; ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
69284-30060-C1 |
— | ||
| replacement | |||||
|
69284C
|
69284C
69284-30060-C2 Plug, Front Door Inside Handle Bezel, Lh[01.2014 - 12.2016] ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2#; ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
69284-30060-C2 |
US $5.92 |
||
|
69284C
|
69284C
69284-30060-C2 Plug, Front Door Inside Handle Bezel, Lh[12.2016 - 06.2017] ZRR8#,ZWR80..NOAH..(G,X) BLACK,TRIM0#,2#; ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,XI,ZS BLACK,TRIM2# |
69284-30060-C2 |
US $5.92 |
||
|
69310
|
69310
69030-30A70 Lock Assy, Front Door W/motor, Rh[01.2014 -] ZRR8#,ZWR80 |
69030-30A70 |
US $162.72 |
||
|
69311A
|
69311A
69311-28070 Rod, Front Door Lock Open, Rh[01.2014 -] ZRR8#,ZWR80 |
69311-28070 |
US $5.53 |
||
|
69312
|
69312
69312-28070 Rod, Front Door Lock Open, Lh[01.2014 -] ZRR8#,ZWR80 |
69312-28070 |
US $5.78 |
||
|
69318C
|
69318C
69318-51010 Seal, Front Door Lock Hole, Rh[01.2014 -] ZRR8#,ZWR80 |
69318-51010 |
from US $1.60 |
||
|
69320
|
69320
69040-30A80 Lock Assy, Front Door W/motor, Lh[01.2014 -] ZRR8#,ZWR80 |
69040-30A80 |
US $151.20 |
||
|
69395
|
69395
69239-30010 Bush(For Rear Door Outside Handle)[01.2014 -] ZRR8#,ZWR80 |
69239-30010 |
US $1.44 |
||
|
69410
|
69410
69410-20110 Plate Assy, Front Door Lock Striker[01.2014 -] ZRR8#,ZWR80 |
69410-20110 |
from US $15.96 |
||
|
69710B
|
69710B
69710-28060 Cable Assy, Front Door Lock Remote Control, Rh[01.2014 -] ZRR8#,ZWR80 |
69710-28060 |
US $17.63 |
||
|
69720B
|
69720B
69710-28060 Cable Assy, Front Door Lock Remote Control, Rh[01.2014 -] ZRR8#,ZWR80 |
69710-28060 |
US $17.63 |
||
|
69750C
|
69750C
69750-28060 Cable Assy, Front Door Inside Locking, Rh[01.2014 -] ZRR8#,ZWR80 |
69750-28060 |
US $17.63 |
||
|
69760C
|
69760C
69750-28060 Cable Assy, Front Door Inside Locking, Rh[01.2014 -] ZRR8#,ZWR80 |
69750-28060 |
US $17.63 |
||
|
6923730010
|
6923730010
69237-30010 Nut, Front Door Handle |
69237-30010 |
US $2.56 |
||
|
6929630010
|
6929630010
69296-30010 Screw, Door Inside Handle |
69296-30010 |
US $1.44 |
||
|
9014850003
|
9014850003
90148-50003 Screw Hex Lobular |
90148-50003 |
from US $0.68 |
||
|
9014860083
|
9014860083
90148-60083 SCREW HEXALOBULAR |
90148-60083 |
from US $0.57 |
||
|
9014880066
|
9014880066
90148-80066 SCREW HEXALOBULAR |
90148-80066 |
from US $0.68 |
||
|
9018905003
|
9018905003
90189-05003 CLIP |
90189-05003 |
from US $1.15 |
||
|
9356755020
|
9356755020
93567-55020 SCREW |
93567-55020 |
US $1.12 |
||
