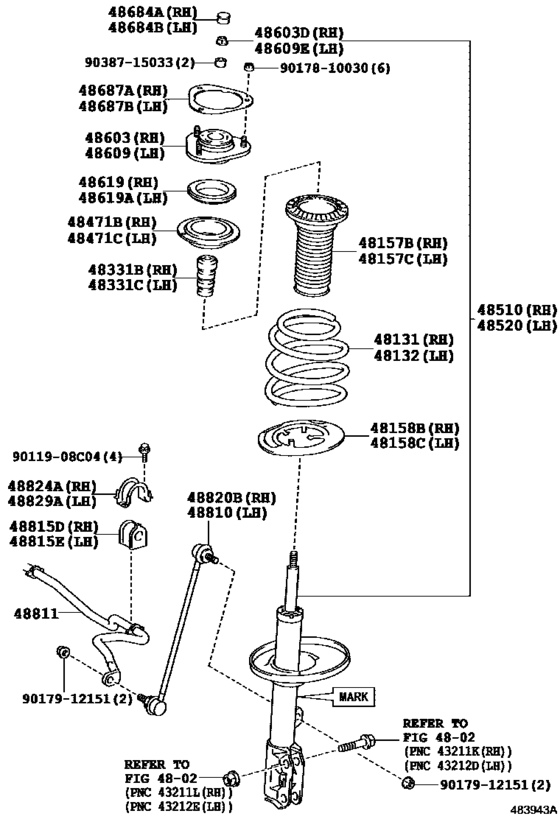

Front Spring & Shock Absorber ([01.2014 - 04.2015] (1401-1504)) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2014 - 2017
- Sales region
- Japan
- Frame
- ZRR80
- grade
- GI
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- Model
- ESQUIRE
- From
- 10.2014
- To
- 06.2017
- Seating Capacity
- 07S
- Vehicle Model
- ESQUIRE
- Fuel Induction
- HTWVM
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-28C40 Spring, Front Coil, Rh[01.2014 -] ZWR80;ZRR80..(G,GI,V,X,XI)..CBU |
48131-28C40 |
US $136.16 |
||
|
48132
|
48132
48131-28C40 Spring, Front Coil, Rh[01.2014 -] ZWR80;ZRR80..(G,GI,V,X,XI)..CBU |
48131-28C40 |
US $136.16 |
||
|
48157B
|
48157B
48157-28030 Insulator, Front Coil Spring, Upper Rh[01.2014 - 04.2015] ZRR8#,ZWR80 |
48157-28030 |
from US $21.13 |
||
|
48157C
|
48157C
48157-28030 Insulator, Front Coil Spring, Upper Rh[01.2014 - 04.2015] ZRR8#,ZWR80 |
48157-28030 |
from US $21.13 |
||
|
48158B
|
48158B
48158-42010 Insulator, Front Coil Spring, Lower[01.2014 - 03.2015] ZRR8#,ZWR80 |
48158-42010 |
from US $11.76 |
||
|
48158B
|
48158B
48158-58010 Insulator, Front Coil Spring, Lower[04.2015 -] ZRR8#,ZWR80 |
48158-58010 |
from US $15.96 |
||
|
48158C
|
48158C
48158-42010 Insulator, Front Coil Spring, Lower[01.2014 - 03.2015] ZRR8#,ZWR80 |
48158-42010 |
from US $11.76 |
||
|
48158C
|
48158C
48158-58010 Insulator, Front Coil Spring, Lower[04.2015 -] ZRR8#,ZWR80 |
48158-58010 |
from US $15.96 |
||
|
48331B
|
48331B
48331-42030 Bumper, Front Spring, Rh[01.2014 -] ZRR8#,ZWR80 |
48331-42030 |
US $16.61 |
||
| replacement | |||||
|
48331B
|
48331B
48331-28090 BUMPER FR SPRING[01.2014 -] ZRR8#,ZWR80 |
48331-28090 |
from US $12.66 |
||
|
48331C
|
48331C
48331-42030 Bumper, Front Spring, Rh[01.2014 -] ZRR8#,ZWR80 |
48331-42030 |
US $16.61 |
||
| replacement | |||||
|
48331C
|
48331C
48331-28090 BUMPER FR SPRING[01.2014 -] ZRR8#,ZWR80 |
48331-28090 |
from US $12.66 |
||
|
48471B
|
48471B
48471-42010 Seat, Front Coil Spring, Upper[01.2014 - 04.2015] ZRR8#,ZWR80 |
48471-42010 |
from US $14 |
||
|
48471C
|
48471C
48471-42010 Seat, Front Coil Spring, Upper[01.2014 - 04.2015] ZRR8#,ZWR80 |
48471-42010 |
from US $14 |
||
|
48510
|
48510
48510-80655
Absorber Assy, Shock, Front Rh
[01.2014 - 04.2015] ZRR85..ESQIR;ZRR80..G,GI,V,X,XI マーク ４８５１０−２８４６０ |
48510-80655 |
— | ||
| replacement | |||||
|
48510
|
48510
48510-80657 Absorber Assy, Shock, Front Rh[01.2014 - 04.2015] ZRR85..ESQIR;ZRR80..G,GI,V,X,XI マーク ４８５１０−２８４６０ |
48510-80657 |
US $375.20 |
||
|
48510
|
48510
48510-80799
Absorber Assy, Shock, Front Rh
[04.2015 -] ZRR8#..G,GI,V,X,XI マーク ４８５１０−２８４６１ |
48510-80799 |
— | ||
| replacement | |||||
|
48510
|
48510
48510-80801 Absorber Assy, Shock, Front Rh[04.2015 -] ZRR8#..G,GI,V,X,XI マーク ４８５１０−２８４６１ |
48510-80801 |
US $375.20 |
||
|
48520
|
48520
48520-80356 Absorber Assy, Shock, Front Lh[01.2014 - 04.2015] ZRR85..ESQIR;ZRR80..G,GI,V,X,XI マーク ４８５２０−２８４６０ |
48520-80356 |
US $375.20 |
||
|
48520
|
48520
48520-80475
Absorber Assy, Shock, Front Lh
[04.2015 -] ZRR8#..G,GI,V,X,XI マーク ４８５２０−２８４６１ |
48520-80475 |
— | ||
| replacement | |||||
|
48520
|
48520
48520-80477 Absorber Assy, Shock, Front Lh[04.2015 -] ZRR8#..G,GI,V,X,XI マーク ４８５２０−２８４６１ |
48520-80477 |
US $375.20 |
||
|
48603
|
48603
48609-28050 Support Sub-Assy, Front Suspension[01.2014 -] ZRR8#,ZWR80 |
48609-28050 |
US $70.53 |
||
|
48603D
|
48603D
90177-14005 Nut(For Front Support To Front Shock Absorber)[01.2014 -] ZRR8#,ZWR80 |
90177-14005 |
US $1.92 |
||
|
48609
|
48609
48609-28050 Support Sub-Assy, Front Suspension[01.2014 -] ZRR8#,ZWR80 |
48609-28050 |
US $70.53 |
||
|
48609E
|
48609E
90177-14005 Nut(For Front Support To Front Shock Absorber)[01.2014 -] ZRR8#,ZWR80 |
90177-14005 |
US $1.92 |
||
|
48619
|
48619
48619-28010 Bearing, Strut Mounting[01.2014 -] ZRR8#,ZWR80 |
48619-28010 |
from US $13.98 |
||
|
48619A
|
48619A
48619-28010 Bearing, Strut Mounting[01.2014 -] ZRR8#,ZWR80 |
48619-28010 |
from US $13.98 |
||
|
48684A
|
48684A
48684-42010 Cover, Front Suspension Support Dust, Rh[01.2014 -] ZRR8#,ZWR80 |
48684-42010 |
US $16.11 |
||
|
48684B
|
48684B
48684-42010 Cover, Front Suspension Support Dust, Rh[01.2014 -] ZRR8#,ZWR80 |
48684-42010 |
US $16.11 |
||
|
48687A
|
48687A
48687-28020 Plate, Front Suspension Support, Rh[01.2014 -] ZRR8#,ZWR80 |
48687-28020 |
US $3.52 |
||
|
48687B
|
48687B
48687-28020 Plate, Front Suspension Support, Rh[01.2014 -] ZRR8#,ZWR80 |
48687-28020 |
US $3.52 |
||
|
48810
|
48810
48820-44020 Link Assy, Front Stabilizer[01.2014 -] ZRR80,ZWR80 |
48820-44020 |
from US $76.15 |
||
|
48811
|
48811
48811-44050 Bar, Stabilizer, Front[01.2014 -] ZRR80 |
48811-44050 |
US $146.52 |
||
|
48815D
|
48815D
48815-28171 Bush, Front Stabilizer Bar, No.1[10.2014 -] ZRR8#,ZWR80 |
48815-28171 |
US $9.92 |
||
|
48815E
|
48815E
48815-28171 Bush, Front Stabilizer Bar, No.1[10.2014 -] ZRR8#,ZWR80 |
48815-28171 |
US $9.92 |
||
|
48820B
|
48820B
48820-44020 Link Assy, Front Stabilizer[01.2014 -] ZRR80,ZWR80 |
48820-44020 |
from US $76.15 |
||
|
48824A
|
48824A
48824-44041 Bracket, Front Stabilizer, No.1 Rh[01.2014 -] ZRR8#,ZWR80 |
48824-44041 |
US $14.40 |
||
|
48829A
|
48829A
48824-44041 Bracket, Front Stabilizer, No.1 Rh[01.2014 -] ZRR8#,ZWR80 |
48824-44041 |
US $14.40 |
||
|
9011908C04
|
9011908C04
90119-08C04 BOLT WWASHER |
90119-08C04 |
US $1.28 |
||
|
9017810030
|
9017810030
90178-10030 Nut(For Front Suspension Support) |
90178-10030 |
from US $0.92 |
||
|
9017912151
|
9017912151
90179-12151 Nut(For Front Stabilizer Link) |
90179-12151 |
from US $0.99 |
||
|
9038715033
|
9038715033
90387-15033 COLLAR |
90387-15033 |
from US $3.20 |
||
