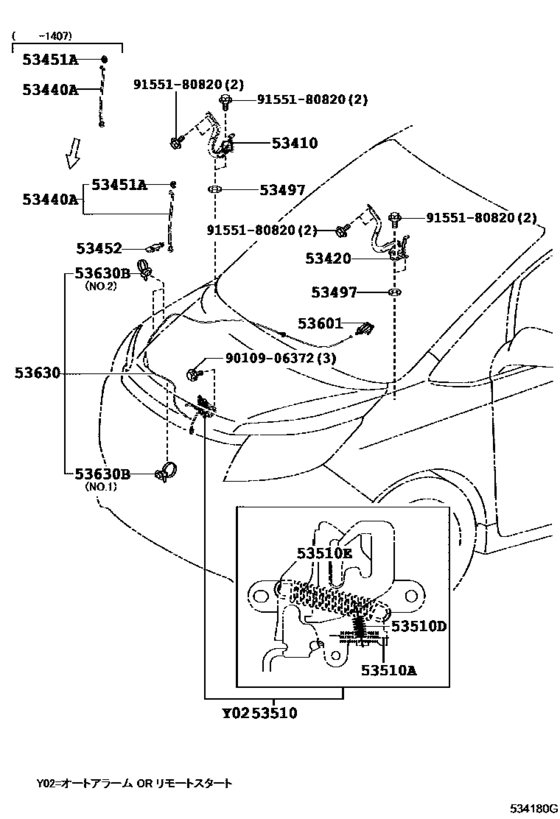

Hood Lock & Hinge ([01.2014 - ] (1401- )) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2014 - 2017
- Sales region
- Japan
- Frame
- ZRR80
- grade
- GI
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- Model
- ESQUIRE
- From
- 10.2014
- To
- 06.2017
- Seating Capacity
- 07S
- Vehicle Model
- ESQUIRE
- Fuel Induction
- HTWVM
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53410
|
53410
53410-28100 Hinge Assy, Hood, Rh[01.2014 -] ZRR8#,ZWR80 |
53410-28100 |
US $28.42 |
||
|
53420
|
53420
53420-28100 Hinge Assy, Hood, Lh[01.2014 -] ZRR8#,ZWR80 |
53420-28100 |
US $28.42 |
||
|
53440A
|
53440A
53440-28031 Support Assy, Hood, Rh[08.2014 -] ZRR8#,ZWR80 |
53440-28031 |
US $20.06 |
||
|
53451A
|
53451A
90480-15034 Grommet(For Hood Support)[08.2014 -] ZRR8#,ZWR80 |
90480-15034 |
from US $1.76 |
||
|
53452
|
53452
53452-28011 Holder, Hood Stay[07.2014 -] ZRR8#,ZWR80 |
53452-28011 |
US $9.12 |
||
|
53497
|
53497
53497-20070 Pad, Hood Hinge, No.1[01.2014 -] ZRR8#,ZWR80 厚さ＝２．０ |
53497-20070 |
US $2.24 |
||
|
53497
|
53497
53497-42010 Pad, Hood Hinge, No.1[01.2014 -] ZRR8#,ZWR80 厚さ＝０．５ |
53497-42010 |
US $1.60 |
||
|
53510
|
53510
53510-28171 Lock Assy, Hood[01.2014 -] ZRR8#..ESQIR,NOAH |
53510-28171 |
US $49.10 |
||
|
53510A
|
53510A
90506-09055 Spring, Tension(For Hood Lock)[01.2014 -] ZRR8#,ZWR80 線径＝０．９，コイル巻数＝２１ |
90506-09055 |
from US $1.44 |
||
|
53510D
|
53510D
90506-12063 Spring, Tension(For Hood Lock)[01.2014 -] ZRR8#,ZWR80 線径＝１．２，コイル巻数＝８．５ |
90506-12063 |
US $1.44 |
||
|
53510E
|
53510E
90506-18067 Spring, Tension(For Hood Lock)[01.2014 -] ZRR8#,ZWR80 線径＝１．８，コイル巻数＝１３ |
90506-18067 |
US $1.44 |
||
|
53601
|
53601
53601-52010-C0
Lever Sub-Assy, Hood Lock Control
[01.2014 - 12.2016] ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2#; ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
53601-52010-C0 |
— | ||
| replacement | |||||
|
53601
|
53601
53601-52010-C1 Lever Sub-Assy, Hood Lock Control[01.2014 - 12.2016] ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2#; ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
53601-52010-C1 |
from US $21.43 |
||
|
53601
|
53601
53601-52010-C1 Lever Sub-Assy, Hood Lock Control[12.2016 -] ZRR8#,ZWR80..NOAH..(G,X) BLACK,TRIM0#,2#; ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,XI,ZS BLACK,TRIM2# |
53601-52010-C1 |
from US $21.43 |
||
|
53630
|
53630
53630-28140 Cable Assy, Hood Lock Control[01.2014 -] ZRR8#,ZWR80 |
53630-28140 |
US $16.57 |
||
|
53630B
|
53630B
82711-3F440 Clamp, Hood Lock Control Cable[01.2014 -] ZRR8#,ZWR80 ＮＯ．１：イラスト参照 |
82711-3F440 |
US $1.92 |
||
|
53630B
|
53630B
82711-52070 Clamp(For Hood Lock Control Cable)[01.2014 -] ZRR8#,ZWR80 ＮＯ．２：イラスト参照 |
82711-52070 |
US $1.76 |
||
|
9010906372
|
9010906372
90109-06372 Bolt, Hood Lock |
90109-06372 |
US $0.96 |
||
|
9155180820
|
9155180820
91551-80820 Bolt, W/washer (For Transmission Oil Pump Cover) |
91551-80820 |
from US $0.78 |
||
