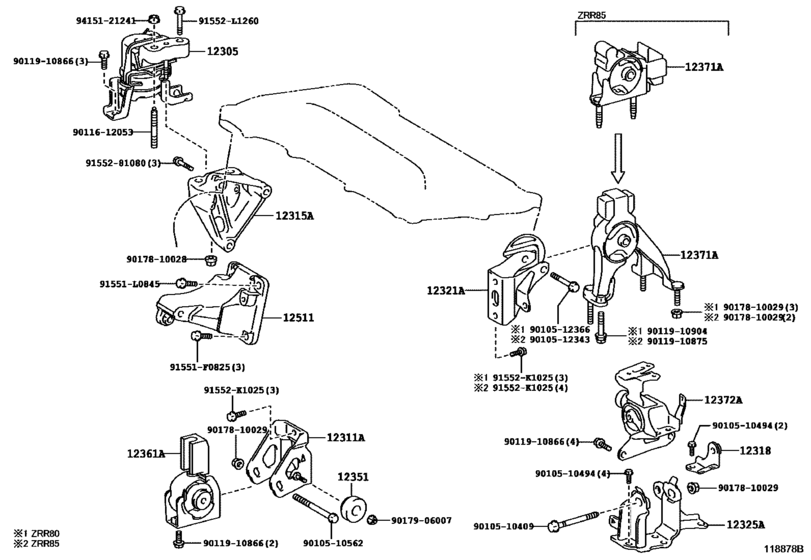

Mounting ([01.2014 - ] (1401- )3ZRFAE) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2014 - 2017
- Sales region
- Japan
- Frame
- ZRR80
- grade
- GI
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- Model
- ESQUIRE
- From
- 10.2014
- To
- 06.2017
- Seating Capacity
- 07S
- Vehicle Model
- ESQUIRE
- Fuel Induction
- HTWVM
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12305
|
12305
12305-37050 Insulator Sub-Assy, Engine Mounting, Rh[01.2014 -] 3ZRFAE..ZRR80 |
12305-37050 |
US $146.52 |
||
|
12311A
|
12311A
12311-37210 Bracket, Engine Mounting, Front(For Transverse Engine)[01.2014 -] 3ZRFAE..ZRR80 |
12311-37210 |
US $28.12 |
||
|
12315A
|
12315A
12315-37030 Bracket, Engine Mounting, Rh(For Transverse Engine)[01.2014 -] 2ZRFXE,3ZRFAE..ZRR8#,ZWR80 |
12315-37030 |
US $46.30 |
||
|
12318
|
12318
12318-37020 Stay, Engine Mounting, Lh[01.2014 -] 3ZRFAE..ZRR8# |
12318-37020 |
US $10.32 |
||
|
12321A
|
12321A
12321-37220 Bracket, Engine Mounting, Rear(For Transverse Engine)[01.2014 -] 3ZRFAE..ZRR80 |
12321-37220 |
US $44.08 |
||
|
12325A
|
12325A
12325-37210 Bracket, Engine Mounting, Lh(For Transverse Engine)[01.2014 -] 3ZRFAE..ZRR80 |
12325-37210 |
US $25.27 |
||
|
12351
|
12351
12351-28010 Damper, Engine Mounting[01.2014 -] 3ZRFAE..ZRR8# |
12351-28010 |
US $32.83 |
||
|
12361A
|
12361A
12361-37140 Insulator, Engine Mounting, Front(For Transverse Engine)[01.2014 -] 3ZRFAE..ZRR8# |
12361-37140 |
US $85.84 |
||
|
12371A
|
12371A
12371-37290 Insulator, Engine Mounting, Rear[01.2014 -] 3ZRFAE..ZRR80 |
12371-37290 |
US $109.52 |
||
|
12372A
|
12372A
12372-37280 Insulator, Engine Mounting, Lh(For Transverse Engine)[01.2014 -] 3ZRFAE..ZRR8# |
12372-37280 |
from US $93.24 |
||
|
12511
|
12511
12501-37010 Bracket Sub-Assy, Alternator[01.2014 -] 3ZRFAE..ZRR8# |
12501-37010 |
US $34.59 |
||
|
91551F0825
|
91551F0825
91551-F0825 BOLT FLANGE |
91551-F0825 |
US $1.28 |
||
|
91551L0845
|
91551L0845
91551-L0845 BOLT FLANGE |
91551-L0845 |
US $0.79 |
||
|
91552K1025
|
91552K1025
91552-K1025 BOLT FLANGE |
91552-K1025 |
US $1.60 |
||
|
91552L1260
|
91552L1260
91552-L1260 BOLT FLANGE |
91552-L1260 |
US $4.32 |
||
|
9010510409
|
9010510409
90105-10409 New Genuine Part |
90105-10409 |
US $4.32 |
||
|
9010510494
|
9010510494
90105-10494 BOLT FLANGE |
90105-10494 |
US $1.60 |
||
|
9010510562
|
9010510562
90105-10562 Bolt, No.2(For Alternator) |
90105-10562 |
US $3.84 |
||
|
9010512343
|
9010512343
90105-12343 New Genuine Part |
90105-12343 |
US $3.20 |
||
|
9010512366
|
9010512366
90105-12366 BOLT FLANGE |
90105-12366 |
US $3.84 |
||
|
9011612053
|
9011612053
90116-12053 BOLT STUD |
90116-12053 |
US $4.96 |
||
|
9011910866
|
9011910866
90119-10866 BOLT WWASHER |
90119-10866 |
from US $0.99 |
||
|
9011910875
|
9011910875
90119-10875 New Genuine Part |
90119-10875 |
US $2.56 |
||
|
9011910904
|
9011910904
90119-10904 BOLT WWASHER |
90119-10904 |
US $3.52 |
||
|
9017810028
|
9017810028
90178-10028 New Genuine Part |
90178-10028 |
US $1.92 |
||
|
9017810029
|
9017810029
90178-10029 Nut(For Front Suspension Support) |
90178-10029 |
from US $0.90 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.86 |
||
|
9155281080
|
9155281080
91552-81080 Bolt(For Alternator) |
91552-81080 |
from US $1.52 |
||
|
9415121241
|
9415121241
94151-21241 Nut(For Front Stabilizer Link) |
94151-21241 |
from US $0.94 |
