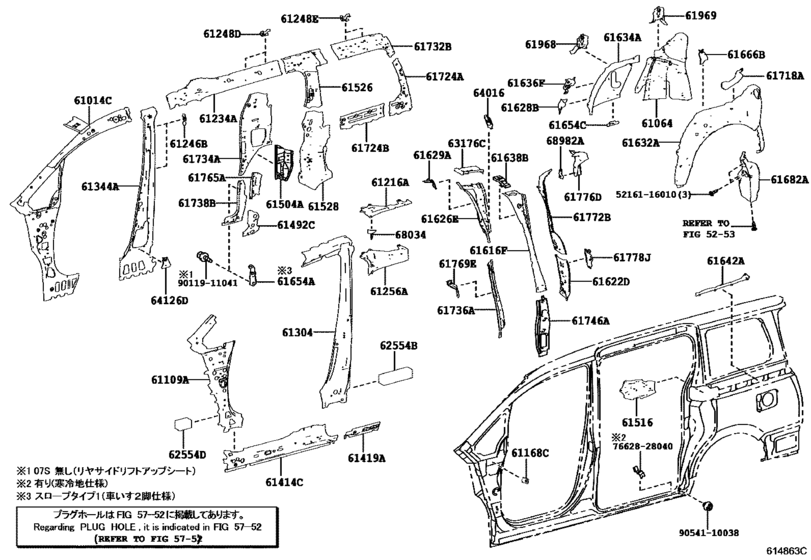

Side Member ([01.2014 - ] ｲﾝﾅﾊﾟﾈﾙ,LH (1401- )) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2014 - 2017
- Sales region
- Japan
- Frame
- ZRR80
- grade
- GI
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- Model
- ESQUIRE
- From
- 10.2014
- To
- 06.2017
- Seating Capacity
- 07S
- Vehicle Model
- ESQUIRE
- Fuel Induction
- HTWVM
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61014C
|
61014C
61014-28060 Panel Sub-Assy, Side, Inner Lh[01.2014 -] ZRR8#,ZWR80 |
61014-28060 |
US $236.09 |
||
|
61064
|
61064
61064-28180 Bracket, Sub-Assy, Rear Shock Absorber, Lh[01.2014 -] ZRR8#,ZWR80 |
61064-28180 |
US $160.16 |
||
|
61109A
|
61109A
61109-28040 Reinforce Sub-Assy, Front Body Pillar, Lower Lh[01.2014 -] ZRR8#,ZWR80 |
61109-28040 |
US $184.32 |
||
|
61168C
|
61168C
61168-44010 Bracket, No.6 Pillar Outer[01.2014 -] ZRR8#,ZWR80 |
61168-44010 |
US $3.68 |
||
|
61216A
|
61216A
61216-28060 Rail, Roof Side, Outer Rear Lh[01.2014 -] ZRR8#,ZWR80 |
61216-28060 |
US $31.45 |
||
|
61234A
|
61234A
61234-28150 Rail, Roof Side, Inner No.2 Lh[01.2014 -] ZRR8#,ZWR80 |
61234-28150 |
US $78.62 |
||
|
61246B
|
61246B
61245-28040 Bracket, Assist Grip, No.3 Rh[01.2014 -] ZRR8#,ZWR80 |
61245-28040 |
US $2.91 |
||
|
61248D
|
61248D
61247-28040 Bracket, Assist Grip, Rh[01.2014 -] ZRR8#,ZWR80 リヤ |
61247-28040 |
US $7.57 |
||
|
61248D
|
61248D
61247-28050 Bracket, Assist Grip, Rh[01.2014 -] ZRR8#,ZWR80 フロント |
61247-28050 |
US $7.57 |
||
|
61248E
|
61248E
61247-28030 Bracket, Assist Grip, No.4 Rh[01.2014 -] ZRR8#,ZWR80 リヤ |
61247-28030 |
US $6.41 |
||
|
61248E
|
61248E
61247-28060 Bracket, Assist Grip, No.4 Rh[01.2014 -] ZRR8#,ZWR80 フロント |
61247-28060 |
US $6.41 |
||
|
61256A
|
61256A
61256-28050 Plate, Roof Side Rail, Outer Lh[01.2014 -] ZRR8#,ZWR80 |
61256-28050 |
US $52.12 |
||
|
61304
|
61304
61304-28040 Reinforce Sub-Assy, Center Body Pillar, Upper Lh[01.2014 -] ZRR8#,ZWR80 |
61304-28040 |
US $295.57 |
||
|
61344A
|
61344A
61344-28160 Pillar, Center Body, Inner Lh[01.2014 -] ZRR8#,ZWR80 |
61344-28160 |
US $168.64 |
||
|
61414C
|
61414C
61414-28060 Reinforcement, Rocker Panel, No.2 Lh[01.2014 -] ZRR8#,ZWR80 |
61414-28060 |
US $116.92 |
||
|
61419A
|
61419A
61419-28030 Reinforcement, Rocker Panel, Lh[01.2014 -] ZRR8#,ZWR80 |
61419-28030 |
US $23.88 |
||
|
61492C
|
61492C
61492-28030 Plate, No.3 Lower Rail, Inner Lh[01.2014 -] ZRR8#,ZWR80 |
61492-28030 |
US $26.14 |
||
|
61504A
|
61504A
61504-28120 Reinforce Sub-Assy, Slide Door Lock Striker, Lh[01.2014 -] ZRR8#,ZWR80 |
61504-28120 |
US $36.02 |
||
|
61516
|
61516
61516-28070 Extension, Quarter Lock Pillar, Lh[01.2014 -] ZRR8#,ZWR80 |
61516-28070 |
US $31.92 |
||
|
61526
|
61526
61078-28140 Reinforcement, Quarter Lock Piller, Upper Lh[01.2014 -] ZRR80..08S;ZRR85..CBU;ZRR85..08S..IV5;ZRR80,ZWR80..07S..CBU |
61078-28140 |
US $50.81 |
||
|
61528
|
61528
61528-28050 Reinforcement, Quarter Lock Piller, Lower Lh[01.2014 -] ZRR8#,ZWR80 |
61528-28050 |
US $74.78 |
||
|
61616F
|
61616F
61616-28101 Reinforcement, Rear Body Rear Side Panel, Lh[01.2014 -] ZRR8#,ZWR80 |
61616-28101 |
US $113.96 |
||
|
61622D
|
61622D
61622-28060 Trough, Back Door Opening, Lh[01.2014 -] ZRR8#,ZWR80 |
61622-28060 |
US $41.80 |
||
|
61626E
|
61626E
61626-28121 Extension, Quarter Panel, Inner Rear Lh[01.2014 -] ZRR8#,ZWR80 |
61626-28121 |
US $69.31 |
||
|
61628B
|
61628B
61628-28060 Extension, Quarter Panel, Upper Rear Lh[01.2014 -] ZRR8#,ZWR80 |
61628-28060 |
US $3.79 |
||
|
61629A
|
61629A
61629-28080 Reinforcement, Quarter Panel, Lh[01.2014 -] ZRR8#,ZWR80 |
61629-28080 |
US $8.15 |
||
|
61632A
|
61632A
61632-28080 Panel, Quarter Wheel House, Outer Lh[01.2014 -] ZRR8#,ZWR80 |
61632-28080 |
US $139.12 |
||
|
61634A
|
61634A
61634-28100 Panel, Quarter Wheel House, Inner Lh[01.2014 -] ZRR8#,ZWR80 |
61634-28100 |
US $78.62 |
||
|
61636F
|
61636F
61636-28020 Reinforcement, Quarter Panel, Upr Lh[01.2014 -] ZRR8#,ZWR80 |
61636-28020 |
US $4.37 |
||
|
61638B
|
61638B
61638-28030 Reinforcement, Rear Pillar, Inner Upper Lh[01.2014 -] ZRR8#,ZWR80 |
61638-28030 |
US $8.59 |
||
|
61642A
|
61642A
61642-28030 Retainer, Quarter Panel Step, No.1 Lh[01.2014 -] ZRR8#,ZWR80 |
61642-28030 |
US $15.84 |
||
|
61654C
|
61654C
61653-28070 Bracket, Deck Side Trim[01.2014 -] ZRR8#,ZWR80 |
61653-28070 |
US $2.62 |
||
|
61666B
|
61666B
61666-28050 Reinforce, Seat Belt Anchorage To Quarter Wheel House, Lh[01.2014 -] ZRR8#,ZWR80 |
61666-28050 |
US $12.32 |
||
|
61682A
|
61682A
61682-28100 Extension, Rear Wheel Opening, Lh[01.2014 -] ZRR80..(SI,ZS)..IV5;ZRR8#,ZWR80..G,GI,V,X,XI |
61682-28100 |
US $44.38 |
||
|
61718A
|
61718A
61718-28040 Reinforcement, Quarter Panel Extension, Lh[01.2014 -] ZRR8#,ZWR80 |
61718-28040 |
US $9.44 |
||
|
61724A
|
61724A
61724-28010 Reinforcement, Quarter Window Opening, Lh No.1[01.2014 -] ZRR8#,ZWR80 |
61724-28010 |
US $26.06 |
||
|
61724B
|
61724B
61729-28040 Reinforcement, Quarter Window Opening, No.2 Lh[01.2014 -] ZRR8#,ZWR80 |
61729-28040 |
US $23.15 |
||
|
61732B
|
61732B
61732-28110 Panel, Roof Side, Inner Lh[01.2014 -] ZRR8#,ZWR80 |
61732-28110 |
US $35.53 |
||
|
61734A
|
61734A
61734-28080 Panel, Roof Side, Inner Front Lh[01.2014 -] ZRR8#,ZWR80 |
61734-28080 |
US $59.26 |
||
|
61736A
|
61736A
61736-28070 Panel, Roof Side, Inner Rear Lh[01.2014 -] ZRR8#,ZWR80 |
61736-28070 |
US $57.76 |
||
|
61738B
|
61738B
61738-28030 Panel, Roof Side, Inner Lower Lh[01.2014 -] ZRR8#,ZWR80 |
61738-28030 |
US $47.32 |
||
|
61746A
|
61746A
61746-28090 Reinforcement, Back Door Opening, Lower Lh[01.2014 -] ZRR8#,ZWR80 |
61746-28090 |
US $56.85 |
||
|
61765A
|
61765A
61765-28110 Reinforcement, Seat Belt Anchor, No.2 Lh[01.2014 -] ZRR8#,ZWR80 |
61765-28110 |
US $28.12 |
||
|
61769E
|
61769E
61769-28040 Reinforcement, Belt Anchor To Quarter, Inner Lower Lh[01.2014 -] ZRR8#,ZWR80 |
61769-28040 |
US $12.48 |
||
|
61772B
|
61772B
61772-28080 Frame, Back Door Opening Upper Corner, Lh[01.2014 -] ZRR8#,ZWR80 |
61772-28080 |
US $60.65 |
||
|
61776D
|
61776D
61776-28130 Frame, Back Door Opening Side, Lh[01.2014 -] ZRR8#,ZWR80 |
61776-28130 |
US $27.08 |
||
|
61778J
|
61778J
61778-28020 Retainer, Back Door Side Stopper, Lh[01.2014 -] ZRR8#,ZWR80 |
61778-28020 |
US $16.11 |
||
|
61968
|
61968
61968-28060 Bracket, Rear Seat Leg, No.1 Lh[01.2014 -] ZRR8#,ZWR80 |
61968-28060 |
US $19.07 |
||
|
61969
|
61969
61969-28070 Bracket, Rear Seat Leg, No.2 Lh[01.2014 -] ZRR8#,ZWR80 |
61969-28070 |
US $16.02 |
||
|
62554B
|
62554B
62554-52010 Pad, Cowl Side Silencer, No.2[01.2014 -] ZRR8#,ZWR80 |
62554-52010 |
US $6.60 |
||
|
62554D
|
62554D
62939-28020 Pad, Pillar, No.3[01.2014 -] ZRR8#,ZWR80 |
62939-28020 |
US $3.03 |
||
|
63176C
|
63176C
63176-28060 Reinforcement, Back Door Hinge Female, Lh[01.2014 -] ZRR8#,ZWR80 |
63176-28060 |
US $34.65 |
||
|
64016
|
64016
64016-28030 Panel Sub-Assy, Back Corner, Inner Lh[01.2014 -] ZRR8#,ZWR80 |
64016-28030 |
US $18.05 |
||
|
64126D
|
64126D
64126-28050 Anchor, Pillar Seat Belt, Lh[01.2014 -] ZRR8#,ZWR80 |
64126-28050 |
US $8.15 |
||
|
68034
|
68034
68362-28070 Bracket Sub-Assy, Slide Door Rail, Lh[01.2014 - 03.2016] ZRR8#,ZWR80 |
68362-28070 |
US $8.01 |
||
| replacements | |||||
|
68034
|
68034
68362-28071 Bracket Sub-Assy, Slide Door Rail, Lh[01.2014 - 03.2016] ZRR8#,ZWR80 |
68362-28071 |
US $7.28 |
||
|
68034
|
68034
69419-28061 Stop, Slide Door Open, Lh[01.2014 - 03.2016] ZRR8#,ZWR80 |
69419-28061 |
US $6.70 |
||
|
68034
|
68034
68362-28071 Bracket Sub-Assy, Slide Door Rail, Lh[03.2016 -] ZRR8#,ZWR80 |
68362-28071 |
US $7.28 |
||
|
68982A
|
68982A
68982-28030 Retainer, Back Door Stay, Lh[01.2014 -] ZRR8#,ZWR80 |
68982-28030 |
US $6.05 |
||
|
5216116010
|
5216116010
52161-16010 Clip |
52161-16010 |
from US $1.68 |
||
| replacements | |||||
|
5216116010
|
5216116010
52161-0K040 Clip |
52161-0K040 |
from US $1.46 |
||
|
5216116010
|
5216116010
52161-02020 Clip |
52161-02020 |
US $5.27 |
||
|
7662828040
|
7662828040
76628-28040 Mudguard, Quarter Panel, Rear |
76628-28040 |
US $2.56 |
||
|
9011911041
|
9011911041
90119-11041 New Genuine Part |
90119-11041 |
US $1.60 |
||
|
9054110038
|
9054110038
90541-10038 Cushion, Back Door Stopper, No.2 |
90541-10038 |
from US $1.60 |
||
