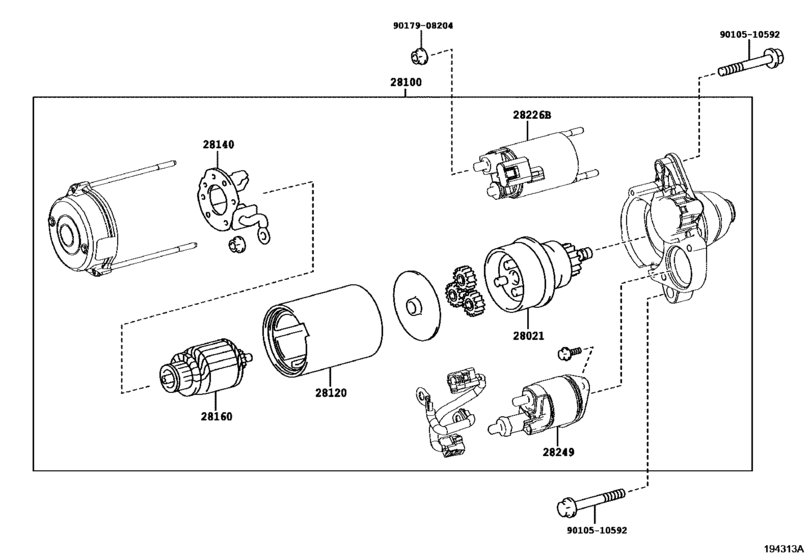

Starter ([01.2014 - ] 12V 1.7KW (1401- )3ZRFAE) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2014 - 2017
- Sales region
- Japan
- Frame
- ZRR80
- grade
- GI
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- Model
- ESQUIRE
- From
- 10.2014
- To
- 06.2017
- Seating Capacity
- 07S
- Vehicle Model
- ESQUIRE
- Fuel Induction
- HTWVM
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28021
|
28021
28021-21100 Clutch Sub-Assy, Starter Center Bearing[01.2014 -] 3ZRFAE..ZRR8# |
28021-21100 |
US $77.17 |
||
|
28100
|
28100
28100-37101 Starter Assy[08.2014 -] 3ZRFAE..ZRR8# １２Ｖ １．７ＫＷ |
28100-37101 |
US $1,000.63 |
||
|
28120
|
28120
28120-37100
Yoke Assy, Starter
[01.2014 -] 3ZRFAE..ZRR8# |
28120-37100 |
— | ||
|
28140
|
28140
28140-21100
Holder Assy, Starter Brush
[01.2014 -] 3ZRFAE..ZRR8# |
28140-21100 |
— | ||
|
28160
|
28160
28160-36110 Armature Assy, Starter[01.2017 -] 3ZRFAE..ZRR8# |
28160-36110 |
US $176.18 |
||
|
28160
|
28160
28160-37100 Armature Assy, Starter[03.2015 - 01.2017] 3ZRFAE..ZRR8# |
28160-37100 |
US $211.12 |
||
|
28160
|
28160
28160-38070
Armature Assy, Starter
[01.2014 - 03.2015] 3ZRFAE..ZRR8# |
28160-38070 |
— | ||
|
28226B
|
28226B
28226-37100
Starter Kit, Repair Service
[01.2014 -] 3ZRFAE..ZRR8# |
28226-37100 |
— | ||
|
28249
|
28249
28249-37100 Relay, Starter Inrush Current Reduction[01.2014 -] 3ZRFAE..ZRR8# |
28249-37100 |
US $97.84 |
||
|
9010510592
|
9010510592
90105-10592 New Genuine Part |
90105-10592 |
US $2.56 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
