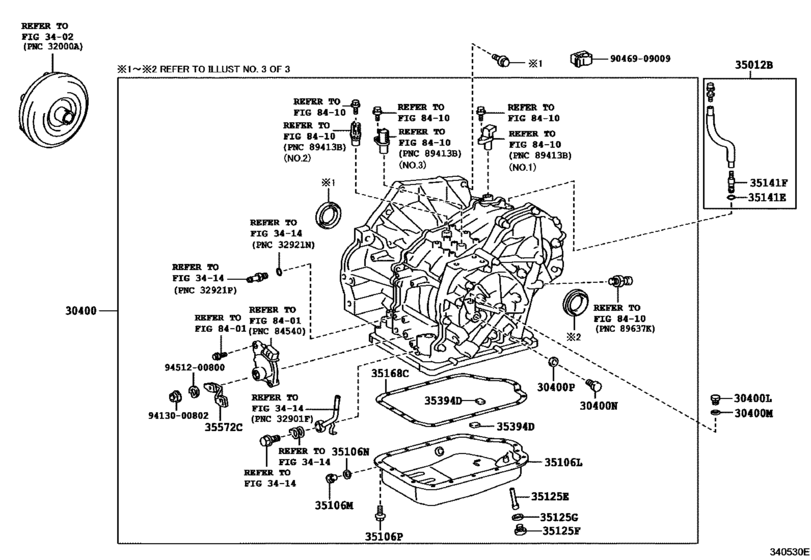

Transaxle Assy(Cvt) ([01.2014 - ] K114 (1401- )ZRR80) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2014 - 2017
- Sales region
- Japan
- Frame
- ZRR80
- grade
- GI
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- Model
- ESQUIRE
- From
- 10.2014
- To
- 06.2017
- Seating Capacity
- 07S
- Vehicle Model
- ESQUIRE
- Fuel Induction
- HTWVM
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30400
|
30400
30400-28081 Transaxle Assy, Continuously Variable[09.2014 -] ZRR80 Ｋ１１４ |
30400-28081 |
US $4,573.68 |
||
|
30400L
|
30400L
90341-12025 Plug, No.4[01.2014 - 06.2017] ZRR8# |
90341-12025 |
from US $3.04 |
||
|
30400M
|
30400M
90430-12221 Gasket[01.2014 - 06.2017] ZRR8# |
90430-12221 |
from US $1.07 |
||
|
30400N
|
30400N
90341-18077 Plug , Filler(CVT FE)[01.2014 - 06.2017] ZRR8# |
90341-18077 |
from US $3.04 |
||
|
30400P
|
30400P
90430-18008 Gasket[01.2014 - 06.2017] ZRR8# |
90430-18008 |
from US $0.99 |
||
| replacement | |||||
|
30400P
|
30400P
90430-T0021 Gasket(For Manual Transmission Filler Plug)[01.2014 - 06.2017] ZRR8# |
90430-T0021 |
US $0.99 |
||
|
35012B
|
35012B
35012-28030 Hose Sub-Assy, Transmission Breather[01.2014 -] ZRR8# |
35012-28030 |
US $22.65 |
||
|
35106L
|
35106L
35106-28100 Pan Sub-Assy, Transaxle Oil(Cvt)[01.2014 -] ZRR8# |
35106-28100 |
US $54.57 |
||
|
35106M
|
35106M
90341-18016 Plug, W/head Straight Screw(For Transaxle Housing & Case)[01.2014 - 06.2017] ZRR8# |
90341-18016 |
from US $1.89 |
||
|
35106N
|
35106N
90430-01001 Gasket, Drain Plug(Cvt)[01.2014 - 06.2017] ZRR8# |
90430-01001 |
US $0.96 |
||
|
35106P
|
35106P
90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting)[01.2014 -] ZRR8# |
90119-06173 |
from US $0.82 |
||
|
35125E
|
35125E
35125-28170 Tube, Transmission Oil Filler, No.1[01.2014 - 06.2017] ZRR8# |
35125-28170 |
US $2.88 |
||
|
35125F
|
35125F
90341-12034 Plug Sub-Assy, Drain (Atm)[01.2014 - 06.2017] ZRR8# |
90341-12034 |
from US $3.04 |
||
|
35125G
|
35125G
90430-12008 Gasket (For Shift Inter Lock Plate)[01.2014 - 06.2017] ZRR8# |
90430-12008 |
from US $0.88 |
||
|
35141E
|
35141E
90301-06021 Ring, O (For Breather Plug)[01.2014 -] ZRR8# |
90301-06021 |
US $2.24 |
||
|
35141F
|
35141F
90930-03157 Plug, Breather, No.2 (Atm)[01.2014 -] ZRR8# |
90930-03157 |
from US $4.16 |
||
|
35168C
|
35168C
35168-28020 Gasket, Transaxle Oil Pan(Cvt)[01.2014 -] ZRR8# |
35168-28020 |
US $6.56 |
||
|
35394D
|
35394D
35394-30011 Magnet, Oil Cleaner (For Transmission)[01.2014 -] ZRR8# |
35394-30011 |
from US $5.69 |
||
|
35572C
|
35572C
35572-28130 Lever, Transmission Control Shaft[01.2014 -] ZRR8# |
35572-28130 |
US $10.08 |
||
|
9046909009
|
9046909009
90469-09009 New Genuine Part |
90469-09009 |
US $3.36 |
||
|
9413000802
|
9413000802
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.94 |
||
| replacement | |||||
|
9413000802
|
9413000802
90170-A0001 New Genuine Part |
90170-A0001 |
US $1.59 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.76 |
||
