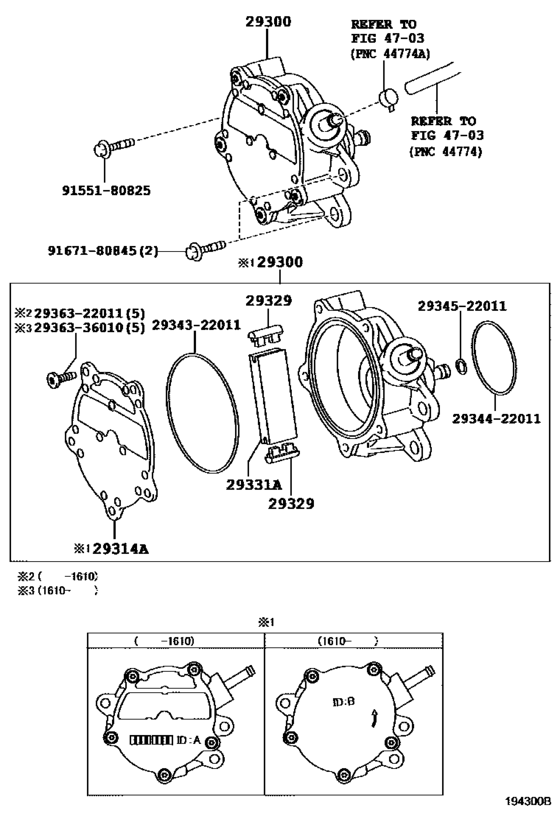

Vacuum Pump ([01.2014 - ] (1401- )3ZRFAE) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2014 - 2017
- Sales region
- Japan
- Frame
- ZRR80
- grade
- GI
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- Model
- ESQUIRE
- From
- 10.2014
- To
- 06.2017
- Seating Capacity
- 07S
- Vehicle Model
- ESQUIRE
- Fuel Induction
- HTWVM
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
29300
|
29300
29300-37010 Pump Assy, Vacuum[01.2014 - 08.2015] 3ZRFAE..ZRR8# マーク ＩＤ：Ａ |
29300-37010 |
US $451.36 |
||
|
29300
|
29300
29300-37011 Pump Assy, Vacuum[10.2016 -] 3ZRFAE..ZRR8# マーク ＩＤ：Ｂ |
29300-37011 |
US $213.12 |
||
|
29314A
|
29314A
29314-37010
Cover, End
[01.2014 - 08.2015] 3ZRFAE..ZRR8# |
29314-37010 |
— | ||
|
29314A
|
29314A
29314-37011
Cover, End
[10.2016 -] 3ZRFAE..ZRR8# マーク ＩＤ：Ｂ |
29314-37011 |
— | ||
|
29329
|
29329
29329-37010 Cap, Vacuum Pump Vane[01.2014 -] 3ZRFAE..ZRR8# |
29329-37010 |
US $3.20 |
||
|
29331A
|
29331A
29331-37010 Vane, Vacuum Pump[01.2014 -] 3ZRFAE..ZRR8# |
29331-37010 |
US $8.39 |
||
|
2934322011
|
2934322011
29343-22011 Ring, O Vacuum Pump, No.1 |
29343-22011 |
US $3.36 |
||
|
2934422011
|
2934422011
29344-22011 Ring, O Vacuum Pump, No.2 |
29344-22011 |
from US $1.33 |
||
|
2934522011
|
2934522011
29345-22011 Ring, O Vacuum Pump, No.3 |
29345-22011 |
US $2.08 |
||
|
2936322011
|
2936322011
29363-22011 New Genuine Part |
29363-22011 |
US $1.02 |
||
|
2936336010
|
2936336010
29363-36010
New Genuine Part
|
29363-36010 |
— | ||
| replacement | |||||
|
2936336010
|
2936336010
2936325010 Screw, Hollow Vacuum Pump |
2936325010 |
US $3.20 |
||
|
9155180825
|
9155180825
91551-80825 Bolt(For Cylinder Head Set Sub) |
91551-80825 |
from US $0.82 |
||
|
9167180845
|
9167180845
91671-80845 Bolt, No.2(For Alternator) |
91671-80845 |
US $0.87 |
||
