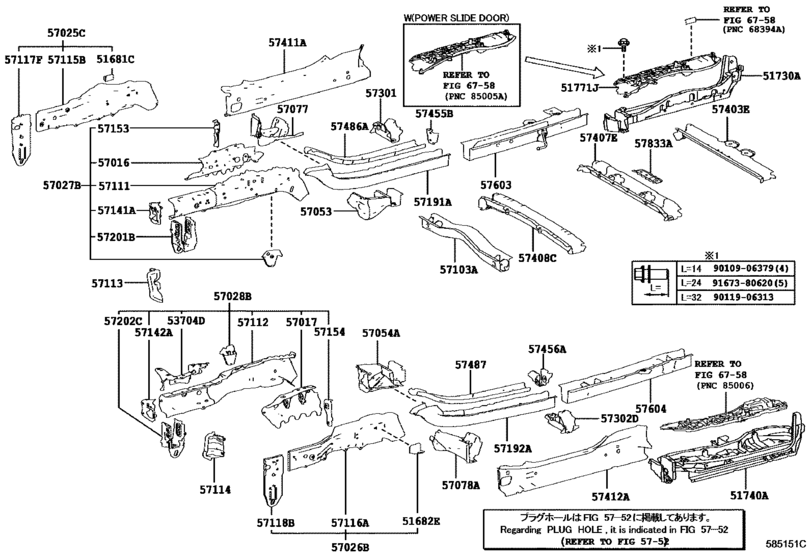

Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- )) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2014 - 2017
- Sales region
- General
- Frame
- ZRR80
- grade
- X
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- Model
- NOAH
- From
- 01.2014
- To
- 06.2017
- Seating Capacity
- 08S
- Vehicle Model
- NOAH
- Driver's Position
- RHD
- Fuel Induction
- HTWVM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51681C
|
51681C
51681-32050 Bracket, Flexible Hose[01.2014 -] ZRR80..NOAH |
51681-32050 |
US $7.86 |
||
|
51682E
|
51682E
51682-32040 Bracket, Flexible Hose, Lh[01.2014 -] ZRR80..NOAH |
51682-32040 |
US $8.01 |
||
|
51730A
|
51730A
51730-28180 Step Assy, Rear Floor, Rh[01.2014 -] ZRR80..NOAH |
51730-28180 |
US $165.98 |
||
|
51740A
|
51740A
51740-28180 Step Assy, Rear Floor, Lh[01.2014 -] ZRR80..NOAH |
51740-28180 |
US $165.98 |
||
|
51771J
|
51771J
51730-28160 Step, Rh[01.2014 -] ZRR80..X |
51730-28160 |
US $202.68 |
||
|
53704D
|
53704D
53704-28100 Support Sub-Assy, Battery, Lh[01.2014 -] ZRR80..NOAH |
53704-28100 |
US $33.49 |
||
|
57016
|
57016
57016-28110 Reinforcement Sub-Assy, Front Side Member, Rh[01.2014 -] ZRR80..NOAH |
57016-28110 |
US $58.24 |
||
|
57017
|
57017
57017-28090 Reinforcement Sub-Assy, Front Side Member, Lh[01.2014 -] ZRR80..NOAH |
57017-28090 |
US $55.33 |
||
|
57025C
|
57025C
57025-28050 Member Sub-Assy, Front Side, Outer Rh[01.2014 -] ZRR80..NOAH |
57025-28050 |
US $128.76 |
||
|
57026B
|
57026B
57026-28030 Member Sub-Assy, Front Side, Outer Lh[01.2014 -] ZRR80..NOAH |
57026-28030 |
US $128.76 |
||
|
57027B
|
57027B
57027-28030 Member Sub-Assy, Front Side, Inner Rh[01.2014 -] ZRR80..NOAH |
57027-28030 |
US $285.60 |
||
|
57028B
|
57028B
57028-28030 Member Sub-Assy, Front Side, Inner Lh[01.2014 -] ZRR80..NOAH |
57028-28030 |
US $285.60 |
||
|
57053
|
57053
57053-28030 Reinforcement Sub-Assy, Front Floor Cross Member, Rh[01.2014 -] ZRR80..NOAH |
57053-28030 |
US $59.84 |
||
|
57054A
|
57054A
57054-28020 Reinforcement Sub-Assy, Front Floor Cross Member, Lh[01.2014 -] ZRR80..NOAH |
57054-28020 |
US $59.84 |
||
|
57077
|
57077
57077-28030 Box Sub-Assy, Torque, Front Rh[01.2014 -] ZRR80..NOAH |
57077-28030 |
US $89.76 |
||
|
57078A
|
57078A
57078-28030 Box Sub-Assy, Torque, Front Lh[01.2014 -] ZRR80..NOAH |
57078-28030 |
US $89.76 |
||
|
57103A
|
57103A
57103-28050 Crossmenber Sub-Assy, Floor, No.3[01.2014 -] ZRR80..NOAH |
57103-28050 |
US $110.66 |
||
|
57111
|
57111
57111-28270 Member, Front Side, Rh[01.2014 -] ZRR80..NOAH |
57111-28270 |
US $148.24 |
||
|
57112
|
57112
57112-28250 Member, Front Side, Lh[01.2014 -] ZRR80..NOAH |
57112-28250 |
US $148.24 |
||
|
57113
|
57113
53287-28030 Extension, Front Side Member, Rh[01.2014 -] ZRR80..NOAH |
53287-28030 |
US $19.76 |
||
|
57114
|
57114
53288-28030 Extension, Front Side Member, Lh[01.2014 -] ZRR80..NOAH |
53288-28030 |
US $20.82 |
||
|
57115B
|
57115B
57115-44020 Plate, Front Side Member, Outer Rh[01.2014 -] ZRR80..NOAH |
57115-44020 |
US $91.08 |
||
|
57116A
|
57116A
57116-44020 Plate, Front Side Member, Outer Lh[01.2014 -] ZRR80..NOAH |
57116-44020 |
US $100.46 |
||
|
57117F
|
57117F
57117-28070 Plate Sub-Assy, Front Side Member, Front Rh[01.2014 -] ZRR80..NOAH |
57117-28070 |
US $46.97 |
||
|
57118B
|
57118B
57118-28040 Plate Sub-Assy, Front Side Member, Front Lh[01.2014 -] ZRR80..NOAH |
57118-28040 |
US $46.97 |
||
|
57141A
|
57141A
57141-28030 Support, Front Bumper Arm, Rh[01.2014 -] ZRR80..NOAH |
57141-28030 |
US $22.19 |
||
|
57142A
|
57142A
57142-28030 Support, Front Bumper Arm, Lh[01.2014 -] ZRR80..NOAH |
57142-28030 |
US $22.50 |
||
|
57153
|
57153
57153-28090 Reinforcement, Front Side Member, No.2 Rh[01.2014 -] ZRR80..NOAH |
57153-28090 |
US $9.76 |
||
|
57154
|
57154
57154-28060 Reinforcement, Front Side Member, No.2 Lh[01.2014 -] ZRR80..NOAH |
57154-28060 |
US $8.30 |
||
|
57191A
|
57191A
57191-28050 Member, Front Side, Inner Rear Rh[01.2014 -] ZRR80..NOAH |
57191-28050 |
US $158.70 |
||
|
57192A
|
57192A
57192-28040 Member, Front Side, Inner Rear Lh[01.2014 -] ZRR80..NOAH |
57192-28040 |
US $158.70 |
||
|
57201B
|
57201B
57201-28030 Extension Sub-Assy, Front Side Member, Rh[01.2014 -] ZRR80..NOAH |
57201-28030 |
US $41.19 |
||
|
57202C
|
57202C
57202-28030 Extension Sub-Assy, Front Side Member, Lh[01.2014 -] ZRR80..NOAH |
57202-28030 |
US $41.19 |
||
|
57301
|
57301
57301-28140 Outrigger Sub-Assy, No.1 Rh[01.2014 -] ZRR80..NOAH |
57301-28140 |
US $23.73 |
||
|
57302D
|
57302D
57302-28100 Outrigger Sub-Assy, No.1 Lh[01.2014 -] ZRR80..NOAH |
57302-28100 |
US $25.77 |
||
|
57403E
|
57403E
57403-28160 Member Sub-Assy, Center Floor Cross, No.3[01.2014 -] ZRR80..X |
57403-28160 |
US $110.66 |
||
|
57407E
|
57407E
57407-28020 Member Sub-Assy, Center Floor Cross[01.2014 -] ZRR80..NOAH |
57407-28020 |
US $179.09 |
||
|
57408C
|
57408C
57408-28170 Member Sub-Assy, Front Floor Cross[01.2014 - 05.2016] ZRR80..NOAH |
57408-28170 |
US $122.30 |
||
| replacements | |||||
|
57408C
|
57408C
57408-28180 Member Sub-Assy, Front Floor Cross[01.2014 - 05.2016] ZRR80..NOAH |
57408-28180 |
US $110.66 |
||
|
57408C
|
57408C
57408-28190 Member Sub-Assy, Front Floor Cross[01.2014 - 05.2016] ZRR80..NOAH |
57408-28190 |
US $110.66 |
||
|
57408C
|
57408C
57408-28190 Member Sub-Assy, Front Floor Cross[05.2016 -] ZRR80..NOAH |
57408-28190 |
US $110.66 |
||
|
57411A
|
57411A
57411-28050 Member, Floor Side, Inner Rh[01.2014 -] ZRR80..NOAH |
57411-28050 |
US $106.29 |
||
|
57412A
|
57412A
57412-28060 Member, Floor Side, Inner Lh[01.2014 -] ZRR80..NOAH |
57412-28060 |
US $106.29 |
||
|
57455B
|
57455B
57455-28050 Gusset, Front Floor Crossmember, Rh[01.2014 -] ZRR80..NOAH |
57455-28050 |
US $11.07 |
||
|
57456A
|
57456A
57456-28040 Gusset, Front Floor Crossmember, Lh[01.2014 -] ZRR80..NOAH |
57456-28040 |
US $17.62 |
||
|
57486A
|
57486A
57127-28120 Reinforcement, Floor Side Member, No.1 Rh[01.2014 -] ZRR80..NOAH |
57127-28120 |
US $59.55 |
||
|
57487
|
57487
57128-28090 Reinforcement, Floor Side Member, No.1 Lh[01.2014 -] ZRR80..NOAH |
57128-28090 |
US $55.33 |
||
|
57603
|
57603
57603-28130 Member Sub-Assy, Rear Floor Side, Front Rh[01.2014 -] ZRR80..NOAH |
57603-28130 |
US $187.82 |
||
|
57604
|
57604
57604-28100 Member Sub-Assy, Rear Floor Side, Front Lh[01.2014 -] ZRR80..NOAH |
57604-28100 |
US $149.97 |
||
|
57833A
|
57833A
57833-28030 Reinforcement, Rear No.1 Seat Leg, Front No.3[01.2014 -] ZRR80..NOAH |
57833-28030 |
US $22.86 |
||
|
9010906379
|
9010906379
90109-06379 New Genuine Part |
90109-06379 |
US $0.96 |
||
|
9011906313
|
9011906313
90119-06313 New Genuine Part |
90119-06313 |
US $1.60 |
||
|
9167380620
|
9167380620
91673-80620 Bolt |
91673-80620 |
US $0.96 |
||
