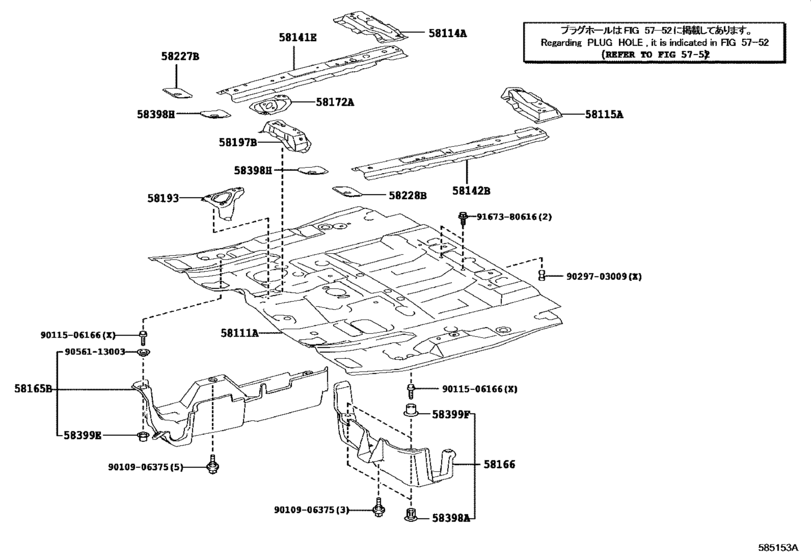

Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR PANEL (1401- )) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2014 - 2017
- Sales region
- General
- Frame
- ZRR80
- grade
- X
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- Model
- NOAH
- From
- 01.2014
- To
- 06.2017
- Seating Capacity
- 08S
- Vehicle Model
- NOAH
- Driver's Position
- RHD
- Fuel Induction
- HTWVM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58111A
|
58111A
58111-2J140 Pan, Front Floor, Rh[01.2014 - 03.2017] ZRR80 |
58111-2J140 |
US $315.95 |
||
|
58111A
|
58111A
58111-2J141 Pan, Front Floor, Rh[03.2017 - 06.2017] ZRR80 |
58111-2J141 |
US $315.95 |
||
|
58114A
|
58114A
58114-28050 Reinforcement, Front Floor Panel[01.2014 - 06.2017] ZRR80 |
58114-28050 |
US $32.91 |
||
|
58115A
|
58115A
58115-28070 Reinforcement, Front Floor Panel[01.2014 - 03.2017] ZRR80 |
58115-28070 |
US $32.91 |
||
|
58141E
|
58141E
58141-28010 Reinforcement, Front Side Member To Floor Pan, Rh[01.2014 - 06.2017] ZRR80 |
58141-28010 |
US $87.36 |
||
|
58142B
|
58142B
58142-28010 Reinforcemnt, Front Side Member To Floor Pan, Lh[01.2014 - 03.2017] ZRR80 |
58142-28010 |
US $74.26 |
||
|
58165B
|
58165B
58165-28040 Cover, Front Floor, Rh[01.2014 -] ZRR80..NOAH |
58165-28040 |
US $91.76 |
||
|
58166
|
58166
58166-28020 Cover, Front Floor, Lh[01.2014 -] ZRR80..NOAH |
58166-28020 |
US $75.70 |
||
|
58172A
|
58172A
58172-28070 Plate, Parking Brake Mounting[01.2014 - 06.2017] ZRR80 |
58172-28070 |
US $13.83 |
||
|
58193
|
58193
58194-28020 Bracket, Instrument Panel Brace Mounting[01.2014 - 03.2017] ZRR80 |
58194-28020 |
US $17.18 |
||
|
58197B
|
58197B
58197-28040 Retainer, Instrument Panel Brace Mounting Bracket[01.2014 - 03.2017] ZRR80 |
58197-28040 |
US $21.99 |
||
|
58227B
|
58227B
58227-28080 Plate, Front Floor Panel Side, Rh[01.2014 -] ZRR80..NOAH |
58227-28080 |
US $6.70 |
||
|
58228B
|
58228B
58227-28080 Plate, Front Floor Panel Side, Rh[01.2014 -] ZRR80..NOAH |
58227-28080 |
US $6.70 |
||
|
58398A
|
58398A
90467-17027-C0 Clip, No.2(For Front Fender Seal)[01.2014 -] ZRR80..NOAH BLACK |
90467-17027-C0 |
from US $1.29 |
||
|
58398H
|
58398H
58398-28110 Cover, Floor Under, No.1[01.2014 -] ZRR80..NOAH |
58398-28110 |
US $6.26 |
||
|
58399E
|
58399E
90467-14053 Clip, No.1(For Floor Under Cover)[01.2014 -] ZRR80..NOAH |
90467-14053 |
US $1.60 |
||
|
58399F
|
58399F
90467-17026-A0 Clip, No.1(For Front Fender Seal)[01.2014 -] ZRR80..NOAH SUPER WHITE 2 |
90467-17026-A0 |
from US $1.09 |
||
|
9010906375
|
9010906375
90109-06375 BOLT |
90109-06375 |
from US $0.94 |
||
|
9011506166
|
9011506166
90115-06166 Bolt, Weld(For Front Floor Pan) |
90115-06166 |
from US $0.98 |
||
|
9029703009
|
9029703009
90297-03009 New Genuine Part |
90297-03009 |
US $0.29 |
||
|
9056113003
|
9056113003
90561-13003 Clip, No.4(For Floor Under Cover) |
90561-13003 |
US $1.12 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
