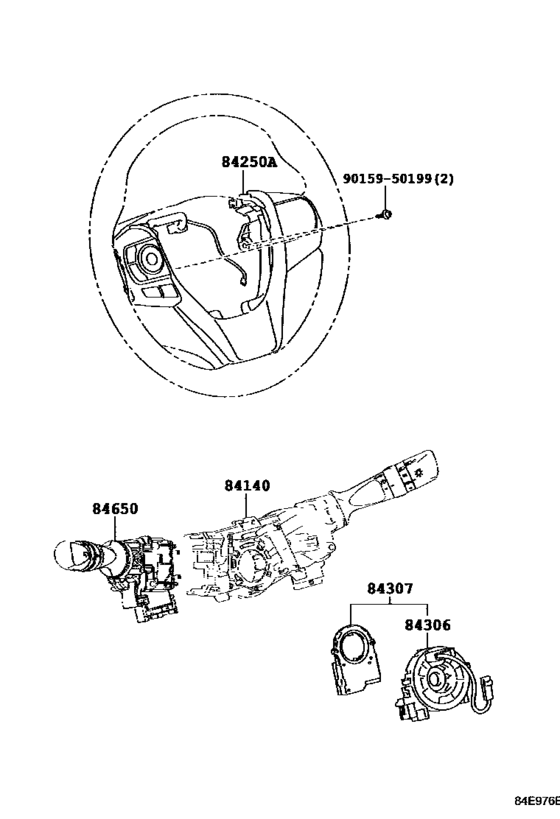

Switch & Relay & Computer ([01.2014 - ] STEERING (1401- )) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2014 - 2017
- Sales region
- General
- Frame
- ZRR80
- grade
- X
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- Model
- NOAH
- From
- 01.2014
- To
- 06.2017
- Seating Capacity
- 08S
- Vehicle Model
- NOAH
- Driver's Position
- RHD
- Fuel Induction
- HTWVM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84140
|
84140
84140-33230 Switch Assy, Headlamp Dimmer[01.2014 - 01.2015] ZRR80..NOAH |
84140-33230 |
US $133.20 |
||
|
84140
|
84140
84140-33231 Switch Assy, Headlamp Dimmer[02.2015 -] ZRR80..NOAH |
84140-33231 |
US $111 |
||
|
84250A
|
84250A
84250-28330 Switch Assy, Steering Pad[01.2014 -] ZRR80..NOAH |
84250-28330 |
US $226.08 |
||
|
84306
|
84306
84308-12010 Cable Sub-Assy, Spiral[01.2014 - 10.2015] ZRR80..NOAH |
84308-12010 |
from US $247.68 |
||
|
84306
|
84306
84308-28010 Cable Sub-Assy, Spiral[10.2015 -] ZRR80..NOAH |
84308-28010 |
US $161.62 |
||
|
84307
|
84307
84307-12100 Cable Sub-Assy, Spiral W/sensor[01.2014 - 10.2015] ZRR80..NOAH |
84307-12100 |
from US $349.60 |
||
|
84307
|
84307
84307-28050 Cable Sub-Assy, Spiral W/sensor[10.2015 -] ZRR80..NOAH |
84307-28050 |
US $392 |
||
|
84650
|
84650
84652-28700 Switch Assy, Windshield Wiper[01.2014 - 07.2014] ZRR80..NOAH |
84652-28700 |
US $107.74 |
||
| replacement | |||||
|
84650
|
84650
84652-28702 Switch Assy, Windshield Wiper[01.2014 - 07.2014] ZRR80..NOAH |
84652-28702 |
US $118.40 |
||
|
84650
|
84650
84652-28701 Switch Assy, Windshield Wiper[08.2014 - 03.2015] ZRR80..NOAH |
84652-28701 |
US $107.74 |
||
| replacement | |||||
|
84650
|
84650
84652-28702 Switch Assy, Windshield Wiper[08.2014 - 03.2015] ZRR80..NOAH |
84652-28702 |
US $118.40 |
||
|
84650
|
84650
84652-28702 Switch Assy, Windshield Wiper[04.2015 -] ZRR80..NOAH |
84652-28702 |
US $118.40 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.80 |
||
