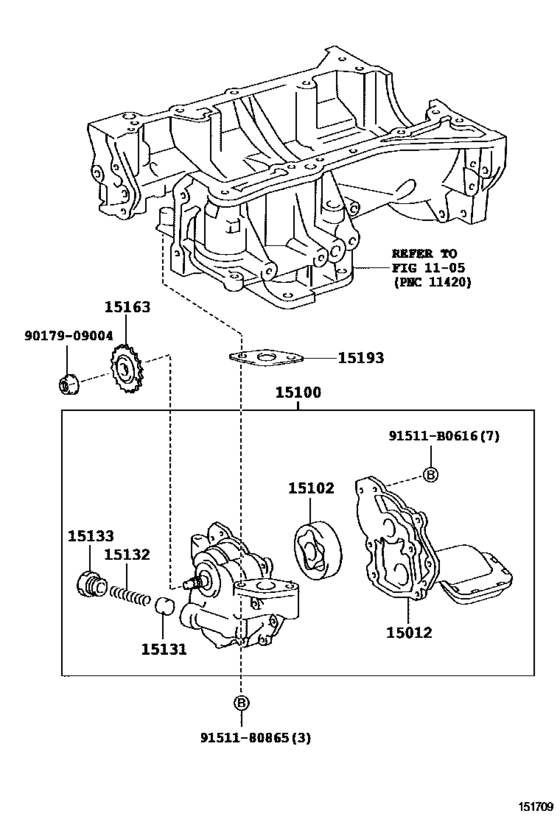

Engine Oil Pump ([08.2000 - 05.2002] (0008-0205)1AZFSE) Diagram Toyota OPA
- Year
- 2000 - 2005
- Sales region
- Japan
- Frame
- ACT10
- grade
- I
- ENGINE
- 1AZFSE
- Model
- OPA
- From
- 08.2000
- To
- 04.2005
- Gear Shift Type
- CVHC
- Vehicle Model
- OPA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15012
|
15012
15012-28030 Cover Sub-Assy, Oil Pump[08.2000 - 05.2002] 1AZFSE..ACT10 |
15012-28030 |
US $56.35 |
||
|
15100
|
15100
15100-28030 Pump Assy, Oil[08.2000 - 05.2002] 1AZFSE..ACT10 |
15100-28030 |
from US $102.84 |
||
|
15102
|
15102
15102-28030 Rotor Set, Oil Pump[08.2000 - 05.2002] 1AZFSE..ACT10 |
15102-28030 |
US $68.58 |
||
|
15131
|
15131
15131-46040 Valve, Oil Pump Relief[08.2000 - 05.2002] 1AZFSE..ACT10 |
15131-46040 |
from US $3.10 |
||
|
15132
|
15132
15132-28020 Spring, Oil Pump Relief Valve[08.2000 - 05.2002] 1AZFSE..ACT10 |
15132-28020 |
US $3.93 |
||
|
15132
|
15132
15132-46020 Spring, Oil Pump Relief Valve[05.2005 -] 1AZFSE..ACT10 |
15132-46020 |
from US $1.52 |
||
|
15133
|
15133
15133-28020 Plug, Oil Pump Relief Valve[08.2000 - 05.2002] 1AZFSE..ACT10 |
15133-28020 |
from US $3.67 |
||
|
15163
|
15163
15163-28010 Gear, Oil Pump Drive Shaft[08.2000 - 05.2002] 1AZFSE..ACT10 |
15163-28010 |
from US $4.33 |
||
|
15193
|
15193
15193-28010 Gasket, Oil Pump[08.2000 - 05.2002] 1AZFSE..ACT10 |
15193-28010 |
from US $5.44 |
||
|
91511B0616
|
91511B0616
91511-B0616 BOLT, FLANGE |
91511-B0616 |
from US $1.76 |
||
| replacement | |||||
|
91511B0616
|
91511B0616
90080-10164 BOLT, FLANGE |
90080-10164 |
US $2.67 |
||
|
9017909004
|
9017909004
90179-09004 NUT |
90179-09004 |
US $1.44 |
||
|
9151180865
|
9151180865
91511-80865 Bolt(For Cylinder Head Set Sub) |
91511-80865 |
US $0.87 |
||
