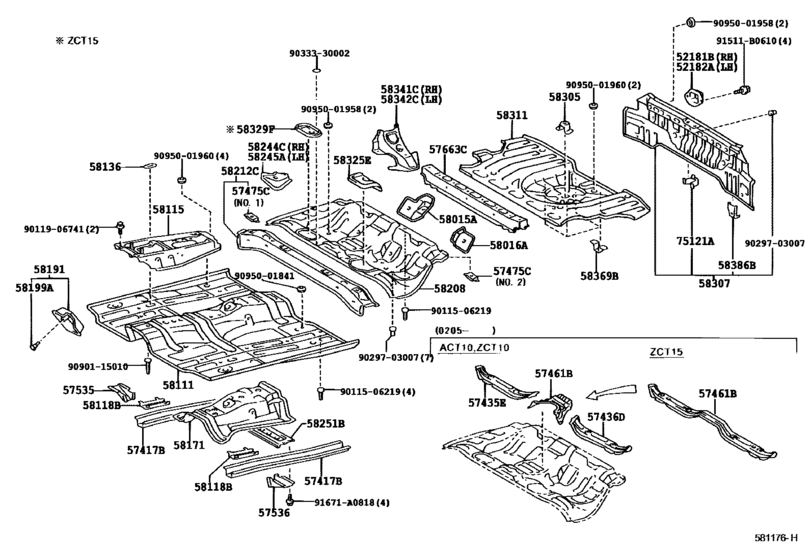

Floor Pan & Lower Back Panel ([04.2000 - ] (0004- )) Diagram Toyota OPA
- Year
- 2000 - 2005
- Sales region
- Japan
- Frame
- ACT10
- grade
- I
- ENGINE
- 1AZFSE
- Model
- OPA
- From
- 08.2000
- To
- 04.2005
- Gear Shift Type
- CVHC
- Vehicle Model
- OPA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52181B
|
52181B
52181-47010 Arm Sub-Assy, Rear Bumper, Rh[04.2000 - 05.2002] ACT10,ZCT1# |
52181-47010 |
US $24.75 |
||
|
52182A
|
52182A
52181-47010 Arm Sub-Assy, Rear Bumper, Rh[04.2000 - 05.2002] ACT10,ZCT1# |
52181-47010 |
US $24.75 |
||
|
57417B
|
57417B
57417-32050 Reinforcement, Front Floor Under[04.2000 - 05.2002] ACT10,ZCT1# |
57417-32050 |
US $75.71 |
||
|
57435E
|
57435E
57435-12010 Member, Center Floor Side, Rh[05.2002 -] ACT10,ZCT10 |
57435-12010 |
US $30.28 |
||
|
57436D
|
57436D
57436-12010 Member, Center Floor Side, Lh[05.2002 -] ACT10,ZCT10 |
57436-12010 |
US $30.28 |
||
|
57461B
|
57461B
57461-12130 Member Sub-Assy, Center Floor Cross, No.1[05.2002 -] ACT10,ZCT10 |
57461-12130 |
US $17.76 |
||
|
57475C
|
57475C
57475-32010 Plate, Front Floor Crossmember[08.2001 - 05.2002] ACT10,ZCT1# ＮＯ．１ |
57475-32010 |
US $2.04 |
||
|
57475C
|
57475C
57475-63010 Plate, Front Floor Crossmember[08.2001 - 05.2002] ACT10,ZCT1# ＮＯ．２ |
57475-63010 |
US $7.28 |
||
|
57535
|
57535
57535-32010 Brace, Front Floor, Rh[04.2000 - 05.2002] ACT10,ZCT1# |
57535-32010 |
US $28.54 |
||
|
57536
|
57536
57536-32010 Brace, Front Floor, Lh[04.2000 - 05.2002] ACT10,ZCT1# |
57536-32010 |
US $28.54 |
||
|
57663C
|
57663C
57663-63010 Member, Rear Floor Cross, Center[04.2000 - 05.2002] ACT10,ZCT1# |
57663-63010 |
US $74.26 |
||
|
58015A
|
58015A
58015-63010 Reinforce Sub-Assy, Belt Anchor, No.3 Rh[04.2000 - 05.2002] ACT10,ZCT1# |
58015-63010 |
US $38.44 |
||
|
58016A
|
58016A
58016-32040 Reinforce Sub-Assy, Belt Anchor, No.3 Lh[04.2000 - 05.2002] ACT10,ZCT1# |
58016-32040 |
US $27.81 |
||
|
58111
|
58111
58111-32902 Pan, Front Floor[05.2002 -] ACT10,ZCT10 |
58111-32902 |
US $612.98 |
||
|
58111
|
58111
58111-63901
Pan, Front Floor
[04.2000 - 01.2001] ACT10,ZCT10 |
58111-63901 |
— | ||
| replacements | |||||
|
58111
|
58111
57451-32071 Member, Front Floor Cross[04.2000 - 01.2001] ACT10,ZCT10 |
57451-32071 |
US $144.14 |
||
|
58111
|
58111
58111-63902 Pan, Front Floor[04.2000 - 01.2001] ACT10,ZCT10 |
58111-63902 |
US $612.98 |
||
|
58111
|
58111
58111-63902 Pan, Front Floor[01.2001 - 05.2002] ACT10,ZCT10 |
58111-63902 |
US $612.98 |
||
|
58115
|
58115
58115-32080 Reinforcement, Front Floor Panel, Front[04.2000 - 05.2002] ACT10,ZCT10 |
58115-32080 |
US $87.36 |
||
|
58118B
|
58118B
58118-32010 Reinforcement, Front Floor Panel, No.2[04.2000 - 05.2002] ACT10,ZCT1# |
58118-32010 |
US $18.20 |
||
|
58136
|
58136
58136-33010 Cover, Front Floor Hole[04.2000 - 05.2002] ACT10,ZCT1# |
58136-33010 |
US $3.06 |
||
|
58171
|
58171
58107-63020 Reinforcement, Parking Brake Base[04.2000 - 05.2002] ACT10,ZCT10 |
58107-63020 |
US $209.66 |
||
|
58191
|
58191
58191-63010 Footrest, Front Floor[04.2000 - 03.2001] ACT10,ZCT1# |
58191-63010 |
US $53.14 |
||
| replacement | |||||
|
58191
|
58191
58191-63020 Footrest, Front Floor[04.2000 - 03.2001] ACT10,ZCT1# |
58191-63020 |
US $53.29 |
||
|
58191
|
58191
58191-63020 Footrest, Front Floor[03.2001 - 05.2002] ACT10,ZCT1# |
58191-63020 |
US $53.29 |
||
|
58199A
|
58199A
58199-20050 Clip, Footrest, No.1[04.2000 - 05.2002] ACT10,ZCT1# |
58199-20050 |
US $3.20 |
||
|
58208
|
58208
58211-63900 Pan, Center Floor[04.2000 - 05.2002] ACT10,ZCT10 |
58211-63900 |
US $315.95 |
||
|
58212C
|
58212C
58202-63010 Pan, Center Floor, Front[04.2000 - 05.2002] ACT10,ZCT1# |
58202-63010 |
US $122.30 |
||
| replacement | |||||
|
58212C
|
58212C
58202-63011 Pan, Center Floor, Front[04.2000 - 05.2002] ACT10,ZCT1# |
58202-63011 |
US $120.85 |
||
|
58212C
|
58212C
58202-63011 Pan, Center Floor, Front[05.2002 -] ACT10,ZCT1# |
58202-63011 |
US $120.85 |
||
|
58244C
|
58244C
58244-32010 Bracket, Rear Seat Cushion Mounting, Rh[04.2000 - 05.2002] ACT10,ZCT1# |
58244-32010 |
US $17.91 |
||
|
58244C
|
58244C
58244-63010 Bracket, Rear Seat Cushion Mounting, Rh[05.2002 -] ACT10,ZCT1# |
58244-63010 |
US $17.91 |
||
|
58245A
|
58245A
58245-32010 Bracket, Rear Seat Hinge, Center No.1[04.2000 - 05.2002] ACT10,ZCT1# |
58245-32010 |
US $17.91 |
||
|
58245A
|
58245A
58245-63010 Bracket, Rear Seat Hinge, Center No.1[05.2002 -] ACT10,ZCT1# |
58245-63010 |
US $17.91 |
||
|
58251B
|
58251B
58251-32010 Brace, Floor Panel, Front[04.2000 - 05.2002] ACT10,ZCT10 |
58251-32010 |
US $18.92 |
||
|
58305
|
58305
58351-33010 Bracket Sub-Assy, Spare Wheel Clamp[04.2000 - 05.2002] ACT10,ZCT1# |
58351-33010 |
US $6.56 |
||
|
58307
|
58307
58307-63010 Panel Sub-Assy, Body Lower Back[04.2000 - 05.2002] ACT10,ZCT1# |
58307-63010 |
US $267.90 |
||
|
58311
|
58311
58311-63010 Pan, Rear Floor[04.2000 - 05.2002] ACT10,ZCT1# |
58311-63010 |
US $382.93 |
||
| replacement | |||||
|
58311
|
58311
58311-63011
Pan, Rear Floor
[04.2000 - 05.2002] ACT10,ZCT1# |
58311-63011 |
— | ||
|
58311
|
58311
58311-63011
Pan, Rear Floor
[02.2004 -] ACT10,ZCT1# |
58311-63011 |
— | ||
|
58325E
|
58325E
58325-32040 Cover, Rear Floor Service Hole[04.2000 - 05.2002] ACT10,ZCT10 |
58325-32040 |
US $12.52 |
||
|
58341C
|
58341C
58341-32030 Bracket, Rear Absorber Mounting, No.1 Rh[04.2000 - 05.2002] ACT10,ZCT10 |
58341-32030 |
US $62.90 |
||
|
58342C
|
58342C
58342-32030 Bracket, Rear Absorber Mounting, No.1 Lh[04.2000 - 05.2002] ACT10,ZCT10 |
58342-32030 |
US $62.90 |
||
|
58369B
|
58369B
58369-20020 Bracket, Center Floor Heat Insulator[04.2000 - 05.2002] ACT10,ZCT1# |
58369-20020 |
US $2.91 |
||
|
58386B
|
58386B
58386-63010
Bracket, Rear Bumper Cover, No.2
[04.2000 - 05.2002] ACT10,ZCT1# |
58386-63010 |
— | ||
|
75121A
|
75121A
75121-63010 Bracket, Rear License Plate[04.2000 - 05.2002] ACT10,ZCT1# |
75121-63010 |
US $5.97 |
||
|
91511B0610
|
91511B0610
91511-B0610 BOLT FLANGE |
91511-B0610 |
US $1.76 |
||
|
91671A0818
|
91671A0818
91671-A0818 New Genuine Part |
91671-A0818 |
US $0.96 |
||
|
9011506219
|
9011506219
90115-06219 Bolt, Weld(For Front Floor Pan, Lh) |
90115-06219 |
US $1.28 |
||
|
9011906741
|
9011906741
90119-06741 New Genuine Part |
90119-06741 |
US $1.28 |
||
|
9029703007
|
9029703007
90297-03007 Retainer, Rear Heater Mounting |
90297-03007 |
US $0.73 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
from US $1.05 |
||
|
9090115010
|
9090115010
90901-15010 New Genuine Part |
90901-15010 |
US $4.95 |
||
|
9095001841
|
9095001841
90950-01841 Direct |
90950-01841 |
from US $0.92 |
||
|
9095001958
|
9095001958
90950-01958 Plug, Hole(For Back Door Panel) |
90950-01958 |
from US $1.92 |
||
|
9095001960
|
9095001960
90950-01960 Plug, Hole(For Floor Panel) |
90950-01960 |
from US $1.92 |
||
