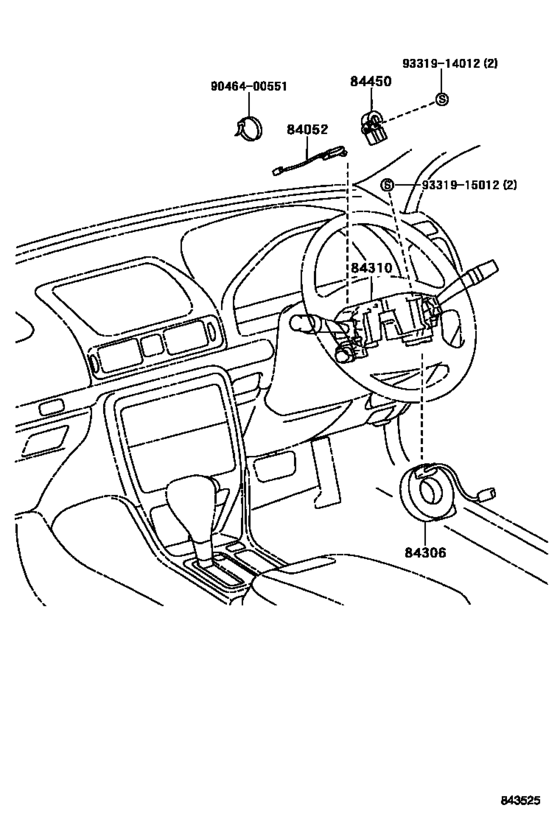

Switch & Relay & Computer ([08.2000 - ] ｲｸﾞﾆﾂｼﾖﾝ & ｺﾝﾋﾞﾈ-ｼﾖﾝ ｽｲﾂﾁ (0008- )) Diagram Toyota ORIGIN
- Year
- 2000 - 2001
- Sales region
- Japan
- Frame
- JCG17
- body
- SED
- ENGINE
- 2JZGE
- From
- 08.2000
- To
- 04.2001
- Vehicle Model
- ORIGIN
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84052
|
84052
84052-22050 Switch Assy, Un-Lock Warning[08.2000 -] JCG17 |
84052-22050 |
from US $14.26 |
||
|
84306
|
84306
84306-51040
Cable Sub-Assy, Spiral
[08.2000 -] JCG17 |
84306-51040 |
— | ||
| replacement | |||||
|
84306
|
84306
84306-51030 Cable Sub-Assy, Spiral[08.2000 -] JCG17 |
84306-51030 |
from US $266.51 |
||
|
84310
|
84310
84310-51010 Switch Assy, Turn Signal[08.2000 -] JCG17 |
84310-51010 |
US $454.27 |
||
| replacement | |||||
|
84310
|
84310
84310-51030 Switch Assy, Turn Signal[08.2000 -] JCG17 |
84310-51030 |
US $361.09 |
||
|
84450
|
84450
84450-12200 Switch Assy, Ignition Or Starter[08.2000 -] JCG17 |
84450-12200 |
from US $49.25 |
||
|
9046400551
|
9046400551
90464-00551 New Genuine Part |
90464-00551 |
US $1.79 |
||
|
9331914012
|
9331914012
93319-14012 New Genuine Part |
93319-14012 |
US $1.12 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.12 |
||
