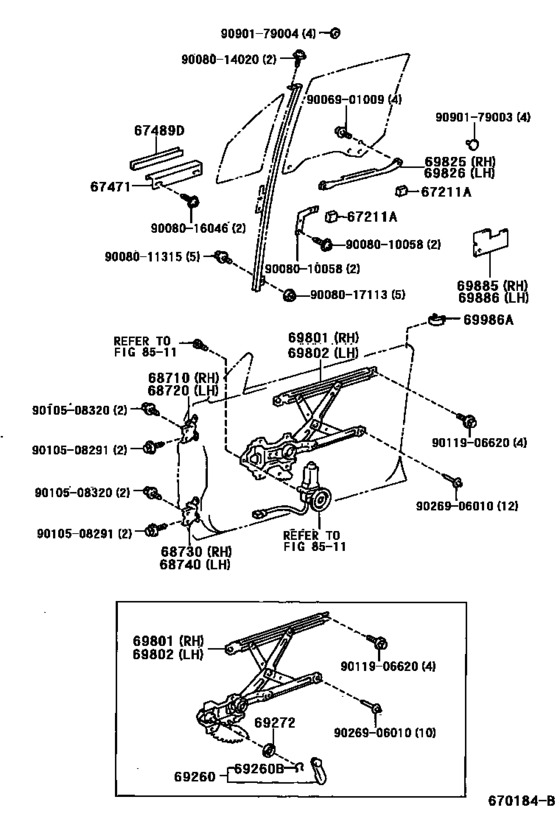

Front Door Window Regulator & Hinge ([09.1996 - ] (9609- )CVT) Diagram Toyota PASEO
- Year
- 1996 - 1999
- Sales region
- Europe
- Frame
- EL54
- body
- CVT
- ENGINE
- 5EFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- PASEO
- From
- 09.1996
- To
- 03.1999
- Vehicle Model
- PASEO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67211A
|
67211A
67211-0W010 Stop, Front Door Window, Upper[09.1996 -] EL54..CVT RH |
67211-0W010 |
US $6.99 |
||
|
67211A
|
67211A
67212-0W010 Stop, Front Door Window, Upper[09.1996 -] EL54..CVT |
67212-0W010 |
US $7.72 |
||
|
67211A
|
67211A
67221-0W010 Stop, Front Door Window, Upper[09.1996 -] EL54..CVT LH |
67221-0W010 |
US $6.99 |
||
|
67471
|
67471
67471-0W010 Bracket, Front Door Window, Front Upper[09.1996 -] EL54..CVT |
67471-0W010 |
US $17.76 |
||
|
67489D
|
67489D
67489-0W010 Gasket, Front Door Guide Bracket[09.1996 -] EL54..CVT |
67489-0W010 |
US $10.19 |
||
|
68710
|
68710
68710-16060
Hinge Assy, Front Door, Upper Rh
[08.1995 -] EL54 |
68710-16060 |
— | ||
| replacement | |||||
|
68710
|
68710
68710-60050 Hinge Assy, Front Door, Upper Rh[08.1995 -] EL54 |
68710-60050 |
US $49.70 |
||
|
68720
|
68720
68720-16060 Hinge Assy, Front Door, Upper Lh[08.1995 -] EL54 |
68720-16060 |
US $47.70 |
||
|
68730
|
68730
68720-16060 Hinge Assy, Front Door, Upper Lh[08.1995 -] EL54 |
68720-16060 |
US $47.70 |
||
|
68740
|
68740
68710-16060
Hinge Assy, Front Door, Upper Rh
[08.1995 -] EL54 |
68710-16060 |
— | ||
| replacement | |||||
|
68740
|
68740
68710-60050 Hinge Assy, Front Door, Upper Rh[08.1995 -] EL54 |
68710-60050 |
US $49.70 |
||
|
69260
|
69260
69260-20090-B1
Handle Assy, Front Door Window Regulator
[08.1995 -] EL54 SHADOW GRAY,TRIM1# |
69260-20090-B1 |
— | ||
| replacement | |||||
|
69260
|
69260
69260-20090-B4 Handle Assy, Front Door Window Regulator (DK.CHARCOAL)[08.1995 -] EL54 SHADOW GRAY,TRIM1# |
69260-20090-B4 |
US $21.84 |
||
|
69260B
|
69260B
90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle)[08.1995 -] EL54 |
90520-01274 |
from US $1.01 |
||
|
69272
|
69272
69268-20020
Plate, Window Regulator Handle
[08.1995 -] EL54 |
69268-20020 |
— | ||
| replacement | |||||
|
69272
|
69272
69285-22010-08 Escutcheon, Window Regulator Handle[08.1995 -] EL54 |
69285-22010-08 |
from US $1.85 |
||
|
69801
|
69801
69801-16080 Regulator Sub-Assy, Front Door Window, Rh[09.1996 -] EL54..CVT W(POWER WINDOW) |
69801-16080 |
US $84.45 |
||
|
69801
|
69801
69810-16220 Regulator Sub-Assy, Front Door Window, RhFRONT DOOR WINDOW, RH [09.1996 -] EL54..CVT |
69810-16220 |
US $385.84 |
||
|
69802
|
69802
69802-16080 Regulator Sub-Assy, Front Door Window, Lh[09.1996 -] EL54..CVT W(POWER WINDOW) |
69802-16080 |
US $84.45 |
||
|
69802
|
69802
69820-16220 Regulator Sub-Assy, Front Door Window, LhFRONT DOOR WINDOW, LH [09.1996 -] EL54..CVT |
69820-16220 |
US $385.84 |
||
|
69825
|
69825
69825-0W010 Reinforcement, Front Door Regulator, Rh[09.1996 -] EL54..CVT |
69825-0W010 |
US $57.66 |
||
|
69826
|
69826
69826-0W010 Reinforcement, Front Door Regulator, Lh[09.1996 -] EL54..CVT |
69826-0W010 |
US $57.66 |
||
|
69885
|
69885
69885-0W010 Plate, Door Window Regulator Lift Arm Bracket, Rh[09.1996 -] EL54..CVT |
69885-0W010 |
US $15.14 |
||
|
69886
|
69886
69886-0W010 Plate, Front Door Window Regulator Lift Arm Bracket, Lh[09.1996 -] EL54..CVT |
69886-0W010 |
US $15.14 |
||
|
69986A
|
69986A
69986-0W010 Piece, Front Door Glass Guide[09.1996 -] EL54..CVT |
69986-0W010 |
US $10.19 |
||
|
9006901009
|
9006901009
90069-01009 New Genuine Part |
90069-01009 |
US $4.37 |
||
|
9008010058
|
9008010058
90080-10058 New Genuine Part |
90080-10058 |
US $3.93 |
||
|
9008011315
|
9008011315
90080-11315 New Genuine Part |
90080-11315 |
US $3.20 |
||
|
9008014020
|
9008014020
90080-14020 New Genuine Part |
90080-14020 |
US $3.64 |
||
|
9008016046
|
9008016046
90080-16046
New Genuine Part
|
90080-16046 |
— | ||
| replacement | |||||
|
9008016046
|
9008016046
90080-10058 New Genuine Part |
90080-10058 |
US $3.93 |
||
|
9008017113
|
9008017113
90080-17113 New Genuine Part |
90080-17113 |
US $2.62 |
||
|
9010508291
|
9010508291
90105-08291 BOLT |
90105-08291 |
US $1.44 |
||
|
9010508320
|
9010508320
90105-08320 BOLT WASHER BASED |
90105-08320 |
US $1.44 |
||
|
9011906620
|
9011906620
90119-06620 BOLT WWASHER |
90119-06620 |
US $1.92 |
||
|
9026906010
|
9026906010
90269-06010 New Genuine Part |
90269-06010 |
US $3.32 |
||
|
9090179003
|
9090179003
90901-79003 New Genuine Part |
90901-79003 |
US $2.33 |
||
|
9090179004
|
9090179004
90901-79004 New Genuine Part |
90901-79004 |
US $3.49 |
||
