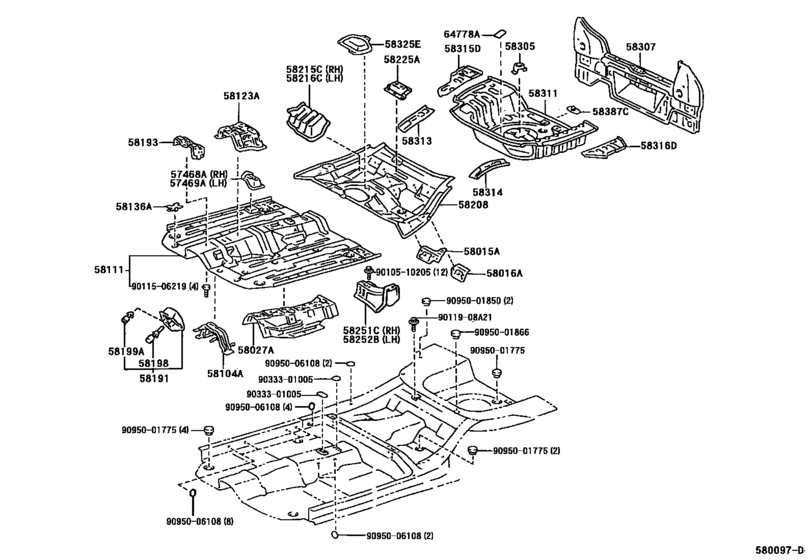

Floor Pan & Lower Back Panel ([09.1996 - ] (9609- )CVT) Diagram Toyota PASEO
- Year
- 1996 - 1999
- Sales region
- U.S.A.
- Frame
- EL54
- body
- CVT
- ENGINE
- 5EFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- PASEO
- From
- 09.1996
- To
- 03.1999
- Vehicle Model
- PASEO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57468A
|
57468A
57468-10030 Bracket, Front Seat, Outside, Rear Rh[08.1995 -] EL54 |
57468-10030 |
US $26.50 |
||
|
57469A
|
57469A
57469-10030 Bracket, Front Seat, Outside, Rear Lh[08.1995 -] EL54 |
57469-10030 |
US $26.50 |
||
|
58015A
|
58015A
58015-16050 Reinforce Sub-Assy, Belt Anchor, No.3 Rh[08.1995 -] EL54 |
58015-16050 |
US $24.61 |
||
|
58016A
|
58016A
58016-10020 Reinforce Sub-Assy, Belt Anchor, No.3 Lh[08.1995 -] EL54 |
58016-10020 |
US $20.09 |
||
|
58027A
|
58027A
58027-16091 Reinforce Sub-Assy, Seat Belt Anchor[08.1995 -] EL54 |
58027-16091 |
US $164.53 |
||
|
58104A
|
58104A
58104-16020 Bracket Sub-Assy, Catalytic Converter Support[08.1996 -] EL54 |
58104-16020 |
US $46.74 |
||
|
58111
|
58111
58111-16903 Pan, Front Floor[08.1996 -] EL54 |
58111-16903 |
US $856.13 |
||
|
58123A
|
58123A
58123-16050 Support, Shift & Select Lever[09.1996 -] EL54..CVT |
58123-16050 |
US $71.64 |
||
|
58136A
|
58136A
58136-12030 Cover, Front Floor Hole[08.1995 -] EL54 |
58136-12030 |
US $3.35 |
||
|
58191
|
58191
58191-16060
Footrest, Front Floor
[02.1998 -] EL54 |
58191-16060 |
— | ||
|
58193
|
58193
58193-16040 Bracket, Instrument Panel Brace Mounting[08.1995 - 12.1997] EL54 |
58193-16040 |
US $24.17 |
||
|
58193
|
58193
58193-16060 Bracket, Instrument Panel Brace Mounting[02.1998 -] EL54 |
58193-16060 |
US $24.17 |
||
|
58198
|
58198
58198-16020 Clip, FootrestFOOTREST [02.1998 -] EL54 |
58198-16020 |
US $5.10 |
||
|
58199A
|
58199A
58199-16010 Clip, Footrest, No.2FOOTREST, NO.2 [02.1998 -] EL54 |
58199-16010 |
US $6.41 |
||
|
58208
|
58208
58211-16091 Pan, Center Floor[08.1995 -] EL54 |
58211-16091 |
US $254.80 |
||
|
58215C
|
58215C
58215-16030 Reinforcement, Center Floor Panel, No.2 Rh[09.1996 -] EL54..CVT |
58215-16030 |
US $65.81 |
||
|
58216C
|
58216C
58216-16030 Reinforcement, Center Floor Panel, No.2 Lh[09.1996 -] EL54..CVT |
58216-16030 |
US $65.81 |
||
|
58225A
|
58225A
58225-16020 Bracket, Center Mounting[09.1996 -] EL54..CVT |
58225-16020 |
US $28.25 |
||
|
58251C
|
58251C
58251-16020 Brace, Floor Panel, Front Rh[09.1996 -] EL54..CVT |
58251-16020 |
US $119.39 |
||
|
58252B
|
58252B
58252-16020 Brace, Floor Panel, Front Lh[09.1996 -] EL54..CVT |
58252-16020 |
US $119.39 |
||
|
58305
|
58305
58305-10011 Bracket Sub-Assy, Spare Wheel Clamp[08.1995 -] EL54 |
58305-10011 |
US $4.54 |
||
|
58307
|
58307
58307-16450 Panel Sub-Assy, Body Lower Back[08.1995 -] EL54 |
58307-16450 |
US $313.04 |
||
|
58311
|
58311
58311-10193
Pan, Rear Floor
[01.1996 -] EL54 |
58311-10193 |
— | ||
|
58313
|
58313
58313-16030 Panel, Rear Floor Side, Rh[08.1995 -] EL54 |
58313-16030 |
US $24.32 |
||
|
58314
|
58314
58314-16090 Panel, Rear Floor Side, Lh[08.1995 -] EL54 |
58314-16090 |
US $24.32 |
||
|
58315D
|
58315D
58315-16060 Extension, Rear Floor Pan, Rh[08.1995 -] EL54 |
58315-16060 |
US $24.46 |
||
|
58316D
|
58316D
58316-16080 Extension, Rear Floor Pan, Lh[08.1995 -] EL54 |
58316-16080 |
US $24.46 |
||
|
58325E
|
58325E
58031-16020 Cover, Rear Floor Service Hole[08.1995 -] EL54 |
58031-16020 |
US $28.39 |
||
|
58387C
|
58387C
58387-10010 Plate, Rear Floor Finish[08.1995 -] EL54 |
58387-10010 |
US $3.79 |
||
|
64778A
|
64778A
64778-16030 Protector, Spare Wheel[08.1995 - 08.1997] EL54 |
64778-16030 |
US $1.60 |
||
|
9011908A21
|
9011908A21
90119-08A21
Bolt
|
90119-08A21 |
— | ||
| replacement | |||||
|
9011908A21
|
9011908A21
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9010510205
|
9010510205
90105-10205 New Genuine Part |
90105-10205 |
US $1.89 |
||
|
9011506219
|
9011506219
90115-06219 Bolt, Weld(For Front Floor Pan, Lh) |
90115-06219 |
US $1.28 |
||
|
9033301005
|
9033301005
90333-01005 New Genuine Part |
90333-01005 |
US $5.28 |
||
|
9095001775
|
9095001775
90950-01775 PLUG HOLE |
90950-01775 |
US $2.08 |
||
|
9095001850
|
9095001850
90950-01850 PLUG HOLE |
90950-01850 |
US $0.64 |
||
|
9095001866
|
9095001866
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $1.92 |
||
|
9095006108
|
9095006108
90950-06108 COVER HOLE |
90950-06108 |
from US $0.80 |
||
