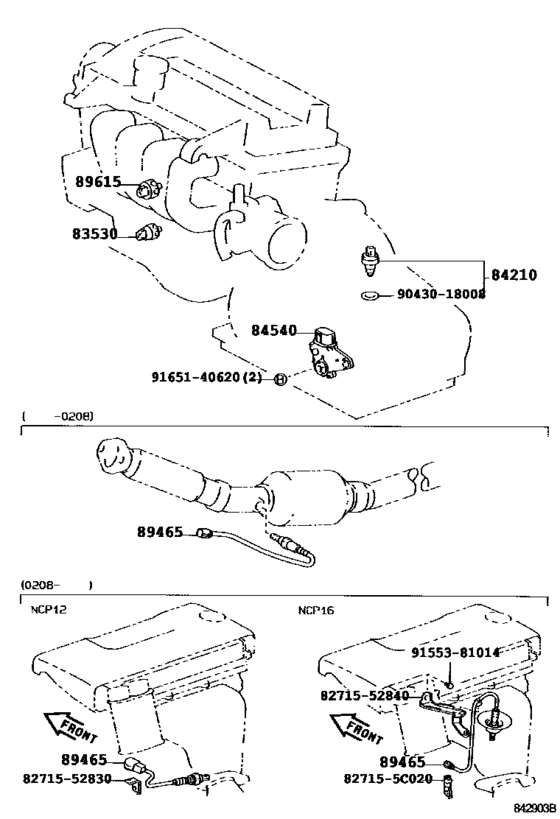

Switch & Relay & Computer ([08.1999 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ (9908- )NCP1#) Diagram Toyota PLATZ
- Year
- 1999 - 2005
- Sales region
- Japan
- Frame
- NCP12
- grade
- X
- ENGINE
- 1NZFE
- TRANSMISSION
- ATM
- From
- 08.1999
- To
- 11.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[08.1999 - 08.2002] NCP1#,SCP11 ＤＥＮＳＯ |
83530-28020 |
from US $26.60 |
||
| replacement | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [08.1999 - 08.2002] NCP1#,SCP11 ＤＥＮＳＯ |
83530-60020 |
from US $25.43 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [08.1999 - 08.2002] NCP1#,SCP11 ＹＡＺＡＫＩ |
83530-60020 |
from US $25.43 |
||
|
84540
|
84540
84540-52050 Switch Assy, Neutral Start[08.1999 - 08.2002] NCP12..ATM |
84540-52050 |
US $174.24 |
||
|
89465
|
89465
89465-20810 Sensor, Oxygen[08.2002 -] NCP12..ATM;NCP12..MTM..F |
89465-20810 |
US $149.76 |
||
|
89465
|
89465
89465-41060 Sensor, Oxygen[08.1999 - 08.2002] NCP12 |
89465-41060 |
US $154.08 |
||
|
89615
|
89615
89615-52030 Sensor, Knock Control[08.1999 - 07.2000] NCP12 |
89615-52030 |
from US $168.01 |
||
|
89615
|
89615
89615-52040 Sensor, Knock Control[07.2000 - 08.2000] NCP12 ＴＯＹＯＴＡ |
89615-52040 |
US $225.68 |
||
| replacement | |||||
|
89615
|
89615
89615-52030 Sensor, Knock Control[07.2000 - 08.2000] NCP12 ＴＯＹＯＴＡ |
89615-52030 |
from US $168.01 |
||
|
827155C020
|
827155C020
82715-5C020 Bracket,wiring Harness Clamp |
82715-5C020 |
US $4.51 |
||
|
8271552830
|
8271552830
82715-52830 Bracket,wiring Harness Clamp |
82715-52830 |
US $4.37 |
||
|
8271552840
|
8271552840
82715-52840 Bracket,wiring Harness Clamp |
82715-52840 |
US $8.01 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.99 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $0.99 |
||
|
9155381014
|
9155381014
91553-81014 New Genuine Part |
91553-81014 |
US $1.31 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
