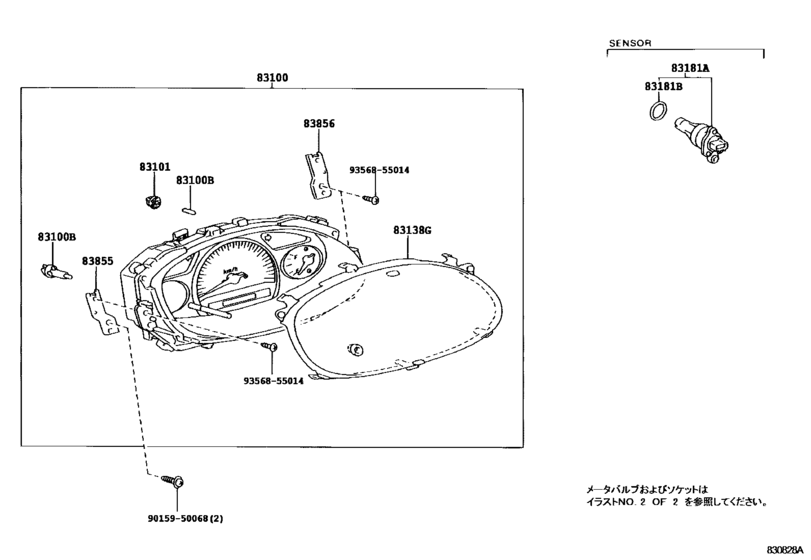

Meter ([08.2002 - ] ｱﾅﾛｸﾞﾒ-ﾀ (0208- )) Diagram Toyota PLATZ
- Year
- 1999 - 2005
- Sales region
- Japan
- Frame
- SCP11
- grade
- F
- ENGINE
- 1SZFE
- TRANSMISSION
- MTM
- From
- 08.1999
- To
- 11.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100
|
83100
83800-52390 Meter Assy, Combination[08.1999 - 01.2001] NCP1#,SCP11..MTM |
83800-52390 |
US $975.52 |
||
|
83100
|
83100
83800-52391 Meter Assy, Combination[01.2001 - 10.2001] NCP1#,SCP11..MTM |
83800-52391 |
US $975.52 |
||
| replacement | |||||
|
83100
|
83100
83800-52740 Meter Assy, Combination[01.2001 - 10.2001] NCP1#,SCP11..MTM |
83800-52740 |
US $975.52 |
||
|
83100
|
83100
83800-52410 Meter Assy, Combination[08.1999 - 05.2001] SCP11..MTM ﾅｼ(ABS) |
83800-52410 |
US $969.70 |
||
|
83100
|
83100
83800-52740 Meter Assy, Combination[10.2001 - 08.2002] NCP1#,SCP11..MTM |
83800-52740 |
US $975.52 |
||
|
83100
|
83100
83800-5C040 Meter Assy, Combination[08.2002 - 08.2003] NCP1#,SCP11..MTM ｱﾅﾛｸﾞ ﾒ-ﾀ |
83800-5C040 |
US $976.98 |
||
|
83100B
|
83100B
90010-03022 Bulb, Combination Meter, No.1[08.1999 - 12.2001] NCP1#,SCP11 １４Ｖ １．４Ｗ，レッド キャップ付き |
90010-03022 |
US $3.16 |
||
|
83100B
|
83100B
90010-03023 Bulb, Combination Meter, No.1[08.1999 - 12.2001] NCP1#,SCP11 １４Ｖ １．４Ｗ，ブルー キャップ付き |
90010-03023 |
US $3.33 |
||
|
83100B
|
83100B
90010-03024
Bulb, Combination Meter, No.1
[08.1999 - 12.2001] NCP1#,SCP11 １４Ｖ １．４Ｗ |
90010-03024 |
— | ||
|
83100B
|
83100B
90010-03031
Bulb, Combination Meter, No.1
[12.2001 - 08.2002] NCP1#,SCP11 １４Ｖ ２．０Ｗ |
90010-03031 |
— | ||
|
83100B
|
83100B
90010-03067
Bulb, Combination Meter, No.1
[08.2002 - 11.2005] NCP12..MTM..X;NCP16,SCP11..MTM １４Ｖ １．１２Ｗ |
90010-03067 |
— | ||
|
83100B
|
83100B
90099-53009 Bulb, Combination Meter, No.1[08.1999 - 08.2002] NCP1#,SCP11 １４Ｖ０．８４Ｗ 無し（ソケット） |
90099-53009 |
from US $1.48 |
||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[08.1999 - 08.2002] NCP1#,SCP11 １２Ｖ １．２Ｗ ソケット無し |
90981-11018 |
from US $2.24 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[08.1999 - 12.2001] NCP1#,SCP11 |
83101-14040 |
US $2.93 |
||
|
83138G
|
83138G
83852-52010
Glass, Combination Meter
[08.1999 - 12.2001] NCP1#,SCP11 ｱﾅﾛｸﾞ ﾒ-ﾀ |
83852-52010 |
— | ||
|
83138G
|
83138G
83852-52100
Glass, Combination Meter
[08.1999 - 08.2002] NCP12..X;NCP16,SCP11 ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
83852-52100 |
— | ||
|
83181A
|
83181A
83181-12020 Sensor, Speedometer[08.1999 - 05.2001] NCP16,SCP11 |
83181-12020 |
from US $169.48 |
||
|
83181B
|
83181B
96711-24030 Ring,o (For Speedometer Driven Hole Cover)[08.1999 - 05.2001] NCP16,SCP11 |
96711-24030 |
from US $2.22 |
||
|
83855
|
83855
83855-5C040
Bracket, Combination Meter, No.1
[08.2002 - 08.2003] NCP1#,SCP11 |
83855-5C040 |
— | ||
|
83856
|
83856
83856-5C040
Bracket, Combination Meter, No.2
[08.2002 - 08.2003] NCP1#,SCP11 |
83856-5C040 |
— | ||
|
9015950068
|
9015950068
90159-50068 SCREW |
90159-50068 |
US $1.12 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
