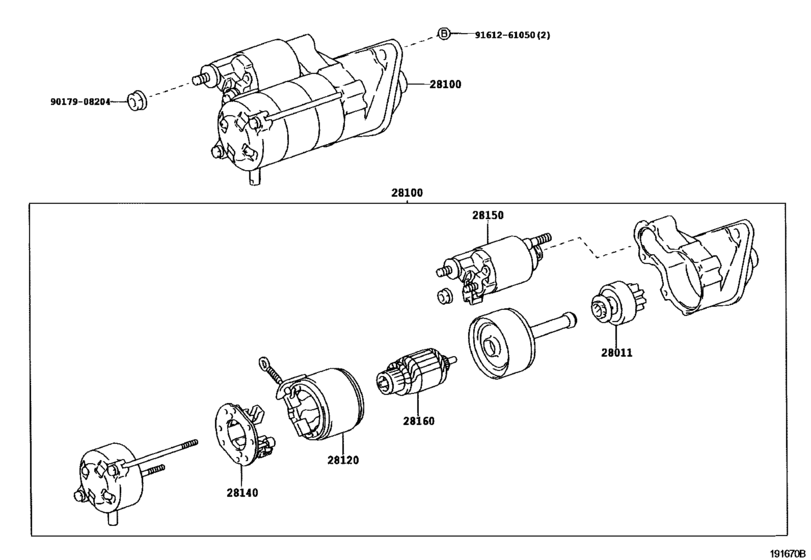

Starter ([08.2002 - ] 12V 0.7KW, 1.0KW (0208- )1SZFE) Diagram Toyota PLATZ
- Year
- 1999 - 2005
- Sales region
- Japan
- Frame
- SCP11
- grade
- F
- ENGINE
- 1SZFE
- TRANSMISSION
- MTM
- From
- 08.1999
- To
- 11.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-23020 Clutch Sub-Assy, Starter[08.1999 - 08.2002] 1SZFE..SCP11 12V 0.7KW |
28011-23020 |
US $82.99 |
||
|
28011
|
28011
28011-23030 Clutch Sub-Assy, Starter[08.1999 - 08.2002] 1SZFE..SCP11 12V 1.0KW |
28011-23030 |
US $82.99 |
||
|
28100
|
28100
28100-23020 Starter Assy[08.1999 - 08.2002] 1SZFE..SCP11 １２Ｖ ０．７ＫＷ |
28100-23020 |
US $899.81 |
||
| replacement | |||||
|
28100
|
28100
28100-23031 Starter Assy[08.1999 - 08.2002] 1SZFE..SCP11 １２Ｖ ０．７ＫＷ |
28100-23031 |
US $908.54 |
||
|
28100
|
28100
28100-23030 Starter Assy[08.1999 - 08.2002] 1SZFE..SCP11 １２Ｖ １．０ＫＷ |
28100-23030 |
US $908.54 |
||
| replacement | |||||
|
28100
|
28100
28100-23031 Starter Assy[08.1999 - 08.2002] 1SZFE..SCP11 １２Ｖ １．０ＫＷ |
28100-23031 |
US $908.54 |
||
|
28120
|
28120
28120-10020
Yoke Assy, Starter
[08.1999 - 08.2002] 1SZFE..SCP11 12V 0.7KW |
28120-10020 |
— | ||
|
28120
|
28120
28120-70050
Yoke Assy, Starter
[08.1999 - 08.2002] 1NZFE,2NZFE,1SZFE..NCP1#,SCP11 12V 1.0KW |
28120-70050 |
— | ||
|
28140
|
28140
28140-70020 Holder Assy, Starter Brush[08.1999 - 08.2002] 1NZFE,2NZFE,1SZFE..NCP1#,SCP11 |
28140-70020 |
from US $22.19 |
||
|
28150
|
28150
28150-16160 Switch Assy, Magnet Starter[08.1999 - 08.2002] 1NZFE,2NZFE,1SZFE..NCP1#,SCP11 |
28150-16160 |
from US $83.66 |
||
|
28160
|
28160
28160-10020 Armature Assy, Starter[08.1999 - 08.2002] 1SZFE..SCP11 12V 0.7KW |
28160-10020 |
US $135.41 |
||
|
28160
|
28160
28160-70050 Armature Assy, Starter[08.1999 - 08.2002] 1NZFE,2NZFE,1SZFE..NCP1#,SCP11 12V 1.0KW |
28160-70050 |
US $161.62 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
|
9161261050
|
9161261050
91612-61050 Bolt(For Transaxle & Engine Setting) |
91612-61050 |
from US $1.29 |
||
