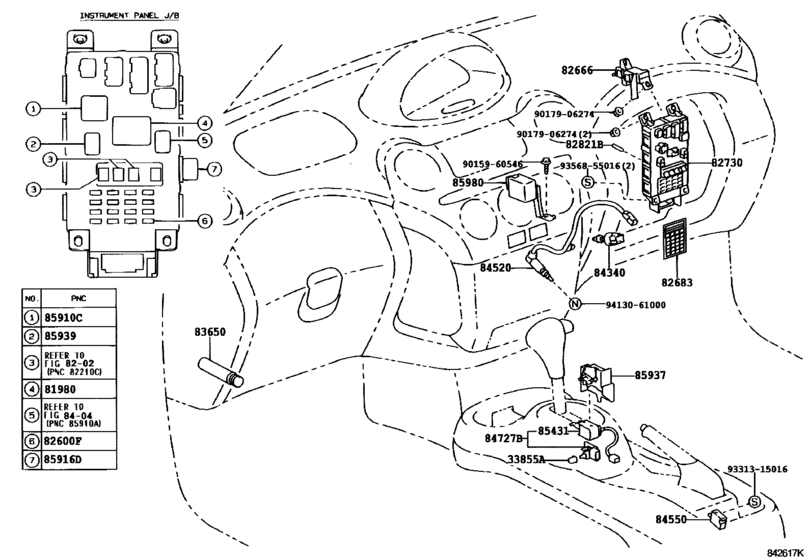

Switch & Relay & Computer ([08.1999 - ] ｶｳﾙ (9908- )) Diagram Toyota PLATZ
- Year
- 1999 - 2005
- Sales region
- Japan
- Frame
- SCP11
- grade
- F
- ENGINE
- 1SZFE
- TRANSMISSION
- MTM
- From
- 08.1999
- To
- 11.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81980
|
81980
81980-50030 Flasher Assy, Turn Signal[08.1999 - 08.2002] NCP1#,SCP11 |
81980-50030 |
from US $54.87 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[08.1999 - 08.2002] NCP1#,SCP11 ７．５Ａ，ミニ ヒューズ |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[08.1999 - 08.2002] NCP1#,SCP11 １０Ａ，ミニ ヒューズ |
90982-09009 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[08.1999 - 08.2002] NCP1#,SCP11 １５Ａ，ミニ ヒューズ |
90982-09010 |
from US $1.11 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[08.1999 - 08.2002] NCP1#,SCP11 ２０Ａ，ミニ ヒューズ |
90982-09011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09012 Fusible Link[08.1999 - 08.2002] NCP1#,SCP11 ２５Ａ，ミニ ヒューズ |
90982-09012 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[08.1999 - 08.2002] NCP1#,SCP11 ３０Ａ，ミニ ヒューズ |
90982-09013 |
from US $0.94 |
||
|
82666
|
82666
82666-52010 Holder, Connector[08.1999 - 08.2002] NCP1#,SCP11 |
82666-52010 |
US $17.91 |
||
|
82683
|
82683
82683-52010 Plate, Fuse Block Caution[08.1999 - 12.2001] NCP1#,SCP11 |
82683-52010 |
US $3.64 |
||
|
82683
|
82683
82683-52011 Plate, Fuse Block Caution[12.2001 - 08.2002] NCP1#,SCP11 |
82683-52011 |
US $3.64 |
||
| replacement | |||||
|
82683
|
82683
82683-52150 Plate, Fuse Block Caution[12.2001 - 08.2002] NCP1#,SCP11 |
82683-52150 |
US $3.79 |
||
|
82683
|
82683
82683-52150 Plate, Fuse Block Caution[08.2002 -] SCP11;NCP1#..ATM;NCP1#..MTM..F |
82683-52150 |
US $3.79 |
||
|
82730
|
82730
82732-52010 Block Assy, Instrument Panel Junction[08.1999 - 08.2002] NCP1#,SCP11 |
82732-52010 |
US $183.46 |
||
|
82821B
|
82821B
82821-52020 Cover, Connector[08.2002 - 08.2003] NCP1#,SCP11 |
82821-52020 |
from US $0.44 |
||
|
83650
|
83650
90986-01005
Fusee
[08.1999 - 08.2002] NCP1#,SCP11 |
90986-01005 |
— | ||
|
84340
|
84340
84340-32050 Switch Assy, Stop Lamp[08.1999 - 08.2002] NCP1#,SCP11 |
84340-32050 |
from US $19.19 |
||
|
84520
|
84520
84520-52010 Switch Assy, Clutch Start[08.1999 - 08.2002] NCP1#,SCP11..MTM |
84520-52010 |
US $33.49 |
||
|
84550
|
84550
84550-30080 Switch Assy, Parking Brake[08.1999 - 08.2002] NCP1#,SCP11 |
84550-30080 |
from US $18.39 |
||
|
85910C
|
85910C
90987-04006 Relay Assy (For Heater Blower Motor)[08.1999 - 08.2002] NCP1#,SCP11 |
90987-04006 |
US $60.13 |
||
| replacement | |||||
|
85910C
|
85910C
90987-04010 Relay Assy (For Heater Blower Motor)[08.1999 - 08.2002] NCP1#,SCP11 |
90987-04010 |
from US $42.71 |
||
|
85910C
|
85910C
90987-04010 Relay Assy (For Heater Blower Motor)[12.2002 -] SCP11;NCP1#..ATM;NCP1#..MTM..F |
90987-04010 |
from US $42.71 |
||
|
85916D
|
85916D
90987-02012 Relay, Ignition, No.1[08.2002 - 12.2002] NCP1#,SCP11 |
90987-02012 |
from US $26.99 |
||
|
85916D
|
85916D
90987-02027 Relay[12.2002 -] SCP11;NCP1#..ATM;NCP1#..MTM..F |
90987-02027 |
from US $44.54 |
||
|
85939
|
85939
90987-02012 Relay, Ignition, No.1[08.1999 - 08.2002] NCP1#,SCP11 |
90987-02012 |
from US $26.99 |
||
|
85939
|
85939
90987-02027 Relay[12.2002 -] SCP11;NCP1#..ATM;NCP1#..MTM..F |
90987-02027 |
from US $44.54 |
||
|
85980
|
85980
85980-52010 Relay Assy, Door Control[08.1999 - 08.2002] NCP1#,SCP11..F |
85980-52010 |
US $211.12 |
||
|
85980
|
85980
85980-52100 Relay Assy, Door Control[08.1999 - 08.2002] NCP1#..X; NCP16,SCP11..F ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
85980-52100 |
US $407.68 |
||
|
85980
|
85980
85980-52160 Relay Assy, Door Control[08.2002 -] NCP1#,SCP11..F |
85980-52160 |
US $305.76 |
||
|
85980
|
85980
85980-52170 Relay Assy, Door Control[08.2002 - 08.2003] NCP12..X;NCP16,SCP11 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
85980-52170 |
US $355.26 |
||
|
85980
|
85980
85980-52230 Relay Assy, Door Control[08.2003 -] SCP11;NCP16..ATM;NCP12..ATM..X;NCP16..MTM..F ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
85980-52230 |
US $430.98 |
||
|
9015960546
|
9015960546
90159-60546 New Genuine Part |
90159-60546 |
US $0.96 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.72 |
||
|
9331315016
|
9331315016
93313-15016 New Genuine Part |
93313-15016 |
US $0.73 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $1.12 |
||
|
9413061000
|
9413061000
94130-61000 Nut(For Clutch Pedal Stopper) |
94130-61000 |
from US $0.82 |
||
