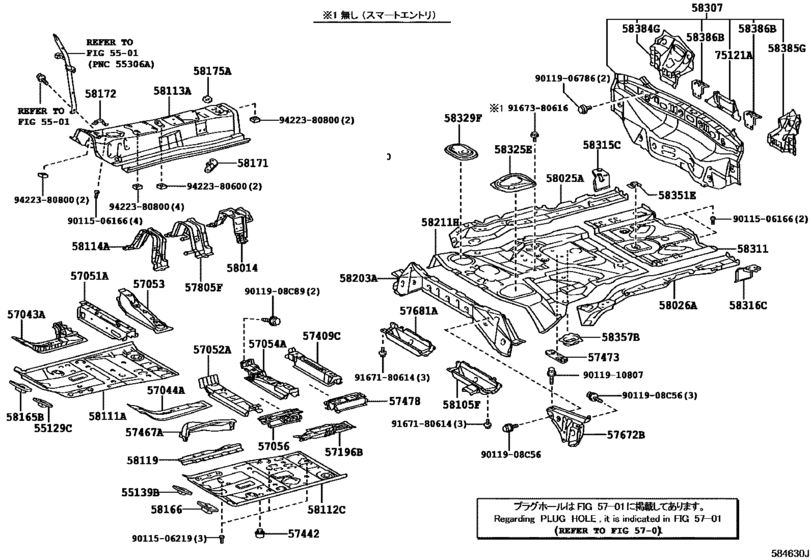

Floor Pan & Lower Back Panel ([07.2012 - ] (1207- )NCP145) Diagram Toyota PORTE/ SPADE
- Year
- 2012 - 2018
- Sales region
- Japan
- Frame
- NCP145
- grade
- F
- ENGINE
- 1NZFE
- Model
- SPADE
- From
- 07.2012
- Gear Shift Type
- CVT
- Vehicle Model
- SPADE
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55129C
|
55129C
55129-52051 Cover, Front Floor HoleDASH PANEL HOLE [07.2012 - 07.2015] NCP14#,NSP140..CBU |
55129-52051 |
US $10.48 |
||
|
55139B
|
55139B
55139-52021 Cover, Front Floor HoleDASH PANEL HOLE [07.2012 - 07.2015] NCP14#,NSP140..CBU |
55139-52021 |
US $10.48 |
||
|
57043A
|
57043A
57043-52021 Reinforcement Sub-Assy, Front Side Member, Rear Rh[07.2012 - 04.2013] NCP14#,NSP140..CBU |
57043-52021 |
US $65.52 |
||
| replacement | |||||
|
57043A
|
57043A
57043-52023 Reinforcement Sub-Assy, Front Side Member, Rear Rh[07.2012 - 04.2013] NCP14#,NSP140..CBU |
57043-52023 |
US $59.55 |
||
|
57043A
|
57043A
57043-52022 Reinforcement Sub-Assy, Front Side Member, Rear Rh[05.2013 - 10.2014] NCP14#,NSP140..CBU |
57043-52022 |
US $65.52 |
||
| replacement | |||||
|
57043A
|
57043A
57043-52023 Reinforcement Sub-Assy, Front Side Member, Rear Rh[05.2013 - 10.2014] NCP14#,NSP140..CBU |
57043-52023 |
US $59.55 |
||
|
57043A
|
57043A
57043-52023 Reinforcement Sub-Assy, Front Side Member, Rear Rh[11.2014 - 07.2015] NCP14#,NSP140..CBU |
57043-52023 |
US $59.55 |
||
|
57044A
|
57044A
57044-52050 Reinforcement Sub-Assy, Front Side Member, Rear Lh[07.2012 - 04.2013] NCP14#,NSP140..CBU |
57044-52050 |
US $65.37 |
||
| replacement | |||||
|
57044A
|
57044A
57044-52052 Reinforcement Sub-Assy, Front Side Member, Rear Lh[07.2012 - 04.2013] NCP14#,NSP140..CBU |
57044-52052 |
US $59.40 |
||
|
57044A
|
57044A
57044-52051 Reinforcement Sub-Assy, Front Side Member, Rear Lh[05.2013 - 10.2014] NCP14#,NSP140..CBU |
57044-52051 |
US $65.37 |
||
| replacement | |||||
|
57044A
|
57044A
57044-52052 Reinforcement Sub-Assy, Front Side Member, Rear Lh[05.2013 - 10.2014] NCP14#,NSP140..CBU |
57044-52052 |
US $59.40 |
||
|
57044A
|
57044A
57044-52052 Reinforcement Sub-Assy, Front Side Member, Rear Lh[11.2014 - 07.2015] NCP14#,NSP140..CBU |
57044-52052 |
US $59.40 |
||
|
57051A
|
57051A
57051-52040 Member Sub-Assy, Front Floor Cross, Rh[07.2012 - 07.2015] NCP14#,NSP140..CBU |
57051-52040 |
US $88.82 |
||
|
57052A
|
57052A
57052-52030 Member Sub-Assy, Front Floor Cross, Lh[07.2012 - 07.2015] NCP14#,NSP140..CBU |
57052-52030 |
US $88.82 |
||
|
57053
|
57053
57053-52010 Reinforcement Sub-Assy, Front Floor Cross Member, Rh[07.2012 - 07.2015] NCP14#,NSP140..CBU |
57053-52010 |
US $72.51 |
||
|
57054A
|
57054A
57054-52020 Reinforcement Sub-Assy, Front Floor Cross Member, Lh[07.2012 - 07.2015] NCP145..CBU |
57054-52020 |
US $91.73 |
||
| replacement | |||||
|
57054A
|
57054A
57054-52021 Reinforcement Sub-Assy, Front Floor Cross Member, Lh[07.2012 - 07.2015] NCP145..CBU |
57054-52021 |
US $82.99 |
||
|
57054A
|
57054A
57054-52021 Reinforcement Sub-Assy, Front Floor Cross Member, Lh[12.2015 -] NCP145..CBU |
57054-52021 |
US $82.99 |
||
|
57056
|
57056
57056-52010 Reinforcement Sub-Assy, Cross Member Floor, No.6[07.2012 - 07.2015] NCP14#,NSP140..CBU |
57056-52010 |
US $29.12 |
||
|
57196B
|
57196B
57196-52020 Reinforcement, Front Side Member, Front Lh[07.2012 - 07.2015] NCP14#,NSP140..CBU |
57196-52020 |
US $31.74 |
||
|
57409C
|
57409C
57409-52040 Member Sub-Assy, Main Floor Side, Lh[07.2012 - 07.2015] NCP145..CBU |
57409-52040 |
US $51.98 |
||
|
57442
|
57442
57442-28030 Plug, Step Panel Hole[07.2012 - 07.2015] NCP14#,NSP140..CBU |
57442-28030 |
US $3.36 |
||
|
57467A
|
57467A
57467-52030 Bracket, Front Seat Outside Mounting, Front Lh[07.2012 - 07.2015] NCP14#,NSP140..CBU |
57467-52030 |
US $50.09 |
||
|
57473
|
57473
57473-52021 Reinforcement, Rear Seat Back Hinge[07.2012 - 07.2015] NCP145..CBU |
57473-52021 |
US $17.76 |
||
|
57478
|
57478
57478-52020 Gusset, Rear Seat, Lh[07.2012 - 07.2015] NCP14#,NSP140..CBU |
57478-52020 |
US $24.61 |
||
| replacement | |||||
|
57478
|
57478
57478-52021 Gusset, Rear Seat, Lh[07.2012 - 07.2015] NCP14#,NSP140..CBU |
57478-52021 |
US $22.28 |
||
|
57478
|
57478
57478-52021 Gusset, Rear Seat, Lh[12.2015 -] NCP145,NSP141..CBU |
57478-52021 |
US $22.28 |
||
|
57672B
|
57672B
57672-52160 Brace, Rear Floor No.1 Crossmember, Lh[07.2012 - 07.2015] NCP145..CBU |
57672-52160 |
US $32.61 |
||
|
57681A
|
57681A
57681-52030 Brace, Rear Floor No.2 Crossmember, Outer[07.2012 - 07.2015] NCP145..CBU |
57681-52030 |
US $41.34 |
||
|
57805F
|
57805F
57805-52141 Reinforcement Sub-Assy, Belt Anchor, Rh[07.2012 - 07.2015] NCP145..CBU |
57805-52141 |
US $55.47 |
||
|
58014
|
58014
58014-52011 Panel Sub-Assy, Front Floor, Rear Lower[07.2012 - 07.2015] NCP145..CBU |
58014-52011 |
US $84.45 |
||
| replacement | |||||
|
58014
|
58014
58014-52012 Panel Sub-Assy, Front Floor, Rear Lower[07.2012 - 07.2015] NCP145..CBU |
58014-52012 |
US $75.71 |
||
|
58014
|
58014
58014-52012 Panel Sub-Assy, Front Floor, Rear Lower[10.2015 -] NCP145..CBU |
58014-52012 |
US $75.71 |
||
|
58025A
|
58025A
58025-52060 Panel Sub-Assy, Floor Side Rail, Fr Rh[07.2012 - 07.2015] NCP14#,NSP140..CBU |
58025-52060 |
US $83.16 |
||
|
58026A
|
58026A
58026-52090 Panel Sub-Assy, Floor Side Rail, Fr Lh[07.2012 - 07.2015] NCP14#,NSP140..CBU |
58026-52090 |
US $83.16 |
||
|
58105F
|
58105F
58105-52030 Brace, Rear Floor No.2 Crossmember, Outer LhREAR FLOOR NO.2 CROSSMEMBER, OUTER LH [07.2012 - 07.2015] NCP145..CBU |
58105-52030 |
US $41.34 |
||
|
58111A
|
58111A
58111-52170 Pan, Front Floor, Rh[07.2012 - 07.2013] NCP14#,NSP140..CBU |
58111-52170 |
US $174.72 |
||
|
58111A
|
58111A
58111-52280 Pan, Front Floor, Rh[08.2013 - 10.2014] NCP14#,NSP140..CBU |
58111-52280 |
US $174.72 |
||
| replacement | |||||
|
58111A
|
58111A
58111-52281 Pan, Front Floor, Rh[08.2013 - 10.2014] NCP14#,NSP140..CBU |
58111-52281 |
US $158.70 |
||
|
58111A
|
58111A
58111-52281 Pan, Front Floor, Rh[11.2014 - 07.2015] NCP14#,NSP140..CBU |
58111-52281 |
US $158.70 |
||
|
58112C
|
58112C
58112-52914 Pan, Front Floor, Lh[07.2012 - 08.2013] NCP14#,NSP140..CBU |
58112-52914 |
US $171.81 |
||
| replacement | |||||
|
58112C
|
58112C
58112-52923 Pan, Front Floor, Lh[07.2012 - 08.2013] NCP14#,NSP140..CBU |
58112-52923 |
US $155.79 |
||
|
58112C
|
58112C
58112-52919 Pan, Front Floor, Lh[08.2013 - 11.2014] NCP14#,NSP140..CBU |
58112-52919 |
US $171.81 |
||
| replacement | |||||
|
58112C
|
58112C
58112-52923 Pan, Front Floor, Lh[08.2013 - 11.2014] NCP14#,NSP140..CBU |
58112-52923 |
US $155.79 |
||
|
58112C
|
58112C
58112-52923 Pan, Front Floor, Lh[11.2014 - 07.2015] NCP14#,NSP140..CBU |
58112-52923 |
US $155.79 |
||
|
58113A
|
58113A
58113-52914 Panel, Front Floor, Center[07.2012 - 07.2015] NCP145..CBU |
58113-52914 |
US $317.41 |
||
|
58114A
|
58114A
58114-52081 Reinforcement, Front Floor Panel[07.2012 - 07.2015] NCP145..CBU |
58114-52081 |
US $38 |
||
|
58119
|
58119
58119-52010 Plate, Front Floor Side, Front[07.2012 - 07.2015] NCP14#,NSP140..CBU |
58119-52010 |
US $11.07 |
||
|
58165B
|
58165B
58165-52011 Cover, Front Floor, RhFRONT FLOOR, RH [07.2012 - 07.2015] NCP14#,NSP140..CBU |
58165-52011 |
US $13.22 |
||
|
58166
|
58166
58166-52011 Cover, Front Floor, LhFRONT FLOOR, LH [07.2012 - 07.2015] NCP14#,NSP140..CBU |
58166-52011 |
US $14.50 |
||
|
58171
|
58171
58171-52120 Reinforcement, Parking Brake Base[07.2012 - 07.2015] NCP145..CBU |
58171-52120 |
US $11.21 |
||
|
58172
|
58172
58172-52030 Bracket, Computer Mounting, No.3[07.2012 - 07.2015] NCP145..CBU |
58172-52030 |
US $5.39 |
||
|
58175A
|
58175A
58175-52020 Reinforcement, Parking Brake Base, No.1[07.2012 - 07.2015] NCP14#,NSP140..CBU |
58175-52020 |
US $2.91 |
||
|
58203A
|
58203A
58203-52100 Reinforcement Sub-Assy, Center Floor Panel, Rh[07.2012 - 07.2015] NCP145..CBU |
58203-52100 |
US $66.83 |
||
|
58211H
|
58211H
58211-52170 Pan, Center Floor[07.2012 - 07.2015] NCP145..CBU |
58211-52170 |
US $198.02 |
||
|
58307
|
58307
58307-52620 Panel Sub-Assy, Body Lower Back[07.2012 - 06.2015] NCP145..CBU |
58307-52620 |
US $208.21 |
||
| replacement | |||||
|
58307
|
58307
58307-52621 Panel Sub-Assy, Body Lower Back[07.2012 - 06.2015] NCP145..CBU |
58307-52621 |
US $263.52 |
||
|
58307
|
58307
58307-52621 Panel Sub-Assy, Body Lower Back[08.2015 -] NCP145..CBU |
58307-52621 |
US $263.52 |
||
|
58311
|
58311
58311-52191 Pan, Rear Floor[07.2012 - 07.2015] NCP145..CBU |
58311-52191 |
US $75.71 |
||
|
58315C
|
58315C
58315-52160 Extension, Rear Floor Side Panel, Rh[07.2012 - 07.2015] NCP14#,NSP140..CBU; NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席リフトアップシート＆クレーン; NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU サイドアクセス（脱着式）＆クレーン |
58315-52160 |
US $29.94 |
||
|
58316C
|
58316C
58316-52180 Extension, Rear Floor Side Panel, Lh[07.2012 - 07.2015] NCP14#,NSP140..CBU; NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席リフトアップシート＆クレーン; NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU サイドアクセス（脱着式）＆クレーン |
58316-52180 |
US $29.94 |
||
|
58325E
|
58325E
58325-52060 Cover, Rear Floor Service Hole[07.2012 - 07.2015] NCP145..CBU |
58325-52060 |
US $19.51 |
||
|
58329F
|
58329F
58329-52020 Cover, Rear Floor Service Hole, No.2[07.2012 - 07.2015] NCP145..CBU |
58329-52020 |
US $12.38 |
||
|
58351E
|
58351E
58351-52070 Bracket Sub-Assy, Spare Wheel Clamp[07.2012 - 07.2015] NCP14#,NSP140..CBU |
58351-52070 |
US $8.80 |
||
|
58357B
|
58357B
58357-52041 Bracket, Actuator Cover, No.3 Rh[07.2012 - 07.2015] NCP145..CBU |
58357-52041 |
US $8.53 |
||
|
58384G
|
58384G
58384-52170 Gusset, Lower Back, Upper Rh[07.2012 - 07.2015] NCP14#,NSP140..CBU |
58384-52170 |
US $33.34 |
||
|
58385G
|
58385G
58385-52130 Gusset, Lower Back, Upper Lh[07.2012 - 07.2015] NCP14#,NSP140..CBU |
58385-52130 |
US $33.20 |
||
|
58386B
|
58386B
58386-74010 Bracket, Rear Bumper Cover, No.2REAR BUMPER COVER, NO.2 [07.2012 - 07.2015] NCP14#,NSP140..CBU |
58386-74010 |
US $8.32 |
||
|
75121A
|
75121A
75121-52110 Bracket, Rear License Plate[07.2012 - 07.2015] NCP14#,NSP140..CBU |
75121-52110 |
US $21.43 |
||
|
9011908C56
|
9011908C56
90119-08C56 BOLT WWASHER |
90119-08C56 |
US $1.60 |
||
|
9011908C89
|
9011908C89
90119-08C89 BOLT WWASHER |
90119-08C89 |
US $1.28 |
||
|
9011506166
|
9011506166
90115-06166 Bolt, Weld(For Front Floor Pan) |
90115-06166 |
from US $0.98 |
||
|
9011506219
|
9011506219
90115-06219 Bolt, Weld(For Front Floor Pan, Lh) |
90115-06219 |
US $1.28 |
||
|
9011906786
|
9011906786
90119-06786 BOLT WWASHER |
90119-06786 |
from US $0.98 |
||
|
9011910807
|
9011910807
90119-10807 New Genuine Part |
90119-10807 |
US $10.72 |
||
| replacement | |||||
|
9011910807
|
9011910807
91642-K1020 BOLT WWASHER |
91642-K1020 |
US $2.72 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.68 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9422380600
|
9422380600
94223-80600 Retainer, Rear Door Open Switch Set, Rh |
94223-80600 |
US $1.12 |
||
|
9422380800
|
9422380800
94223-80800 New Genuine Part |
94223-80800 |
US $1.44 |
||
