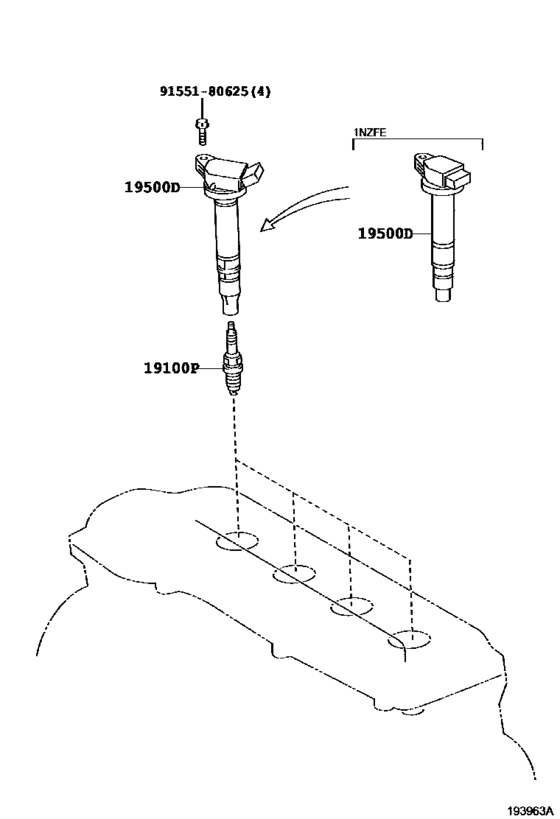

Ignition Coil & Spark Plug ([07.2012 - ] (1207- )1N# ; (1207- )2NRFKE) Diagram Toyota PORTE/ SPADE
- Year
- 2012 - 2015
- Sales region
- Japan
- Frame
- NSP140
- grade
- X
- ENGINE
- 1NRFE
- Model
- SPADE
- From
- 07.2012
- To
- 07.2015
- Gear Shift Type
- CVT
- Vehicle Model
- SPADE
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19100P
|
19100P
90919-01253 Spark Plug (Denso SC20HR11 Iridium)[07.2012 - 11.2013] 1NRFE..NSP140..CBU ＳＣ２０ＨＲ１１ |
90919-01253 |
US $31.77 |
||
| replacement | |||||
|
19100P
|
19100P
90919-01275 Spark Plug (Denso SC16HR11 Iridium)[07.2012 - 11.2013] 1NRFE..NSP140..CBU ＳＣ２０ＨＲ１１ |
90919-01275 |
from US $24.20 |
||
|
19100P
|
19100P
90919-01275 Spark Plug (Denso SC16HR11 Iridium)[11.2013 - 07.2015] 1NRFE..NSP140..CBU ＳＣ１６ＨＲ１１ |
90919-01275 |
from US $24.20 |
||
|
19500D
|
19500D
90919-02257 Coil Assy, Ignition[07.2012 - 07.2015] 1NRFE..NSP140..CBU |
90919-02257 |
from US $93.80 |
||
|
9155180625
|
9155180625
91551-80625 Bolt(For Camshaft Housing Set) |
91551-80625 |
from US $0.70 |
||
