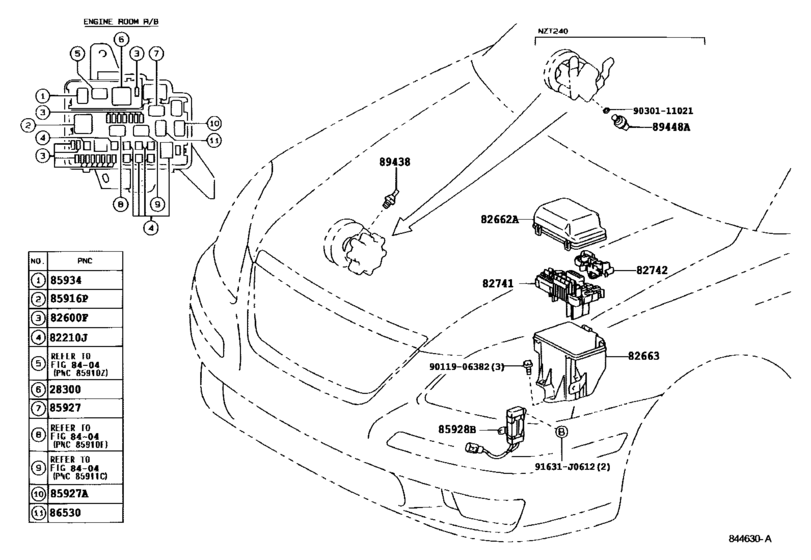

Switch & Relay & Computer ([12.2001 - ] ｴﾝｼﾞﾝﾙ-ﾑ (0112- )) Diagram Toyota PREMIO/ ALLION
- Year
- 2001 - 2007
- Sales region
- Japan
- Frame
- ZZT245
- ENGINE
- 1ZZFE
- Model
- ALLION
- From
- 12.2001
- To
- 05.2007
- Gear Shift Type
- 4FC
- Vehicle Model
- Alion
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-10020 Relay Assy, Starter[12.2001 - 12.2004] 1AZFSE,1NZFE,1ZZFE..AZT240,NZT240,ZZT24# |
28300-10020 |
from US $57.15 |
||
|
82210J
|
82210J
90982-08254 Fusible Link[12.2001 - 12.2004] AZT240,NZT240,ZZT24# １２０Ａ，オス端子 |
90982-08254 |
US $7.04 |
||
|
82210J
|
82210J
90982-08283 Fusible Link[12.2001 - 12.2004] AZT240,NZT240,ZZT24# ３０Ａ，メス端子 |
90982-08283 |
from US $7.04 |
||
|
82210J
|
82210J
90982-08284 Fusible Link[12.2001 - 12.2004] AZT240,NZT240,ZZT24# ４０Ａ，メス端子 |
90982-08284 |
from US $9.44 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[12.2001 - 12.2004] AZT240,NZT240,ZZT24# ７．５Ａ，ミニ ヒューズ |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[12.2001 - 12.2004] AZT240,NZT240,ZZT24# １０Ａ，ミニ ヒューズ |
90982-09009 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[12.2001 - 12.2004] AZT240,NZT240,ZZT24# １５Ａ，ミニ ヒューズ |
90982-09010 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[12.2001 - 12.2004] AZT240,NZT240,ZZT24# ２０Ａ，ミニ ヒューズ |
90982-09011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09012 Fusible Link[12.2001 - 12.2004] AZT240,NZT240,ZZT24# ２５Ａ，ミニ ヒューズ |
90982-09012 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[12.2001 - 12.2004] AZT240,NZT240,ZZT24# ３０Ａ，ミニ ヒューズ |
90982-09013 |
from US $0.94 |
||
|
82662A
|
82662A
82662-20220 Cover, Relay Block, Upper, No.1[12.2001 - 12.2004] NZT240,ZZT24# |
82662-20220 |
US $41.50 |
||
| replacement | |||||
|
82662A
|
82662A
82662-20221 Cover, Relay Block, Upper, No.1[12.2001 - 12.2004] NZT240,ZZT24# |
82662-20221 |
from US $41.50 |
||
|
82662A
|
82662A
82662-20221 Cover, Relay Block, Upper, No.1[12.2004 -] NZT240,ZZT24# |
82662-20221 |
from US $41.50 |
||
|
82662A
|
82662A
82662-20230 Cover, Relay Block, Upper, No.1[12.2001 - 12.2004] NZT240,ZZT24# ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ) |
82662-20230 |
US $41.50 |
||
| replacement | |||||
|
82662A
|
82662A
82662-20231 Cover, Relay Block, Upper, No.1[12.2001 - 12.2004] NZT240,ZZT24# ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ) |
82662-20231 |
US $41.50 |
||
|
82662A
|
82662A
82662-20231 Cover, Relay Block, Upper, No.1[12.2004 -] NZT240,ZZT24# ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ) |
82662-20231 |
US $41.50 |
||
|
82663
|
82663
82663-63010 Cover, Relay Block, Lower[12.2001 - 12.2004] AZT240,NZT240,ZZT24# |
82663-63010 |
from US $100.46 |
||
|
82741
|
82741
82741-63010 Block, Engine Room Relay[12.2001 - 12.2004] AZT240,NZT240,ZZT24# |
82741-63010 |
US $62.61 |
||
|
82742
|
82742
82742-63010 Block, Engine Room Relay, No.2[12.2001 - 12.2004] AZT240,NZT240,ZZT24# |
82742-63010 |
US $23 |
||
|
85916P
|
85916P
90987-02025 Relay[12.2001 - 12.2004] AZT240,NZT240,ZZT24# |
90987-02025 |
from US $44.54 |
||
|
85927
|
85927
90987-02022 Relay, Starter Cut[12.2001 - 12.2004] AZT240,NZT240,ZZT24# |
90987-02022 |
from US $54 |
||
|
85927
|
85927
90987-02027 Relay[12.2006 -] AZT240,NZT240,ZZT24# |
90987-02027 |
from US $44.54 |
||
|
85927A
|
85927A
90987-04004 Relay, Starter Cut[12.2001 - 12.2004] AZT240,NZT240,ZZT24# |
90987-04004 |
US $42.71 |
||
|
85928B
|
85928B
85928-20020 Resistor, Cooling Fan[12.2001 - 12.2004] NZT240,ZZT24# |
85928-20020 |
US $69.60 |
||
|
85934
|
85934
90987-02022 Relay, Starter Cut[12.2001 - 09.2003] NZT240,ZZT24# |
90987-02022 |
from US $54 |
||
|
85934
|
85934
90987-02028 Relay, Water Pump[09.2003 - 12.2004] NZT240,ZZT24# |
90987-02028 |
from US $44.54 |
||
|
86530
|
86530
90987-02022 Relay, Starter Cut[12.2001 - 12.2004] AZT240,NZT240,ZZT24# |
90987-02022 |
from US $54 |
||
|
86530
|
86530
90987-02027 Relay[12.2006 -] AZT240,NZT240,ZZT24# |
90987-02027 |
from US $44.54 |
||
|
89438
|
89438
89438-33010 Switch, Power Steering Oil Pressure[12.2001 - 12.2004] AZT240,ZZT24# |
89438-33010 |
from US $34.56 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.78 |
||
|
9011906382
|
9011906382
90119-06382 Bolt |
90119-06382 |
from US $1.12 |
||
|
9030111021
|
9030111021
90301-11021 RING O |
90301-11021 |
from US $2.24 |
||
