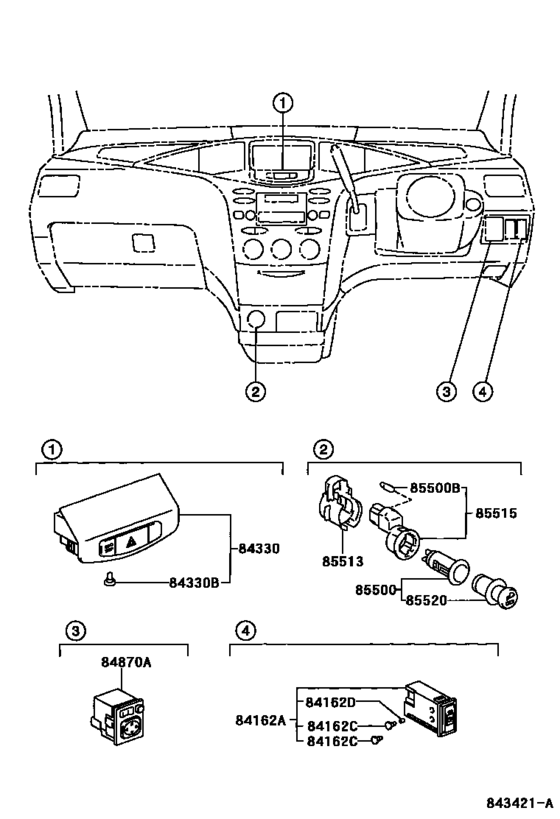

Switch & Relay & Computer ([05.2000 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (0005- )) Diagram Toyota PRIUS
- Year
- 2000 - 2003
- Sales region
- Japan
- Frame
- NHW11
- grade
- S
- body
- SED
- ENGINE
- 1NZFXE
- Model
- PRIUS
- From
- 05.2000
- To
- 08.2003
- Vehicle Model
- PRIUS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84162A
|
84162A
84165-20070 Switch, Rear Fog Lamp[05.2000 -] NHW11 |
84165-20070 |
US $67.97 |
||
|
84162C
|
84162C
84999-10780 Bulb, Fog Lamp Switch[05.2000 -] NHW11 １４Ｖ ０．７Ｗ |
84999-10780 |
US $6.56 |
||
|
84162D
|
84162D
84998-10640 Cap, Rear Fog Lamp Bulb[05.2000 -] NHW11 |
84998-10640 |
from US $3.84 |
||
|
84330
|
84330
84332-47040-B0 Switch Assy, Hazard Warning Signal[05.2000 -] NHW11 AMETHYST,TRIM9# |
84332-47040-B0 |
US $109.20 |
||
|
84330B
|
84330B
84999-10310 Bulb, Air Conditioner Control[12.1997 -] NHW1# １４Ｖ ０．９１Ｗ |
84999-10310 |
from US $2.96 |
||
|
84870A
|
84870A
84870-28020 Switch Assy, Outer Mirror[05.2000 -] NHW11 |
84870-28020 |
from US $66.27 |
||
|
85500
|
85500
85500-12240 Lighter Assy, Cigarette[12.1997 -] NHW1# |
85500-12240 |
from US $27.83 |
||
|
85500B
|
85500B
90010-01015 Bulb, Cigarette Lighter[12.1997 -] NHW1# １４Ｖ １．４Ｗ，キャップ付き |
90010-01015 |
from US $3.33 |
||
|
85513
|
85513
85513-12020 Cover, Cigarette Lighter[12.1997 -] NHW1# |
85513-12020 |
from US $5.05 |
||
|
85515
|
85515
85515-47010 Stay, Cigarette Lighter Bezel[12.1997 -] NHW1# |
85515-47010 |
US $16.72 |
||
|
85520
|
85520
85520-28010 Knob And Element Assy, Cigarette Lighter[05.2000 -] NHW11 |
85520-28010 |
from US $17.90 |
