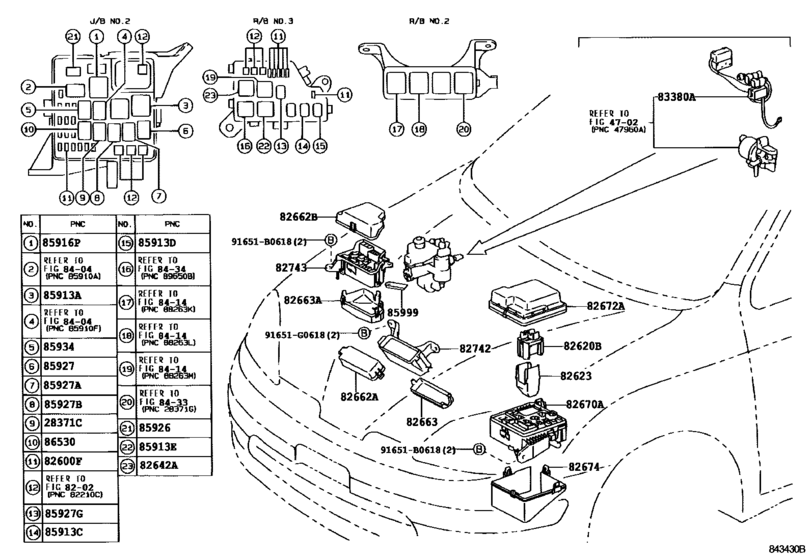

Switch & Relay & Computer ([05.2000 - ] ENGINE ROOM (0005- )) Diagram Toyota PRIUS
- Year
- 2000 - 2003
- Sales region
- U.S.A.
- Frame
- NHW11
- ENGINE
- 1NZFXE
- DESTINATION
- USA
- Model
- PRIUS
- From
- 05.2000
- To
- 08.2003
- Vehicle Model
- PRIUS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28371C
|
28371C
90987-02012 Relay, Ignition, No.1[05.2000 -] 1NZFXE..NHW11 |
90987-02012 |
from US $26.99 |
||
|
82600F
|
82600F
90982-09007 Fusible Link[05.2000 -] NHW11 5A,MINI FUSE |
90982-09007 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[05.2000 -] NHW11 7.5A,MINI FUSE |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[05.2000 -] NHW11 10A,MINI FUSE |
90982-09009 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[05.2000 -] NHW11 15A,MINI FUSE |
90982-09010 |
from US $1.11 |
||
|
82600F
|
82600F
90982-09012 Fusible Link[05.2000 -] NHW11 25A,MINI FUSE |
90982-09012 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[05.2000 -] NHW11 30A,MINI FUSE |
90982-09013 |
from US $0.94 |
||
|
82620B
|
82620B
82620-47010 Block Assy, Fusible Link[05.2000 -] NHW11 |
82620-47010 |
US $48.19 |
||
|
82623
|
82623
82623-47010 Cover, Fusible Link, Lower[05.2000 -] NHW11 |
82623-47010 |
US $7.72 |
||
|
82642A
|
82642A
90987-02016
Relay Assy, Starter
[05.2000 -] NHW11 |
90987-02016 |
— | ||
| replacement | |||||
|
82642A
|
82642A
90987-02025 Relay[05.2000 -] NHW11 |
90987-02025 |
from US $44.54 |
||
|
82662A
|
82662A
82662-47010 Cover, Relay Block, Upper, No.1[05.2000 -] NHW11 |
82662-47010 |
US $15.14 |
||
|
82662B
|
82662B
82662-47030 Cover, Relay Block, Upper, No.2[05.2000 -] NHW11 |
82662-47030 |
US $29.12 |
||
|
82663
|
82663
82663-47010 Cover, Relay Block, Lower[05.2000 -] NHW11 |
82663-47010 |
US $10.63 |
||
|
82663A
|
82663A
82663-47030 Cover, Relay Block, Lower, No.2[05.2000 -] NHW11 |
82663-47030 |
US $26.21 |
||
|
82670A
|
82670A
82721-47010 Block Assy, Junction, No.1[05.2000 -] NHW11 |
82721-47010 |
US $251.89 |
||
|
82672A
|
82672A
82672-47040 Cover, Junction Block[05.2000 -] NHW11 |
82672-47040 |
US $32.18 |
||
|
82674
|
82674
82674-47010 Cover, Junction Block Lower[05.2000 -] NHW11 |
82674-47010 |
US $42.66 |
||
|
82742
|
82742
82742-47010 Block, Engine Room Relay, No.2[05.2000 -] NHW11 |
82742-47010 |
US $60.72 |
||
|
82743
|
82743
82743-47020 Block, Engine Room Relay, No.3[05.2000 -] NHW11 |
82743-47020 |
US $104.83 |
||
|
83380A
|
83380A
83380-47020 Switch Assy, PressurePRESSURE [05.2000 -] NHW11 |
83380-47020 |
US $361.09 |
||
|
85913A
|
85913A
90987-04002 Relay, Ignition, No.1[05.2000 -] NHW11 |
90987-04002 |
from US $24.67 |
||
|
85913C
|
85913C
90987-02012 Relay, Ignition, No.1[05.2000 -] NHW11 |
90987-02012 |
from US $26.99 |
||
|
85913D
|
85913D
90987-02012 Relay, Ignition, No.1[05.2000 -] NHW11 |
90987-02012 |
from US $26.99 |
||
|
85913E
|
85913E
90987-02016
Relay Assy, Starter
[05.2000 -] NHW11 |
90987-02016 |
— | ||
| replacement | |||||
|
85913E
|
85913E
90987-02025 Relay[05.2000 -] NHW11 |
90987-02025 |
from US $44.54 |
||
|
85916P
|
85916P
90987-02006 Relay[05.2000 -] NHW11 |
90987-02006 |
from US $27.28 |
||
|
85926
|
85926
85926-30020 Relay, Headlamp Dimmer[05.2000 -] NHW11 |
85926-30020 |
from US $55.03 |
||
|
85927
|
85927
90987-02012 Relay, Ignition, No.1[05.2000 -] NHW11 |
90987-02012 |
from US $26.99 |
||
|
85927A
|
85927A
90987-04004 Relay, Starter Cut[05.2000 -] NHW11 |
90987-04004 |
from US $42.71 |
||
|
85927B
|
85927B
90987-02012 Relay, Ignition, No.1[05.2000 -] NHW11 |
90987-02012 |
from US $26.99 |
||
|
85927G
|
85927G
90987-02012 Relay, Ignition, No.1[05.2000 -] NHW11 |
90987-02012 |
from US $26.99 |
||
|
85934
|
85934
90987-02012 Relay, Ignition, No.1[05.2000 -] NHW11 |
90987-02012 |
from US $26.99 |
||
|
85999
|
85999
85999-47030 Bracket, Combination Relay[05.2000 -] NHW11 |
85999-47030 |
US $6.41 |
||
|
86530
|
86530
90987-02012 Relay, Ignition, No.1[05.2000 -] NHW11 |
90987-02012 |
from US $26.99 |
||
|
91651B0618
|
91651B0618
91651-B0618 BOLT WWASHER |
91651-B0618 |
from US $1.60 |
||
|
91651G0618
|
91651G0618
91651-G0618 New Genuine Part |
91651-G0618 |
US $0.92 |
||
