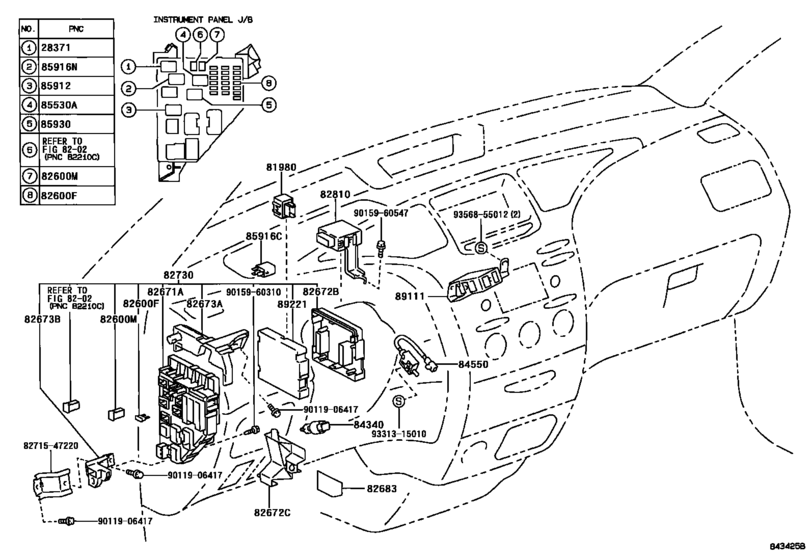

Switch & Relay & Computer ([05.2000 - ] COWL (0005- )) Diagram Toyota PRIUS
- Year
- 2000 - 2003
- Sales region
- U.S.A.
- Frame
- NHW11
- ENGINE
- 1NZFXE
- DESTINATION
- USA
- Model
- PRIUS
- From
- 05.2000
- To
- 08.2003
- Vehicle Model
- PRIUS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28371
|
28371
90987-02020 Relay, Ignition, No.1[05.2000 -] 1NZFXE..NHW11 |
90987-02020 |
from US $50.84 |
||
|
81980
|
81980
81980-47010 Flasher Assy, Turn Signal[05.2000 -] NHW11 |
81980-47010 |
US $101.92 |
||
|
82600F
|
82600F
90982-09007 Fusible Link[05.2000 -] NHW11 5A,MINI FUSE |
90982-09007 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[05.2000 -] NHW11 7.5A,MINI FUSE |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[05.2000 -] NHW11 10A,MINI FUSE |
90982-09009 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[05.2000 -] NHW11 15A,MINI FUSE |
90982-09010 |
from US $1.11 |
||
|
82600F
|
82600F
90982-09012 Fusible Link[05.2000 -] NHW11 25A,MINI FUSE |
90982-09012 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[05.2000 -] NHW11 30A,MINI FUSE |
90982-09013 |
from US $0.94 |
||
|
82600M
|
82600M
90982-10001 Instrument Panel Fusible Link[05.2000 -] NHW11 30A |
90982-10001 |
from US $3.84 |
||
|
82671A
|
82671A
82732-47020 Block, JunctionJUNCTION [05.2000 -] NHW11 |
82732-47020 |
US $152.88 |
||
|
82672B
|
82672B
82672-47050 Cover, Junction BlockJUNCTION BLOCK [05.2000 -] NHW11 |
82672-47050 |
US $28.54 |
||
|
82672C
|
82672C
82672-47070 Cover, Junction BlockJUNCTION BLOCK [05.2000 -] NHW11 |
82672-47070 |
US $17.18 |
||
|
82673A
|
82673A
82673-47040 Bracket, Junction BlockJUNCTION BLOCK [05.2000 -] NHW11 |
82673-47040 |
US $26.21 |
||
|
82673B
|
82673B
82673-47050 Bracket, Junction BlockJUNCTION BLOCK [05.2000 -] NHW11 |
82673-47050 |
US $16.02 |
||
|
82683
|
82683
82683-47030 Plate, Fuse Block CautionFUSE BLOCK CAUTION [05.2000 -] NHW11 |
82683-47030 |
US $3.64 |
||
|
82730
|
82730
82730-47020 Block Assy, Instrument Panel JunctionINSTRUMENT PANEL JUNCTION [05.2000 -] NHW11 |
82730-47020 |
US $1,055.60 |
||
|
82810
|
82810
82810-47010 Relay Assy, Running LightRUNNING LIGHT [05.2000 -] NHW11 |
82810-47010 |
US $209.66 |
||
|
84340
|
84340
84340-20060 Switch Assy, Stop Lamp[12.2000 -] NHW11 W(CRUISE CONTROL) |
84340-20060 |
from US $21.18 |
||
|
84340
|
84340
84340-32050 Switch Assy, Stop Lamp[05.2000 -] NHW11 |
84340-32050 |
from US $19.19 |
||
|
84340
|
84340
84340-32070 Switch Assy, Stop Lamp[05.2000 - 12.2000] NHW11 W(CRUISE CONTROL) |
84340-32070 |
US $59.55 |
||
| replacement | |||||
|
84340
|
84340
84340-20060 Switch Assy, Stop Lamp[05.2000 - 12.2000] NHW11 W(CRUISE CONTROL) |
84340-20060 |
from US $21.18 |
||
|
84550
|
84550
84080-47010 Switch Assy, Parking BrakePARKING BRAKE [05.2000 -] NHW11 |
84080-47010 |
US $34.80 |
||
|
85530A
|
85530A
90987-02020 Relay, Ignition, No.1[05.2000 -] NHW11 |
90987-02020 |
from US $50.84 |
||
|
85912
|
85912
90987-02020 Relay, Ignition, No.1[05.2000 -] NHW11 |
90987-02020 |
from US $50.84 |
||
|
85916C
|
85916C
90987-02020 Relay, Ignition, No.1[05.2000 -] NHW11 |
90987-02020 |
from US $50.84 |
||
|
85916N
|
85916N
90987-02020 Relay, Ignition, No.1[05.2000 -] NHW11 |
90987-02020 |
from US $50.84 |
||
|
85930
|
85930
90987-02020 Relay, Ignition, No.1[05.2000 -] NHW11 |
90987-02020 |
from US $50.84 |
||
|
89111
|
89111
89111-47010 Computer, Network Gateway[05.2000 -] NHW11 |
89111-47010 |
US $294.11 |
||
|
89221
|
89221
89221-49025
Computer, Multiplex Network Body
[05.2000 -] NHW11 |
89221-49025 |
— | ||
|
8271547220
|
8271547220
82715-47220 Bracket,wiring Harness Clamp |
82715-47220 |
US $11.79 |
||
|
9011906417
|
9011906417
90119-06417
New Genuine Part
|
90119-06417 |
— | ||
| replacement | |||||
|
9011906417
|
9011906417
90119-06297 BOLT |
90119-06297 |
US $1.92 |
||
|
9015960310
|
9015960310
90159-60310 SCREW |
90159-60310 |
US $1.60 |
||
|
9015960547
|
9015960547
90159-60547 New Genuine Part |
90159-60547 |
US $0.70 |
||
|
9331315010
|
9331315010
93313-15010 SCREW |
93313-15010 |
US $1.02 |
||
|
9356855012
|
9356855012
93568-55012 SCREW |
93568-55012 |
from US $0.96 |
||
