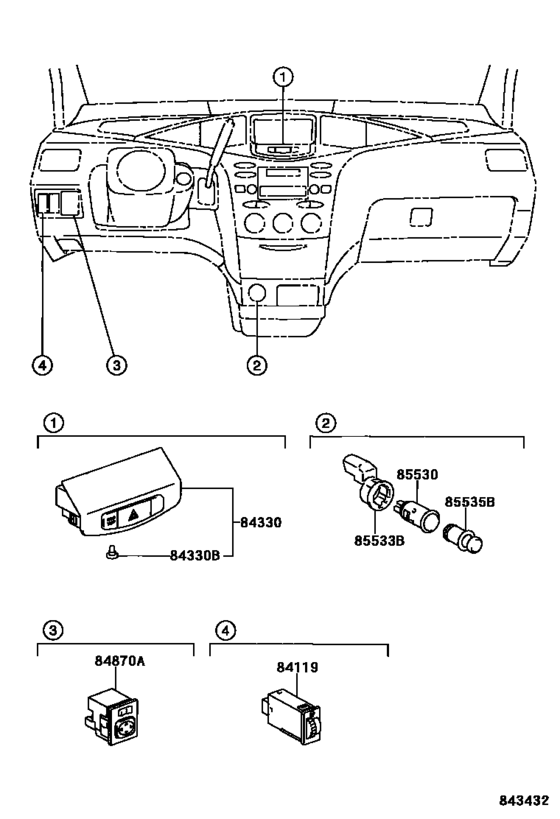

Switch & Relay & Computer ([05.2000 - ] INSTRUMENT PANEL (0005- )) Diagram Toyota PRIUS
- Year
- 2000 - 2003
- Sales region
- U.S.A.
- Frame
- NHW11
- ENGINE
- 1NZFXE
- DESTINATION
- USA
- Model
- PRIUS
- From
- 05.2000
- To
- 08.2003
- Vehicle Model
- PRIUS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84119
|
84119
84119-47010 Rheostat, Light ControlLIGHT CONTROL [05.2000 -] NHW11 |
84119-47010 |
US $133.95 |
||
|
84330
|
84330
84332-47020-B0 Switch Assy, Hazard Warning SignalHAZARD WARNING SIGNAL [05.2000 -] NHW11 AMETHYST,TRIM9# |
84332-47020-B0 |
US $109.20 |
||
|
84330B
|
84330B
84999-10310 Bulb, Air Conditioner Control[05.2000 -] NHW11 14V 0.91W |
84999-10310 |
from US $2.96 |
||
|
84870A
|
84870A
84870-34010 Switch Assy, Outer Mirror[05.2000 -] NHW11 |
84870-34010 |
from US $57.15 |
||
|
85530
|
85530
85530-47010 Socket Assy, Power Outlet, No.1[05.2000 -] NHW11 |
85530-47010 |
US $37.56 |
||
|
85533B
|
85533B
85533-30060 Lens, Cigarette Lighter Indicator[05.2000 -] NHW11 |
85533-30060 |
from US $28.73 |
||
|
85535B
|
85535B
85535-47010 Cover, Power Outlet Socket, No.2[05.2000 -] NHW11 |
85535-47010 |
US $7.16 |
