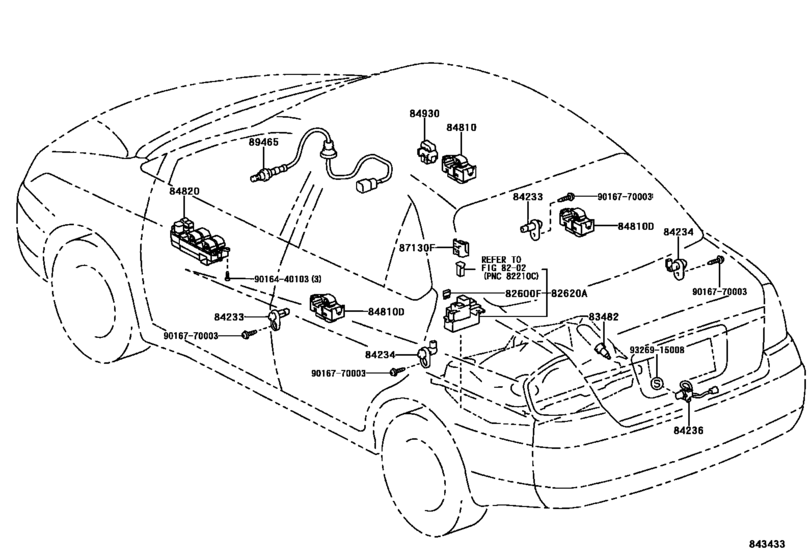

Switch & Relay & Computer ([05.2000 - ] DOOR,ROOF,FLOOR & LUGGAGE (0005- )) Diagram Toyota PRIUS
- Year
- 2000 - 2003
- Sales region
- U.S.A.
- Frame
- NHW11
- ENGINE
- 1NZFXE
- DESTINATION
- USA
- Model
- PRIUS
- From
- 05.2000
- To
- 08.2003
- Vehicle Model
- PRIUS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82600F
|
82600F
90982-09007 Fusible Link[05.2000 -] NHW11 5A,MINI FUSE |
90982-09007 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[05.2000 -] NHW11 7.5A,MINI FUSE |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[05.2000 -] NHW11 10A,MINI FUSE |
90982-09009 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[05.2000 -] NHW11 15A,MINI FUSE |
90982-09010 |
from US $1.11 |
||
|
82600F
|
82600F
90982-09012 Fusible Link[05.2000 -] NHW11 25A,MINI FUSE |
90982-09012 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[05.2000 -] NHW11 30A,MINI FUSE |
90982-09013 |
from US $0.94 |
||
|
82620A
|
82620A
82620-47030
Block Assy, Fusible Link
[05.2000 -] NHW11 |
82620-47030 |
— | ||
|
83482
|
83482
83482-02010 Sensor, Outer Ambient Temperature[05.2000 -] NHW11 |
83482-02010 |
US $64.75 |
||
|
84233
|
84233
84231-60070 Switch, Courtesy Lamp[05.2000 -] NHW11 |
84231-60070 |
from US $10.56 |
||
|
84234
|
84234
84231-53010 Switch Assy, Courtesy Lamp (For Front Door)[05.2000 -] NHW11 |
84231-53010 |
from US $10.56 |
||
|
84236
|
84236
84231-12130 Switch Assy, Courtesy Lamp(For Luggage Compartment Room)[05.2000 -] NHW11 |
84231-12130 |
US $17.26 |
||
| replacement | |||||
|
84236
|
84236
84321-12190
Switch Assy, Courtesy Lamp(For Luggage Compartment Room)
[05.2000 -] NHW11 |
84321-12190 |
— | ||
|
84810
|
84810
84030-47010 Switch Assy, Power Window Regulator[05.2000 -] NHW11 |
84030-47010 |
US $70.76 |
||
|
84810D
|
84810D
84030-47010 Switch Assy, Power Window Regulator[05.2000 -] NHW11 |
84030-47010 |
US $70.76 |
||
|
84820
|
84820
84040-47020 Master Switch Assy, Power Window RegulatorPOWER WINDOW REGULATOR [05.2000 -] NHW11 |
84040-47020 |
US $331.97 |
||
|
84930
|
84930
84930-47010-B0 Switch Assy, Door ControlDOOR CONTROL [05.2000 -] NHW11 AMETHYST,TRIM9# |
84930-47010-B0 |
US $53.73 |
||
| replacement | |||||
|
84930
|
84930
84930-47011-C0 Switch Assy, Door Control[05.2000 -] NHW11 AMETHYST,TRIM9# |
84930-47011-C0 |
US $53.73 |
||
|
87130F
|
87130F
90987-02012 Relay, Ignition, No.1[05.2000 - 02.2001] NHW11 |
90987-02012 |
from US $26.99 |
||
|
87130F
|
87130F
90987-02020 Relay, Ignition, No.1[02.2001 -] NHW11 |
90987-02020 |
from US $50.84 |
||
|
89465
|
89465
89465-47050 Sensor, OxygenOXYGEN [05.2000 -] NHW11 FRONT |
89465-47050 |
US $149.97 |
||
|
89465
|
89465
89465-47060 Sensor, OxygenOXYGEN [05.2000 -] NHW11 REAR |
89465-47060 |
US $149.97 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
US $1.12 |
||
|
9016770003
|
9016770003
90167-70003 New Genuine Part |
90167-70003 |
US $0.73 |
||
|
9326915008
|
9326915008
93269-15008 New Genuine Part |
93269-15008 |
US $0.96 |
||
