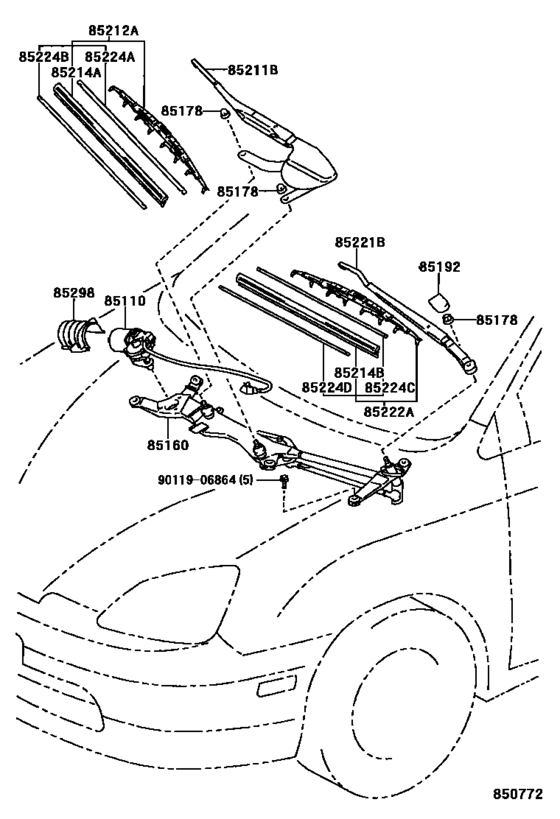

Windshield Wiper ([05.2000 - ] (0005- )) Diagram Toyota PRIUS
- Year
- 2000 - 2003
- Sales region
- U.S.A.
- Frame
- NHW11
- ENGINE
- 1NZFXE
- DESTINATION
- USA
- Model
- PRIUS
- From
- 05.2000
- To
- 08.2003
- Vehicle Model
- PRIUS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-47030 Motor Assy, Windshield WiperWINDSHIELD WIPER [05.2000 -] NHW11 |
85110-47030 |
US $416.42 |
||
|
85160
|
85160
85150-47030
Link Assy, Windshield Wiper
[05.2000 -] NHW11 |
85150-47030 |
— | ||
|
85178
|
85178
90176-10005 Nut (For Front Wiper Arm Setting)[05.2000 -] NHW11 PASSENGER SIDE |
90176-10005 |
from US $0.99 |
||
|
85178
|
85178
90179-10223 Nut (For Front Wiper Arm Setting)[05.2000 -] NHW11 DRIVER SIDE |
90179-10223 |
US $1.60 |
||
|
85192
|
85192
85292-13010 Cover, Windshield Wiper Arm[05.2000 -] NHW11 |
85292-13010 |
from US $4 |
||
|
85211B
|
85211B
85211-47020 Arm, Front Wiper, RhFR WIPER, RH [05.2000 -] NHW11 |
85211-47020 |
US $82.99 |
||
|
85212A
|
85212A
85212-35070 Blade, Fr Wiper, RhFR WIPER, RH [05.2000 -] NHW11 |
85212-35070 |
US $28.83 |
||
| replacement | |||||
|
85212A
|
85212A
85212-35071 Blade, Fr Wiper, RhFR WIPER, RH [05.2000 -] NHW11 |
85212-35071 |
from US $19.74 |
||
|
85214A
|
85214A
85214-12300 Rubber, Wiper, Lh[06.2001 -] NHW11 |
85214-12300 |
US $12.08 |
||
| replacement | |||||
|
85214A
|
85214A
85214-12301 Rubber, Wiper, Rh[06.2001 -] NHW11 |
85214-12301 |
from US $9.34 |
||
|
85214A
|
85214A
85214-35050 Rubber, Wiper, RhWIPER, RH [05.2000 - 06.2001] NHW11 |
85214-35050 |
US $12.08 |
||
| replacement | |||||
|
85214A
|
85214A
85214-12301 Rubber, Wiper, Rh[05.2000 - 06.2001] NHW11 |
85214-12301 |
from US $9.34 |
||
|
85214B
|
85214B
85214-44040 Rubber, Wiper, RhWIPER, LH [05.2000 - 06.2001] NHW11 |
85214-44040 |
US $12.08 |
||
| replacement | |||||
|
85214B
|
85214B
85214-50100 Rubber, Wiper, Rh[05.2000 - 06.2001] NHW11 |
85214-50100 |
from US $13.34 |
||
|
85214B
|
85214B
85214-50100 Rubber, Wiper, Rh[06.2001 -] NHW11 |
85214-50100 |
from US $13.34 |
||
|
85221B
|
85221B
85221-47020 Arm, Front Wiper, LhFR WIPER, LH [05.2000 -] NHW11 |
85221-47020 |
US $74.26 |
||
|
85222A
|
85222A
85222-50040 Blade, Fr Wiper, LhFR WIPER, LH [05.2000 -] NHW11 |
85222-50040 |
US $53.87 |
||
|
85224A
|
85224A
85224-35060 Plate, Wiper Rubber Backing, No.3[05.2000 -] NHW11 |
85224-35060 |
US $4.22 |
||
| replacement | |||||
|
85224A
|
85224A
85224-10190 Plate, Wiper Rubber Backing, No.1[05.2000 -] NHW11 |
85224-10190 |
US $2.62 |
||
|
85224B
|
85224B
85224-35060 Plate, Wiper Rubber Backing, No.3[05.2000 -] NHW11 |
85224-35060 |
US $4.22 |
||
| replacement | |||||
|
85224B
|
85224B
85224-10190 Plate, Wiper Rubber Backing, No.1[05.2000 -] NHW11 |
85224-10190 |
US $2.62 |
||
|
85224C
|
85224C
85224-44040
Plate, Wiper Rubber Backing, No.1
[05.2000 -] NHW11 |
85224-44040 |
— | ||
| replacement | |||||
|
85224C
|
85224C
85224-44010 Plate, Wiper Rubber Backing, No.1[05.2000 -] NHW11 |
85224-44010 |
US $6.03 |
||
|
85224D
|
85224D
85224-44040
Plate, Wiper Rubber Backing, No.1
[05.2000 -] NHW11 |
85224-44040 |
— | ||
| replacement | |||||
|
85224D
|
85224D
85224-44010 Plate, Wiper Rubber Backing, No.1[05.2000 -] NHW11 |
85224-44010 |
US $6.03 |
||
|
85298
|
85298
85111-47010 Cover, Wiper MotorWIPER MOTOR [05.2000 -] NHW11 |
85111-47010 |
US $14.12 |
||
|
9011906864
|
9011906864
90119-06864 BOLT W-WASHER |
90119-06864 |
US $1.28 |
||
