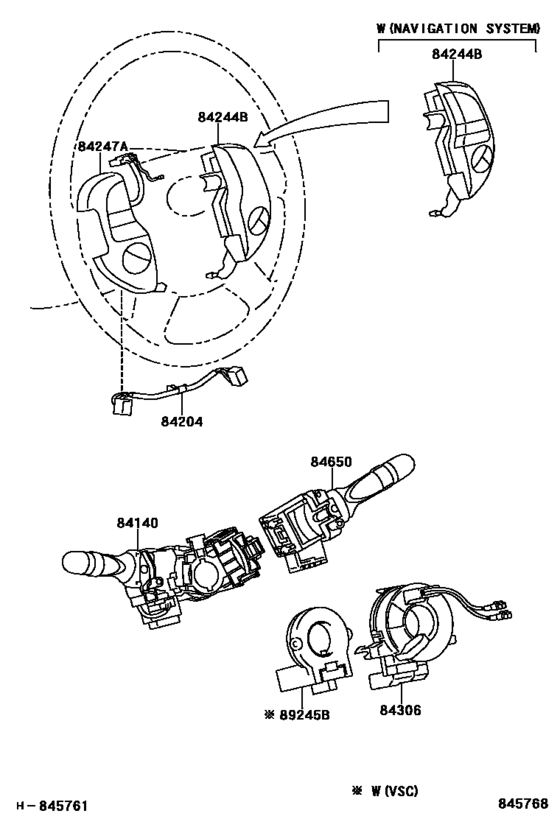

Switch & Relay & Computer ([08.2003 - ] IGNITION & COMBINATION SWITCH (0308- )) Diagram Toyota PRIUS
- Year
- 2003 - 2009
- Sales region
- U.S.A.
- Frame
- NHW20
- ENGINE
- 1NZFXE
- DESTINATION
- USA
- Model
- PRIUS
- From
- 08.2003
- To
- 03.2009
- Vehicle Model
- PRIUS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84140
|
84140
84140-47060 Switch Assy, Headlamp Dimmer[08.2003 - 09.2004] NHW20..USA |
84140-47060 |
US $131.04 |
||
| replacement | |||||
|
84140
|
84140
84140-52220
Switch Assy, Headlamp Dimmer
[08.2003 - 09.2004] NHW20..USA |
84140-52220 |
— | ||
|
84140
|
84140
84140-47061 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [09.2004 - 11.2005] NHW20..USA |
84140-47061 |
US $129.58 |
||
| replacement | |||||
|
84140
|
84140
84140-52220
Switch Assy, Headlamp Dimmer
[09.2004 - 11.2005] NHW20..USA |
84140-52220 |
— | ||
|
84140
|
84140
84140-47070 Switch Assy, Headlamp Dimmer[08.2003 - 09.2004] NHW20..CND; NHW20..USA W(DAYTIME RUNNING LIGHT SYSTEM) |
84140-47070 |
US $145.60 |
||
| replacement | |||||
|
84140
|
84140
84140-47120 Switch Assy, Headlamp Dimmer[08.2003 - 09.2004] NHW20..CND; NHW20..USA W(DAYTIME RUNNING LIGHT SYSTEM) |
84140-47120 |
US $91.73 |
||
|
84140
|
84140
84140-47071 Switch Assy, Headlamp Dimmer[09.2004 - 11.2005] NHW20..CND; NHW20..USA W(DAYTIME RUNNING LIGHT SYSTEM) |
84140-47071 |
US $145.60 |
||
| replacement | |||||
|
84140
|
84140
84140-47120 Switch Assy, Headlamp Dimmer[09.2004 - 11.2005] NHW20..CND; NHW20..USA W(DAYTIME RUNNING LIGHT SYSTEM) |
84140-47120 |
US $91.73 |
||
|
84140
|
84140
84140-47080 Switch Assy, Headlamp Dimmer[08.2003 - 09.2004] NHW20..USA W(VSC) |
84140-47080 |
US $145.60 |
||
| replacement | |||||
|
84140
|
84140
84140-47130 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [08.2003 - 09.2004] NHW20..USA W(VSC) |
84140-47130 |
from US $80.08 |
||
|
84140
|
84140
84140-47081 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [09.2004 - 11.2005] NHW20..USA W(VSC) |
84140-47081 |
US $145.60 |
||
| replacement | |||||
|
84140
|
84140
84140-47130 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [09.2004 - 11.2005] NHW20..USA W(VSC) |
84140-47130 |
from US $80.08 |
||
|
84140
|
84140
84140-47130 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [09.2007 - 03.2009] NHW20..USA HEADLAMP-DISCHARGE(2 LIGHTS) |
84140-47130 |
from US $80.08 |
||
|
84140
|
84140
84140-47140 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [09.2007 - 03.2009] NHW20..USA |
84140-47140 |
from US $97.84 |
||
|
84140
|
84140
84140-48050 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [08.2003 - 09.2004] NHW20..CND W(VSC); NHW20..USA W(VSC)&W(DAYTIME RUNNING LIGHT SYSTEM) |
84140-48050 |
US $164.53 |
||
| replacement | |||||
|
84140
|
84140
84140-48200
Switch Assy, Headlamp Dimmer
[08.2003 - 09.2004] NHW20..CND W(VSC); NHW20..USA W(VSC)&W(DAYTIME RUNNING LIGHT SYSTEM) |
84140-48200 |
— | ||
|
84140
|
84140
84140-48130 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [09.2004 - 11.2005] NHW20..CND W(VSC); NHW20..USA W(VSC)&W(DAYTIME RUNNING LIGHT SYSTEM) |
84140-48130 |
US $164.53 |
||
| replacement | |||||
|
84140
|
84140
84140-48200
Switch Assy, Headlamp Dimmer
[09.2004 - 11.2005] NHW20..CND W(VSC); NHW20..USA W(VSC)&W(DAYTIME RUNNING LIGHT SYSTEM) |
84140-48200 |
— | ||
|
84204
|
84204
84204-47010 Cable Sub-Assy, Steering Pad Switch[08.2003 - 11.2005] NHW20 |
84204-47010 |
US $33.78 |
||
|
84244B
|
84244B
84244-47010 Switch, Steering Pad, Rh[08.2003 - 11.2005] NHW20..USA EMV(W/NAVIGATION SYSTEM)-WITH |
84244-47010 |
US $117.48 |
||
|
84244B
|
84244B
84244-47020 Switch, Steering Pad, Rh[08.2003 - 11.2005] NHW20 |
84244-47020 |
US $80.08 |
||
|
84247A
|
84247A
84247-47010 Switch, Steering Pad, Lh[08.2003 - 11.2005] NHW20 |
84247-47010 |
US $100.46 |
||
|
84306
|
84306
84306-48030
Cable Sub-Assy, Spiral
[08.2003 - 11.2005] NHW20 |
84306-48030 |
— | ||
| replacement | |||||
|
84306
|
84306
84306-48031 CABLE SUBASSY[08.2003 - 11.2005] NHW20 |
84306-48031 |
from US $154.19 |
||
|
84650
|
84650
84652-47030 Switch Assy, Windshield Wiper[08.2003 - 09.2004] NHW20 |
84652-47030 |
US $133.95 |
||
| replacement | |||||
|
84650
|
84650
84652-47031 Switch Assy, Windshield WiperWINDSHIELD WIPER [08.2003 - 09.2004] NHW20 |
84652-47031 |
US $131.04 |
||
|
84650
|
84650
84652-47031 Switch Assy, Windshield WiperWINDSHIELD WIPER [09.2004 - 11.2005] NHW20 |
84652-47031 |
US $131.04 |
||
|
84650
|
84650
84652-48030 Switch Assy, Windshield WiperWINDSHIELD WIPER [08.2003 - 09.2004] NHW20 WITH(INTERMITTENT REAR WIPER) |
84652-48030 |
US $157.25 |
||
| replacement | |||||
|
84650
|
84650
84652-47040 Switch Assy, Windshield WiperWINDSHIELD WIPER [08.2003 - 09.2004] NHW20 WITH(INTERMITTENT REAR WIPER) |
84652-47040 |
US $168.90 |
||
|
84650
|
84650
84652-48060 Switch Assy, Windshield WiperWINDSHIELD WIPER [09.2004 - 11.2005] NHW20 WITH(INTERMITTENT REAR WIPER) |
84652-48060 |
US $155.79 |
||
| replacement | |||||
|
84650
|
84650
84652-47040 Switch Assy, Windshield WiperWINDSHIELD WIPER [09.2004 - 11.2005] NHW20 WITH(INTERMITTENT REAR WIPER) |
84652-47040 |
US $168.90 |
||
|
84650
|
84650
84652-48180 Switch Assy, Windshield WiperWINDSHIELD WIPER [09.2007 - 03.2009] NHW20 |
84652-48180 |
from US $94.35 |
||
|
89245B
|
89245B
89245-48020 Sensor, Steering[08.2003 - 11.2005] NHW20 W(VSC) |
89245-48020 |
US $260.62 |
||
| replacement | |||||
|
89245B
|
89245B
89245-30080 Sensor, Steering[08.2003 - 11.2005] NHW20 W(VSC) |
89245-30080 |
from US $211.98 |
||
