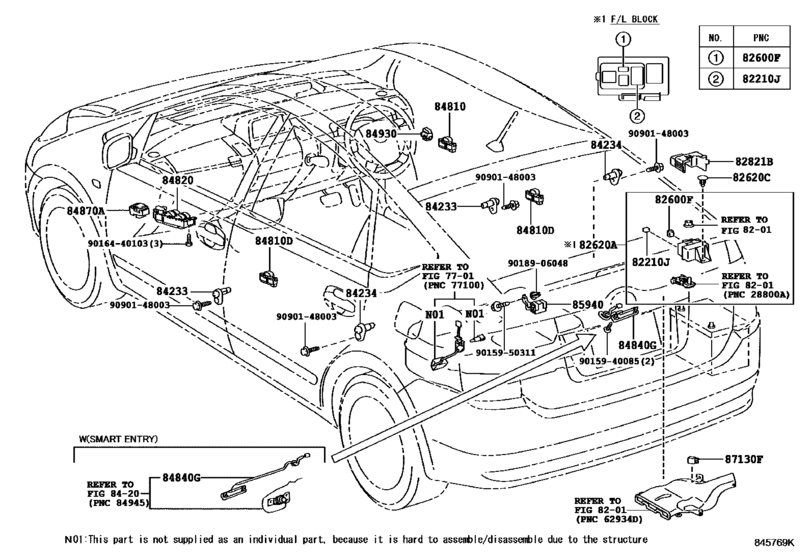

Switch & Relay & Computer ([08.2003 - ] DOOR,ROOF,FLOOR & LUGGAGE (0308- )) Diagram Toyota PRIUS
- Year
- 2003 - 2009
- Sales region
- U.S.A.
- Frame
- NHW20
- ENGINE
- 1NZFXE
- DESTINATION
- USA
- Model
- PRIUS
- From
- 08.2003
- To
- 03.2009
- Vehicle Model
- PRIUS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82210J
|
82210J
90982-08254 Fusible Link[08.2003 - 11.2005] NHW20 120A,TERMINAL:MALE,PACIFIC |
90982-08254 |
US $7.04 |
||
|
82210J
|
82210J
90982-08274 Fusible Link[08.2003 - 11.2005] NHW20 120A,TERMINAL:MALE,YAZAKI |
90982-08274 |
from US $7.68 |
||
|
82210J
|
82210J
90982-08294 Fusible Link[08.2003 - 08.2004] NHW20 40A,TERMINAL:FEMALE |
90982-08294 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08295 Fusible Link[08.2003 - 08.2004] NHW20 30A,TERMINAL:FEMALE |
90982-08295 |
from US $6.24 |
||
|
82600F
|
82600F
90982-09007 Fusible Link[08.2003 - 11.2005] NHW20 5A,MINI FUSE |
90982-09007 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[08.2003 - 11.2005] NHW20 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[08.2003 - 11.2005] NHW20 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[08.2003 - 11.2005] NHW20 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[08.2003 - 08.2004] NHW20 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[08.2003 - 11.2005] NHW20 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[08.2003 - 11.2005] NHW20 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82620A
|
82620A
82620-47040 Block Assy, Fusible Link[08.2003 - 11.2005] NHW20 |
82620-47040 |
US $55.56 |
||
|
82620C
|
82620C
90467-05164-C0 Clip(For Deck Boad)[08.2003 - 11.2005] NHW20 BLACK |
90467-05164-C0 |
from US $0.74 |
||
|
82821B
|
82821B
82821-47050 Cover, Connector[08.2003 - 11.2005] NHW20 |
82821-47050 |
US $14.56 |
||
|
84233
|
84233
84231-60070 Switch, Courtesy Lamp[08.2003 - 11.2005] NHW20 |
84231-60070 |
from US $10.56 |
||
|
84234
|
84234
84231-60070 Switch, Courtesy Lamp[08.2003 - 11.2005] NHW20 |
84231-60070 |
from US $10.56 |
||
|
84810
|
84810
84810-12080 Switch Assy, Power Window Regulator[08.2003 - 07.2004] NHW20 |
84810-12080 |
from US $31.35 |
||
|
84810D
|
84810D
84810-12080 Switch Assy, Power Window Regulator[08.2003 - 11.2005] NHW20 |
84810-12080 |
from US $31.35 |
||
|
84820
|
84820
84820-47020 Master Switch Assy, Power Window Regulator[08.2003 - 10.2003] NHW20 |
84820-47020 |
US $343.62 |
||
| replacement | |||||
|
84820
|
84820
84820-47050 Master Switch Assy, Power Window RegulatorPOWER WINDOW REGULATOR [08.2003 - 10.2003] NHW20 |
84820-47050 |
US $343.62 |
||
|
84820
|
84820
84820-47021 Master Switch Assy, Power Window RegulatorPOWER WINDOW REGULATOR [11.2003 - 07.2004] NHW20 |
84820-47021 |
US $345.07 |
||
| replacement | |||||
|
84820
|
84820
84820-47050 Master Switch Assy, Power Window RegulatorPOWER WINDOW REGULATOR [11.2003 - 07.2004] NHW20 |
84820-47050 |
US $343.62 |
||
|
84820
|
84820
84820-47050 Master Switch Assy, Power Window RegulatorPOWER WINDOW REGULATOR [08.2004 - 11.2005] NHW20 |
84820-47050 |
US $343.62 |
||
|
84840G
|
84840G
84840-47010 Switch Assy, Back Door Opener[08.2003 - 11.2005] NHW20 |
84840-47010 |
from US $48.71 |
||
|
84840G
|
84840G
84840-47020 Switch Assy, Back Door Opener[08.2003 - 11.2005] NHW20 W(SMART ENTRY) |
84840-47020 |
from US $50.64 |
||
|
84870A
|
84870A
84872-52030 Switch Assy, Outer Mirror[08.2003 - 11.2005] NHW20 |
84872-52030 |
US $53.29 |
||
|
84930
|
84930
84930-33080 Switch Assy, Door ControlDOOR CONTROL [08.2003 - 07.2004] NHW20 |
84930-33080 |
US $53.87 |
||
|
84930
|
84930
84930-33100 Switch Assy, Door ControlDOOR CONTROL [08.2004 - 11.2005] NHW20 |
84930-33100 |
US $41.35 |
||
|
85940
|
85940
85940-47010 Relay Assy, Windshield Wiper[08.2003 - 11.2005] NHW20 WITH(INTERMITTENT REAR WIPER) |
85940-47010 |
US $125.22 |
||
|
87130F
|
87130F
90987-02027 Relay[08.2003 - 11.2005] NHW20 |
90987-02027 |
from US $44.54 |
||
|
87130F
|
87130F
90987-02028 Relay, Water Pump[11.2006 - 03.2009] NHW20 |
90987-02028 |
from US $44.54 |
||
|
9015940085
|
9015940085
90159-40085 SCREW |
90159-40085 |
from US $0.72 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.84 |
||
| replacement | |||||
|
9015950311
|
9015950311
90159-A0034 SCREW WWASHER |
90159-A0034 |
US $22.20 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
from US $0.84 |
||
|
9018906048
|
9018906048
90189-06048 GROMET |
90189-06048 |
US $2.24 |
||
|
9090148003
|
9090148003
90901-48003 Screw Hex Lobular |
90901-48003 |
US $1.76 |
||
