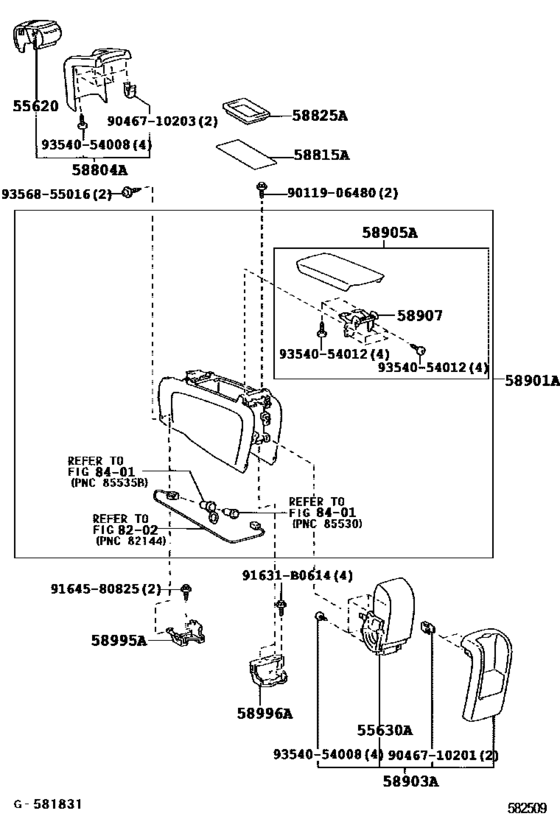

Console Box & Bracket ([11.2005 - ] (0511- )) Diagram Toyota PRIUS
- Year
- 2005 - 2009
- Sales region
- General
- Frame
- NHW20
- ENGINE
- 1NZFXE
- DESTINATION
- CHI
- Model
- PRIUS
- From
- 11.2005
- To
- 04.2009
- Vehicle Model
- PRIUS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55620
|
55620
55620-47010 Holder Assy, Instrument Panel Cup[11.2005 -] NHW20 |
55620-47010 |
US $116.48 |
||
|
55630A
|
55630A
55630-47020-B0 Holder, Rear Console Box, Cup[11.2005 - 01.2008] NHW20 MD.GRAY,TRIM1# |
55630-47020-B0 |
US $133.95 |
||
| replacement | |||||
|
55630A
|
55630A
55630-47021-B0 Holder, Rear Console Box, Cup[11.2005 - 01.2008] NHW20 MD.GRAY,TRIM1# |
55630-47021-B0 |
US $110.66 |
||
|
55630A
|
55630A
55630-47021-B0 Holder, Rear Console Box, Cup[02.2008 - 04.2009] NHW20 MD.GRAY,TRIM1# |
55630-47021-B0 |
US $110.66 |
||
|
58804A
|
58804A
58804-47010 Panel Sub-Assy, Console, Upper[11.2005 -] NHW20 |
58804-47010 |
US $165.98 |
||
|
58815A
|
58815A
58815-47020 Carpet, Console Box[11.2005 -] NHW20 |
58815-47020 |
US $4.95 |
||
|
58825A
|
58825A
58825-47010 Pocket, Console Box[11.2005 -] NHW20 |
58825-47010 |
US $30.43 |
||
|
58901A
|
58901A
58901-47030-B3
Box Sub-Assy, Console, Rear
[11.2005 - 02.2007] NHW20 MD.GRAY,TRIM1# |
58901-47030-B3 |
— | ||
| replacement | |||||
|
58901A
|
58901A
58901-47070-B0
Box Sub-Assy, Console, Rear
[11.2005 - 02.2007] NHW20 MD.GRAY,TRIM1# |
58901-47070-B0 |
— | ||
|
58901A
|
58901A
58901-47050-B2 Box Sub-Assy, Console, Rear[11.2005 - 02.2007] NHW20 SEAT COVER MATERIAL-LEATHER,MD.GRAY,TRIM1# |
58901-47050-B2 |
US $669.76 |
||
| replacement | |||||
|
58901A
|
58901A
58901-47080-B0
Box Sub-Assy, Console, Rear
[11.2005 - 02.2007] NHW20 SEAT COVER MATERIAL-LEATHER,MD.GRAY,TRIM1# |
58901-47080-B0 |
— | ||
|
58901A
|
58901A
58901-47070-B0
Box Sub-Assy, Console, Rear
[02.2007 - 04.2009] NHW20 MD.GRAY,TRIM1# |
58901-47070-B0 |
— | ||
|
58901A
|
58901A
58901-47080-B0
Box Sub-Assy, Console, Rear
[02.2007 - 04.2009] NHW20 SEAT COVER MATERIAL-LEATHER,MD.GRAY,TRIM1# |
58901-47080-B0 |
— | ||
|
58903A
|
58903A
58903-47010-B0 Panel Sub-Assy, Console Rear End[11.2005 - 01.2008] NHW20 MD.GRAY,TRIM1# |
58903-47010-B0 |
US $216.94 |
||
| replacement | |||||
|
58903A
|
58903A
58903-47011-B0 Panel Sub-Assy, Console Rear End[11.2005 - 01.2008] NHW20 MD.GRAY,TRIM1# |
58903-47011-B0 |
US $180.54 |
||
|
58903A
|
58903A
58903-47011-B0 Panel Sub-Assy, Console Rear End[02.2008 - 04.2009] NHW20 MD.GRAY,TRIM1# |
58903-47011-B0 |
US $180.54 |
||
|
58905A
|
58905A
58905-47030-B3 Door Sub-Assy, Console Compartment, RearCONSOLE COMPARTMENT, REAR [11.2005 - 04.2009] NHW20 MD.GRAY,TRIM1# |
58905-47030-B3 |
US $294.11 |
||
| replacement | |||||
|
58905A
|
58905A
58905-47030-B1 Door Sub-Assy, Console Compartment, Rear[11.2005 - 04.2009] NHW20 MD.GRAY,TRIM1# |
58905-47030-B1 |
US $244.61 |
||
|
58905A
|
58905A
58905-47040-B2 Door Sub-Assy, Console Compartment, RearCONSOLE COMPARTMENT, REAR [11.2005 - 02.2007] NHW20 SEAT COVER MATERIAL-LEATHER,MEDIUM GRAY,TRIM1# |
58905-47040-B2 |
US $419.33 |
||
| replacement | |||||
|
58905A
|
58905A
58905-47040-B1 Door Sub-Assy, Console Compartment, Rear[11.2005 - 02.2007] NHW20 SEAT COVER MATERIAL-LEATHER,MEDIUM GRAY,TRIM1# |
58905-47040-B1 |
US $419.33 |
||
|
58907
|
58907
58907-47010 Hinge Sub-Assy, Console Compartment Door[11.2005 -] NHW20 |
58907-47010 |
US $38 |
||
|
58995A
|
58995A
58995-47010 Bracket, Console Box Mounting, No.1[11.2005 -] NHW20 |
58995-47010 |
US $13.10 |
||
|
58996A
|
58996A
58996-47010 Bracket, Console Box Mounting, No.2[11.2005 -] NHW20 |
58996-47010 |
US $42.81 |
||
|
91631B0614
|
91631B0614
91631-B0614 BOLT WWASHER |
91631-B0614 |
from US $0.88 |
||
|
9011906480
|
9011906480
90119-06480 BOLT |
90119-06480 |
from US $0.86 |
||
|
9046710201
|
9046710201
90467-10201 Clip, Cover Sub-Assy, Position Indicator Housing |
90467-10201 |
from US $0.96 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9164580825
|
9164580825
91645-80825 BOLT WWASHER |
91645-80825 |
US $1.60 |
||
|
9354054008
|
9354054008
93540-54008 New Genuine Part |
93540-54008 |
US $0.44 |
||
|
9354054012
|
9354054012
93540-54012 Screw, Headlamp |
93540-54012 |
US $1.44 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
