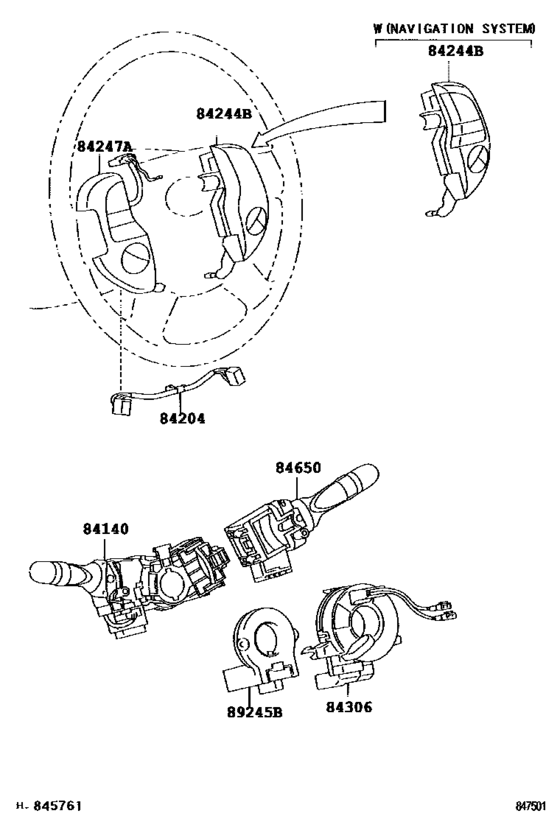

Switch & Relay & Computer ([11.2005 - ] IGNITION & COMBINATION SWITCH (0511- )) Diagram Toyota PRIUS
- Year
- 2005 - 2009
- Sales region
- General
- Frame
- NHW20
- ENGINE
- 1NZFXE
- DESTINATION
- CHI
- Model
- PRIUS
- From
- 11.2005
- To
- 04.2009
- Vehicle Model
- PRIUS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84140
|
84140
84140-42100
Switch Assy, Headlamp Dimmer
[11.2005 - 09.2008] NHW20 |
84140-42100 |
— | ||
| replacement | |||||
|
84140
|
84140
84140-42101 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [11.2005 - 09.2008] NHW20 |
84140-42101 |
US $90.27 |
||
|
84140
|
84140
84140-42101 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [09.2008 -] NHW20 |
84140-42101 |
US $90.27 |
||
|
84204
|
84204
84204-47010 Cable Sub-Assy, Steering Pad Switch[11.2005 -] NHW20 |
84204-47010 |
US $33.78 |
||
|
84244B
|
84244B
84244-47010 Switch, Steering Pad, Rh[11.2005 - 08.2006] NHW20 EMV(W/NAVIGATION SYSTEM)-WITH(W/O MAP DISC) |
84244-47010 |
US $117.48 |
||
|
84244B
|
84244B
84244-47020 Switch, Steering Pad, Rh[11.2005 -] NHW20 |
84244-47020 |
US $80.08 |
||
|
84247A
|
84247A
84247-47010 Switch, Steering Pad, Lh[11.2005 -] NHW20 |
84247-47010 |
US $100.46 |
||
|
84306
|
84306
84306-48030
Cable Sub-Assy, Spiral
[11.2005 -] NHW20 |
84306-48030 |
— | ||
| replacement | |||||
|
84306
|
84306
84306-48031 CABLE SUBASSY[11.2005 -] NHW20 |
84306-48031 |
from US $154.19 |
||
|
84650
|
84650
84652-47040 Switch Assy, Windshield WiperWINDSHIELD WIPER [12.2006 - 09.2008] NHW20 |
84652-47040 |
US $168.90 |
||
|
84650
|
84650
84652-48060 Switch Assy, Windshield WiperWINDSHIELD WIPER [11.2005 - 11.2006] NHW20 |
84652-48060 |
US $155.79 |
||
| replacement | |||||
|
84650
|
84650
84652-47040 Switch Assy, Windshield WiperWINDSHIELD WIPER [11.2005 - 11.2006] NHW20 |
84652-47040 |
US $168.90 |
||
|
84650
|
84650
84652-48180 Switch Assy, Windshield WiperWINDSHIELD WIPER [09.2008 -] NHW20 |
84652-48180 |
from US $94.35 |
||
|
89245B
|
89245B
89245-48020 Sensor, Steering[11.2005 - 04.2009] NHW20 |
89245-48020 |
US $260.62 |
||
| replacement | |||||
|
89245B
|
89245B
89245-30080 Sensor, Steering[11.2005 - 04.2009] NHW20 |
89245-30080 |
from US $211.98 |
||
