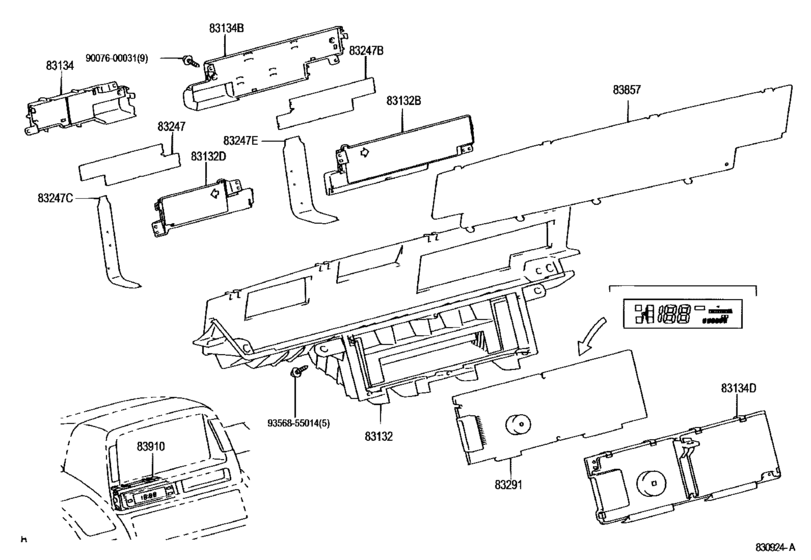

Meter ([08.2003 - ] (0308- )) Diagram Toyota PRIUS
- Year
- 2003 - 2009
- Sales region
- U.S.A.
- Frame
- NHW20
- ENGINE
- 1NZFXE
- DESTINATION
- CND
- Model
- PRIUS
- From
- 08.2003
- To
- 03.2009
- Vehicle Model
- PRIUS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83132
|
83132
83841-47101
Case, Combination Meter
[04.2004 - 11.2005] NHW20 |
83841-47101 |
— | ||
|
83132
|
83132
83841-47120
Case, Combination Meter
[08.2003 - 04.2004] NHW20..CND |
83841-47120 |
— | ||
| replacement | |||||
|
83132
|
83132
83841-47101
Case, Combination Meter
[08.2003 - 04.2004] NHW20..CND |
83841-47101 |
— | ||
|
83132B
|
83132B
83841-47300
Case, Combination Meter No.3
[11.2005 - 03.2009] NHW20..CND |
83841-47300 |
— | ||
|
83132B
|
83132B
83843-47120
Case, Combination Meter No.3
[08.2003 - 11.2005] NHW20..CND |
83843-47120 |
— | ||
|
83132D
|
83132D
83842-47120 Case, Combination Meter, No.2COMBINATION METER, NO.2 [08.2003 - 11.2005] NHW20..CND |
83842-47120 |
US $29.12 |
||
|
83134
|
83134
83821-47100 Cover, Combination Meter, No.1COMBINATION METER, NO.1 [08.2003 - 11.2005] NHW20 |
83821-47100 |
US $16.60 |
||
|
83134B
|
83134B
83822-47100 Cover, Combination Meter, No.2COMBINATION METER, NO.2 [08.2003 - 11.2005] NHW20 |
83822-47100 |
US $8.30 |
||
|
83134D
|
83134D
83823-47100 Cover, Combination Meter, No.3COMBINATION METER, NO.3 [08.2003 - 11.2005] NHW20 |
83823-47100 |
US $36.69 |
||
|
83247
|
83247
83861-47100
Plate, Meter Circuit
[08.2003 - 11.2005] NHW20 |
83861-47100 |
— | ||
|
83247
|
83247
83861-47280
Plate, Meter Circuit
[11.2005 - 03.2009] NHW20 |
83861-47280 |
— | ||
|
83247B
|
83247B
83861-47120
Plate, Meter Circuit, No.2
[08.2003 - 11.2005] NHW20..CND |
83861-47120 |
— | ||
|
83247B
|
83247B
83861-47300
Plate, Meter Circuit, No.2
[11.2005 - 03.2009] NHW20..CND |
83861-47300 |
— | ||
|
83247C
|
83247C
83863-47100 Plate, Mater Circuit, No.3MATER CIRCUIT, NO.3 [08.2003 - 11.2005] NHW20 |
83863-47100 |
US $6.41 |
||
|
83247E
|
83247E
83864-47100 Plate, Mater Circuit, No.4MATER CIRCUIT, NO.4 [08.2003 - 11.2005] NHW20 |
83864-47100 |
US $5.68 |
||
|
83291
|
83291
83291-47120
Computer, Combination Meter
[08.2003 - 04.2004] NHW20..CND |
83291-47120 |
— | ||
| replacement | |||||
|
83291
|
83291
83291-47310
Computer, Combination Meter
[08.2003 - 04.2004] NHW20..CND |
83291-47310 |
— | ||
|
83291
|
83291
83291-47121
Computer, Combination Meter
[04.2004 - 08.2004] NHW20..CND |
83291-47121 |
— | ||
| replacement | |||||
|
83291
|
83291
83291-47310
Computer, Combination Meter
[04.2004 - 08.2004] NHW20..CND |
83291-47310 |
— | ||
|
83291
|
83291
83291-47160
Computer, Combination Meter
[08.2004 - 11.2005] NHW20..CND |
83291-47160 |
— | ||
| replacement | |||||
|
83291
|
83291
83291-47330
Computer, Combination Meter
[08.2004 - 11.2005] NHW20..CND |
83291-47330 |
— | ||
|
83291
|
83291
83291-47240
Computer, Combination Meter
[11.2005 - 01.2007] NHW20..CND |
83291-47240 |
— | ||
| replacement | |||||
|
83291
|
83291
83291-47370
Computer, Combination Meter
[11.2005 - 01.2007] NHW20..CND |
83291-47370 |
— | ||
|
83291
|
83291
83291-47241
Computer, Combination Meter
[02.2007 - 02.2009] NHW20..CND |
83291-47241 |
— | ||
| replacement | |||||
|
83291
|
83291
83291-47370
Computer, Combination Meter
[02.2007 - 02.2009] NHW20..CND |
83291-47370 |
— | ||
|
83291
|
83291
83291-47242
Computer, Combination Meter
[03.2009 - 03.2009] NHW20..CND |
83291-47242 |
— | ||
| replacement | |||||
|
83291
|
83291
83291-47370
Computer, Combination Meter
[03.2009 - 03.2009] NHW20..CND |
83291-47370 |
— | ||
|
83857
|
83857
83857-47100 Reflector, Combination Meter, No.1COMBINATION METER, NO.1 [08.2003 - 11.2005] NHW20 |
83857-47100 |
US $69.74 |
||
|
83910
|
83910
83910-47030 Clock Assy[08.2003 - 11.2003] NHW20 |
83910-47030 |
US $423.70 |
||
| replacement | |||||
|
83910
|
83910
83910-47040 Clock Assy[08.2003 - 11.2003] NHW20 |
83910-47040 |
US $423.70 |
||
|
83910
|
83910
83910-47040 Clock Assy[11.2003 - 11.2005] NHW20 |
83910-47040 |
US $423.70 |
||
|
9007600031
|
9007600031
90076-00031 New Genuine Part |
90076-00031 |
US $4.48 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $1.12 |
||
