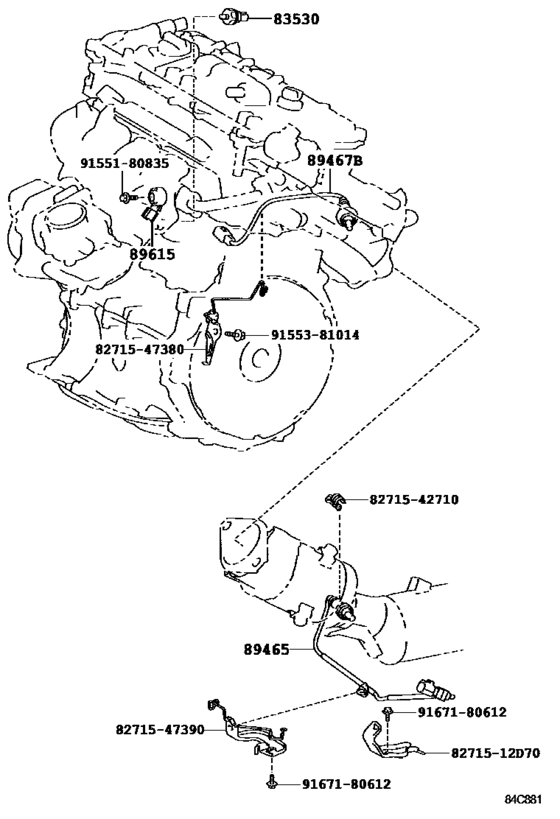

Switch & Relay & Computer ([01.2012 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ (1201- )) Diagram Toyota PRIUS
- Year
- 2012 - 2015
- Sales region
- Japan
- Frame
- ZVW35
- grade
- L
- ENGINE
- 2ZRFXE
- TRANSMISSION
- ATM
- Model
- PRIUS (PLUG-IN HBD)
- From
- 01.2012
- To
- 06.2015
- Gear Shift Type
- CVFC
- Vehicle Model
- PRIUS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-12050 Switch Assy, Oil Pressure (For Engine)[10.2013 - 02.2014] ZVW35 ＹＡＺＡＫＩ |
83530-12050 |
US $29.27 |
||
| replacement | |||||
|
83530
|
83530
83530-12060 Switch Assy, Oil Pressure (For Engine)[10.2013 - 02.2014] ZVW35 ＹＡＺＡＫＩ |
83530-12060 |
from US $24.96 |
||
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[01.2012 -] ZVW35 ＤＥＮＳＯ |
83530-28020 |
from US $26.60 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [01.2012 -] ZVW35 ＤＥＮＳＯ |
83530-60020 |
from US $25.43 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[01.2012 -] ZVW35 ＤＥＮＳＯ |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [01.2012 - 10.2013] ZVW35 ＹＡＺＡＫＩ |
83530-60020 |
from US $25.43 |
||
|
89465
|
89465
89465-47080 Sensor, OxygenOXYGEN [01.2012 -] ZVW35 |
89465-47080 |
US $115.44 |
||
|
89467B
|
89467B
89467-52060 Sensor, OxygenAIR FUEL RATIO [01.2012 -] ZVW35 |
89467-52060 |
from US $146.52 |
||
|
89615
|
89615
89615-20090 Sensor, Knock Control[01.2012 -] ZVW35 |
89615-20090 |
from US $36.02 |
||
|
8271512D70
|
8271512D70
82715-12D70
Bracket,wiring Harness Clamp
|
82715-12D70 |
— | ||
|
8271542710
|
8271542710
82715-42710 Bracket,wiring Harness Clamp |
82715-42710 |
US $2.80 |
||
|
8271547380
|
8271547380
82715-47380
Bracket,wiring Harness Clamp
|
82715-47380 |
— | ||
|
8271547390
|
8271547390
82715-47390
Bracket,wiring Harness Clamp
|
82715-47390 |
— | ||
|
9155180835
|
9155180835
91551-80835 Bolt (For Front Oil Pump Setting) |
91551-80835 |
from US $0.80 |
||
|
9155381014
|
9155381014
91553-81014 New Genuine Part |
91553-81014 |
US $1.31 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.68 |
||
