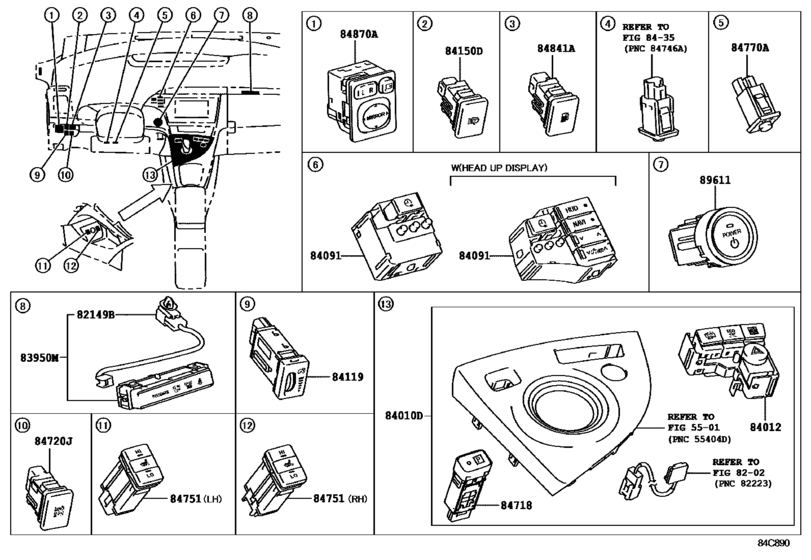

Switch & Relay & Computer ([01.2012 - ] INSTRUMENT PANEL (1201- )) Diagram Toyota PRIUS
- Year
- 2012 - 2015
- Sales region
- U.S.A.
- Frame
- ZVW35
- grade
- S
- ENGINE
- 2ZRFXE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- PRIUS (PLUG-IN HBD)
- From
- 01.2012
- To
- 06.2015
- Gear Shift Type
- CVFC
- Vehicle Model
- PRIUS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82149B
|
82149B
82149-47020 Wire, Instrument Panel, No.5INSTRUMENT PANEL, NO.5 [01.2012 - 06.2015] ZVW35 |
82149-47020 |
US $8.01 |
||
|
83950M
|
83950M
83950-47110
Lamp Assy, Telltale
[01.2012 - 06.2015] ZVW35 |
83950-47110 |
— | ||
|
84010D
|
84010D
84010-47110
Control & Panel Assy, Integration
[01.2012 - 06.2015] ZVW35 |
84010-47110 |
— | ||
|
84012
|
84012
84012-47100
Control & Panel Sub-Assy, Integration
[01.2012 - 12.2012] ZVW35 |
84012-47100 |
— | ||
| replacement | |||||
|
84012
|
84012
84012-47101
Control & Panel Sub-Assy, Integration
[01.2012 - 12.2012] ZVW35 |
84012-47101 |
— | ||
|
84012
|
84012
84012-47101
Control & Panel Sub-Assy, Integration
[01.2013 - 06.2015] ZVW35 |
84012-47101 |
— | ||
|
84091
|
84091
84091-47090
Switch Set, Satellite
[01.2012 - 06.2015] ZVW35..L,S |
84091-47090 |
— | ||
|
84119
|
84119
84119-42020 Rheostat, Light Control[01.2012 - 01.2015] ZVW35 |
84119-42020 |
US $56.06 |
||
| replacement | |||||
|
84119
|
84119
84119-42021 Rheostat, Light Control[01.2012 - 01.2015] ZVW35 |
84119-42021 |
US $50.96 |
||
|
84119
|
84119
84119-42021 Rheostat, Light Control[02.2015 - 06.2015] ZVW35 |
84119-42021 |
US $50.96 |
||
|
84718
|
84718
84718-47060
Switch, Transmission Shift Main
[01.2012 - 12.2012] ZVW35 |
84718-47060 |
— | ||
| replacement | |||||
|
84718
|
84718
84718-47061
Switch, Transmission Shift Main
[01.2012 - 12.2012] ZVW35 |
84718-47061 |
— | ||
|
84718
|
84718
84718-47061
Switch, Transmission Shift Main
[01.2013 - 06.2015] ZVW35 |
84718-47061 |
— | ||
|
84720J
|
84720J
84721-47010
Switch Assy, Pattern Select
[01.2012 - 11.2014] ZVW35 |
84721-47010 |
— | ||
| replacement | |||||
|
84720J
|
84720J
84721-47011
Switch Assy, Pattern Select
[01.2012 - 11.2014] ZVW35 |
84721-47011 |
— | ||
|
84720J
|
84720J
84721-47011
Switch Assy, Pattern Select
[12.2014 - 06.2015] ZVW35 |
84721-47011 |
— | ||
|
84751
|
84751
84751-47040 Switch, Seat Heater[01.2012 - 01.2015] ZVW35 RH |
84751-47040 |
US $60.72 |
||
| replacement | |||||
|
84751
|
84751
84751-47042 Switch, Seat Heater[01.2012 - 01.2015] ZVW35 RH |
84751-47042 |
US $55.18 |
||
|
84751
|
84751
84751-47041 Switch, Seat Heater[02.2015 - 03.2015] ZVW35 RH |
84751-47041 |
US $60.72 |
||
| replacement | |||||
|
84751
|
84751
84751-47042 Switch, Seat Heater[02.2015 - 03.2015] ZVW35 RH |
84751-47042 |
US $55.18 |
||
|
84751
|
84751
84751-47042 Switch, Seat Heater[03.2015 - 06.2015] ZVW35 RH |
84751-47042 |
US $55.18 |
||
|
84751
|
84751
84751-47050 Switch, Seat Heater[01.2012 - 01.2015] ZVW35 LH |
84751-47050 |
US $60.72 |
||
| replacement | |||||
|
84751
|
84751
84751-47052 Switch, Seat Heater[01.2012 - 01.2015] ZVW35 LH |
84751-47052 |
US $55.18 |
||
|
84751
|
84751
84751-47051 Switch, Seat Heater[02.2015 - 03.2015] ZVW35 LH |
84751-47051 |
US $60.72 |
||
| replacement | |||||
|
84751
|
84751
84751-47052 Switch, Seat Heater[02.2015 - 03.2015] ZVW35 LH |
84751-47052 |
US $55.18 |
||
|
84751
|
84751
84751-47052 Switch, Seat Heater[03.2015 - 06.2015] ZVW35 LH |
84751-47052 |
US $55.18 |
||
|
84841A
|
84841A
84841-76010 Switch, Fuel Lid Opener[01.2012 - 11.2014] ZVW35 |
84841-76010 |
US $39.60 |
||
| replacement | |||||
|
84841A
|
84841A
84841-76011 Switch, Fuel Lid Opener[01.2012 - 11.2014] ZVW35 |
84841-76011 |
US $35.96 |
||
|
84841A
|
84841A
84841-76011 Switch, Fuel Lid Opener[12.2014 - 03.2015] ZVW35 |
84841-76011 |
US $35.96 |
||
|
84870A
|
84870A
84870-28030
Switch Assy, Outer Mirror
[01.2012 - 06.2015] ZVW35 |
84870-28030 |
— | ||
|
89611
|
89611
89611-75042 Switch, Push Start[01.2012 - 02.2012] ZVW35 |
89611-75042 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-75044 Switch, Push Start[01.2012 - 02.2012] ZVW35 |
89611-75044 |
US $210.24 |
||
|
89611
|
89611
89611-75043 Switch, Push Start[03.2012 - 06.2015] ZVW35 |
89611-75043 |
US $135.41 |
||
| replacement | |||||
|
89611
|
89611
89611-75044 Switch, Push Start[03.2012 - 06.2015] ZVW35 |
89611-75044 |
US $210.24 |
||
