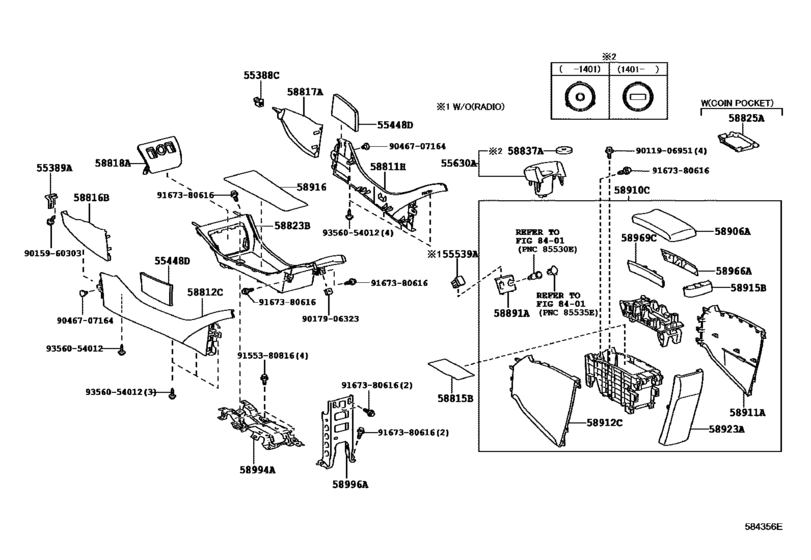

Console Box & Bracket ([05.2012 - ] (1205- )LHD) Diagram Toyota PRIUS
- Year
- 2012 - 2016
- Sales region
- Europe
- Frame
- ZVW35
- grade
- S
- ENGINE
- 2ZRFXE
- TRANSMISSION
- ATM
- Model
- PRIUS (PLUG-IN HBD)
- From
- 05.2012
- To
- 04.2016
- Gear Shift Type
- CVFC
- Vehicle Model
- PRIUS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55388C
|
55388C
55388-42010 Bracket, Console Mounting, RhFINISH PANEL MOUNTING, NO.2 [05.2012 -] ZVW35..LHD |
55388-42010 |
US $2.68 |
||
|
55389A
|
55389A
55389-12040 Bracket, Console Mounting, LhFINISH PANEL MOUNTING, NO.1 [05.2012 -] ZVW35..LHD |
55389-12040 |
US $4.95 |
||
|
55448D
|
55448D
55448-47070 Cushion, Instrument Panel Finish Panel, No.1INSTRUMENT PANEL FINISH PANEL, NO.1 [05.2012 -] ZVW35 |
55448-47070 |
US $6.84 |
||
|
55539A
|
55539A
55539-47070 Cover, Spare Switch Hole[05.2012 - 07.2015] ZVW35..LHD AUDIO-RADIO LESS 6SPEAKER |
55539-47070 |
US $7.04 |
||
|
55630A
|
55630A
55630-47030 Holder, Rear Console Box, Cup[05.2012 -] ZVW35 |
55630-47030 |
US $82.99 |
||
|
58811H
|
58811H
58811-47010-C0 Box, Console, Rh[05.2012 - 04.2016] ZVW35 BLACK,TRIM2# |
58811-47010-C0 |
US $50.52 |
||
|
58811H
|
58811H
58811-47010-G0
Box, Console, Rh
[05.2012 - 07.2015] ZVW35..LHD AQUA,TRIM6# |
58811-47010-G0 |
— | ||
|
58812C
|
58812C
58812-47010-C0 Box, Console, Lh[05.2012 - 04.2016] ZVW35 BLACK,TRIM2# |
58812-47010-C0 |
US $50.52 |
||
|
58812C
|
58812C
58812-47010-G0 Box, Console, LhCONSOLE, LH [05.2012 - 07.2015] ZVW35..LHD AQUA,TRIM6# |
58812-47010-G0 |
US $59.06 |
||
|
58815B
|
58815B
58815-47050 Carpet, Console Box[05.2012 -] ZVW35 |
58815-47050 |
US $3.30 |
||
|
58816B
|
58816B
58816-47020-C0
Insert, Console Box
[05.2012 - 04.2016] ZVW35..LHD BLACK,TRIM2# |
58816-47020-C0 |
— | ||
|
58816B
|
58816B
58816-47020-G0
Insert, Console Box
[05.2012 - 07.2015] ZVW35..LHD AQUA,TRIM6# |
58816-47020-G0 |
— | ||
|
58817A
|
58817A
58817-47020-C0
Insert, Console Box, Front No.2
[05.2012 - 04.2016] ZVW35..LHD BLACK,TRIM2# |
58817-47020-C0 |
— | ||
|
58817A
|
58817A
58817-47020-G0
Insert, Console Box
[05.2012 - 07.2015] ZVW35..LHD AQUA,TRIM6# |
58817-47020-G0 |
— | ||
|
58818A
|
58818A
58818-47060-C0 Cover, Console Box, Fr[05.2012 - 04.2016] ZVW35 BLACK,TRIM2# |
58818-47060-C0 |
US $14.71 |
||
|
58818A
|
58818A
58818-47060-G0 Cover, Console Box, Fr[05.2012 - 07.2015] ZVW35 AQUA,TRIM6# |
58818-47060-G0 |
US $17.30 |
||
|
58823B
|
58823B
58823-47020-C0 Box, Console Compartment[05.2012 - 04.2016] ZVW35 BLACK,TRIM2# |
58823-47020-C0 |
US $68 |
||
|
58823B
|
58823B
58823-47020-G0 Box, Console CompartmentCONSOLE COMPARTMENT [05.2012 - 07.2015] ZVW35..LHD AQUA,TRIM6# |
58823-47020-G0 |
US $68 |
||
|
58825A
|
58825A
58825-47020 Pocket, Console BoxCONSOLE BOX [05.2012 -] ZVW35 COIN POCKET-WITH(REAR CONSOLE) |
58825-47020 |
US $24.81 |
||
|
58837A
|
58837A
55633-50030 Support, Instrument Panel Cup Holder, No.1[01.2014 -] ZVW35 |
55633-50030 |
US $4.80 |
||
|
58837A
|
58837A
58837-47010 Support, Instrument Panel Cup Holder, No.1[05.2012 - 01.2014] ZVW35 |
58837-47010 |
US $6.12 |
||
|
58891A
|
58891A
58819-47010 Filler, Console Box, Front[05.2012 -] ZVW35 |
58819-47010 |
US $8.74 |
||
|
58906A
|
58906A
58906-47041-B2 Pad Sub-Assy, Console Compartment Door[05.2012 - 11.2012] ZVW35 GRAY,TRIM2# |
58906-47041-B2 |
US $139.78 |
||
| replacement | |||||
|
58906A
|
58906A
58906-47042-B2 Pad Sub-Assy, Console Compartment Door[05.2012 - 11.2012] ZVW35 GRAY,TRIM2# |
58906-47042-B2 |
US $181.44 |
||
|
58906A
|
58906A
58906-47041-G2 Pad Sub-Assy, Console Compartment Door[05.2012 - 11.2012] ZVW35 AQUA,TRIM6# |
58906-47041-G2 |
US $139.78 |
||
| replacement | |||||
|
58906A
|
58906A
58906-47042-G2 Pad Sub-Assy, Console Compartment Door[05.2012 - 11.2012] ZVW35 AQUA,TRIM6# |
58906-47042-G2 |
US $181.44 |
||
|
58906A
|
58906A
58906-47042-B2 Pad Sub-Assy, Console Compartment Door[12.2012 - 04.2016] ZVW35 GRAY,TRIM2# |
58906-47042-B2 |
US $181.44 |
||
|
58906A
|
58906A
58906-47042-G2 Pad Sub-Assy, Console Compartment Door[12.2012 - 07.2015] ZVW35 AQUA,TRIM6# |
58906-47042-G2 |
US $181.44 |
||
|
58906A
|
58906A
58906-47050-C2 Pad Sub-Assy, Console Compartment Door[05.2012 - 04.2016] ZVW35..LHD SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
58906-47050-C2 |
US $195.84 |
||
|
58906A
|
58906A
58906-47050-G1 Pad Sub-Assy, Console Compartment Door[05.2012 - 04.2016] ZVW35..LHD SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
58906-47050-G1 |
US $195.84 |
||
|
58910C
|
58910C
58901-47190-B3 Box Assy, Console, Rear[05.2012 - 11.2012] ZVW35 GRAY/BLACK,TRIM2# |
58901-47190-B3 |
US $650.83 |
||
| replacement | |||||
|
58910C
|
58910C
58901-47191-B3 Box Assy, Console, Rear[05.2012 - 11.2012] ZVW35 GRAY/BLACK,TRIM2# |
58901-47191-B3 |
US $541.63 |
||
|
58910C
|
58910C
58901-47190-G2 Box Assy, Console, Rear[05.2012 - 11.2012] ZVW35 AQUA,TRIM6# |
58901-47190-G2 |
US $650.83 |
||
| replacement | |||||
|
58910C
|
58910C
58901-47191-G2 Box Assy, Console, Rear[05.2012 - 11.2012] ZVW35 AQUA,TRIM6# |
58901-47191-G2 |
US $541.63 |
||
|
58910C
|
58910C
58901-47191-B3 Box Assy, Console, Rear[12.2012 - 04.2016] ZVW35 GRAY/BLACK,TRIM2# |
58901-47191-B3 |
US $541.63 |
||
|
58910C
|
58910C
58901-47191-G2 Box Assy, Console, Rear[12.2012 - 07.2015] ZVW35 AQUA,TRIM6# |
58901-47191-G2 |
US $541.63 |
||
|
58910C
|
58910C
58901-47200-C2 Box Assy, Console, Rear[05.2012 - 04.2016] ZVW35..LHD SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
58901-47200-C2 |
US $566.38 |
||
|
58910C
|
58910C
58901-47200-G1 Box Assy, Console, Rear[05.2012 - 04.2016] ZVW35..LHD SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
58901-47200-G1 |
US $566.38 |
||
|
58911A
|
58911A
58911-47050-C0 Panel, Box Side, No.1[05.2012 - 04.2016] ZVW35 BLACK,TRIM2# |
58911-47050-C0 |
US $71.93 |
||
| replacement | |||||
|
58911A
|
58911A
58911-47051-C0 Panel, Box Side, No.1[05.2012 - 04.2016] ZVW35 BLACK,TRIM2# |
58911-47051-C0 |
US $71.93 |
||
|
58911A
|
58911A
58911-47050-G0 Panel, Box Side, No.1[05.2012 - 07.2015] ZVW35 AQUA,TRIM6# |
58911-47050-G0 |
US $71.93 |
||
| replacement | |||||
|
58911A
|
58911A
58911-47051-G0 Panel, Box Side, No.1[05.2012 - 07.2015] ZVW35 AQUA,TRIM6# |
58911-47051-G0 |
US $71.93 |
||
|
58912C
|
58912C
58912-47060-C0 Panel, Box Side, No.2[05.2012 - 04.2016] ZVW35 BLACK,TRIM2# |
58912-47060-C0 |
US $71.93 |
||
| replacement | |||||
|
58912C
|
58912C
58912-47061-C0 Panel, Box Side, No.2[05.2012 - 04.2016] ZVW35 BLACK,TRIM2# |
58912-47061-C0 |
US $71.93 |
||
|
58912C
|
58912C
58912-47060-G0 Panel, Box Side, No.2[05.2012 - 07.2015] ZVW35 AQUA,TRIM6# |
58912-47060-G0 |
US $71.93 |
||
| replacement | |||||
|
58912C
|
58912C
58912-47061-G0 Panel, Box Side, No.2[05.2012 - 07.2015] ZVW35 AQUA,TRIM6# |
58912-47061-G0 |
US $71.93 |
||
|
58915B
|
58915B
58915-47020-C0 Cover, Console Compartment Door Box, Rear[05.2012 - 04.2016] ZVW35 BLACK,TRIM2# |
58915-47020-C0 |
US $8.74 |
||
|
58915B
|
58915B
58915-47020-G0 Cover, Console Compartment Door Box, Rear[05.2012 - 07.2015] ZVW35 AQUA,TRIM6# |
58915-47020-G0 |
US $8.74 |
||
|
58916
|
58916
58916-47010-C1 Mat, Box Bottom[05.2012 - 04.2016] ZVW35 BLACK,TRIM2#,6# |
58916-47010-C1 |
US $16.26 |
||
|
58923A
|
58923A
58923-47030-C0 Panel, Console Rear End[05.2012 - 04.2016] ZVW35 BLACK,TRIM2# |
58923-47030-C0 |
US $43.24 |
||
|
58923A
|
58923A
58923-47030-G0 Panel, Console Rear End[05.2012 - 07.2015] ZVW35 AQUA,TRIM6# |
58923-47030-G0 |
US $43.24 |
||
|
58966A
|
58966A
58966-47020-C0 Insert, Console Compartment Door, No.1[05.2012 - 04.2016] ZVW35 BLACK,TRIM2# |
58966-47020-C0 |
US $11.79 |
||
|
58966A
|
58966A
58966-47020-G0 Insert, Console Compartment Door, No.1[05.2012 - 07.2015] ZVW35 AQUA,TRIM6# |
58966-47020-G0 |
US $11.79 |
||
|
58969C
|
58969C
58969-47020-C0 Insert, Console Compartment Door, No.2[05.2012 - 04.2016] ZVW35 BLACK,TRIM2# |
58969-47020-C0 |
US $11.79 |
||
|
58969C
|
58969C
58969-47020-G0 Insert, Console Compartment Door, No.2[05.2012 - 07.2015] ZVW35 AQUA,TRIM6# |
58969-47020-G0 |
US $11.79 |
||
|
58994A
|
58994A
58994-47010 Bracket, Console Box Mounting, No.4CONSOLE BOX MOUNTING, NO.4 [05.2012 -] ZVW35 |
58994-47010 |
US $25.04 |
||
|
58996A
|
58996A
58996-47020 Bracket, Console Box Mounting, No.2CONSOLE BOX MOUNTING, NO.2 [05.2012 -] ZVW35 |
58996-47020 |
US $18.05 |
||
|
9011906951
|
9011906951
90119-06951 BOLT WWASHER |
90119-06951 |
US $1.28 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
from US $1.12 |
||
|
9017906323
|
9017906323
90179-06323 Nut |
90179-06323 |
US $1.76 |
||
|
9046707164
|
9046707164
90467-07164 Clip(For Front Fender Apron Seal) |
90467-07164 |
from US $1.29 |
||
|
9155380816
|
9155380816
91553-80816 Bolt (For Transmission Control Cable Bracket) |
91553-80816 |
from US $0.86 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9356054012
|
9356054012
93560-54012 Screw |
93560-54012 |
from US $0.70 |
||
