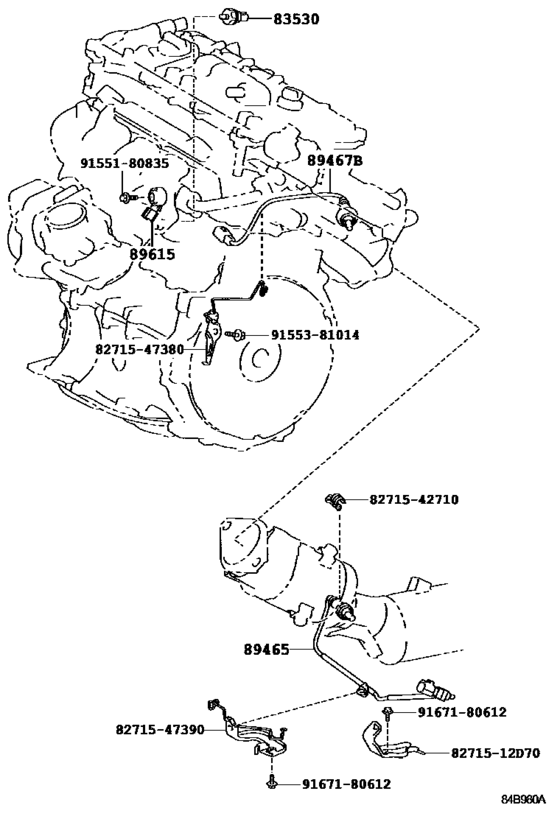

Switch & Relay & Computer ([09.2011 - ] ENGINE (1109- )) Diagram Toyota PRIUS
- Year
- 2011 - 2018
- Sales region
- U.S.A.
- Frame
- ZVW41
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- DESTINATION
- USA
- Model
- PRIUS V
- From
- 09.2011
- Seating Capacity
- 05S
- Vehicle Model
- PRIUS V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-12050 Switch Assy, Oil Pressure (For Engine)[10.2013 - 02.2014] ZVW41 |
83530-12050 |
US $29.27 |
||
| replacement | |||||
|
83530
|
83530
83530-12060 Switch Assy, Oil Pressure (For Engine)[10.2013 - 02.2014] ZVW41 |
83530-12060 |
from US $24.96 |
||
|
83530
|
83530
83530-12060 Switch Assy, Oil Pressure (For Engine)[02.2014 - 11.2014] ZVW41 YAZAKI |
83530-12060 |
from US $24.96 |
||
|
83530
|
83530
83530-12070
Switch Assy, Oil Pressure (For Engine)
[02.2014 - 11.2014] ZVW41 DENSO |
83530-12070 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-12060 Switch Assy, Oil Pressure (For Engine)[02.2014 - 11.2014] ZVW41 DENSO |
83530-12060 |
from US $24.96 |
||
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[09.2011 - 10.2013] ZVW41 |
83530-28020 |
from US $26.60 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [09.2011 - 10.2013] ZVW41 |
83530-60020 |
from US $25.55 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[09.2011 - 10.2013] ZVW41 |
83530-0E010 |
from US $51.25 |
||
|
89465
|
89465
89465-47080 Sensor, OxygenOXYGEN [09.2011 - 08.2013] ZVW41 |
89465-47080 |
US $115.44 |
||
|
89465
|
89465
89465-76010 Sensor, Oxygen[08.2013 - 11.2014] ZVW41 |
89465-76010 |
US $283.74 |
||
|
89467B
|
89467B
89467-52060 Sensor, OxygenAIR FUEL RATIO [09.2011 - 11.2014] ZVW41 |
89467-52060 |
from US $146.52 |
||
|
89615
|
89615
89615-20090 Sensor, Knock Control[09.2011 - 11.2014] ZVW41 |
89615-20090 |
from US $36.02 |
||
|
8271512D70
|
8271512D70
82715-12D70
Bracket,wiring Harness Clamp
|
82715-12D70 |
— | ||
|
8271542710
|
8271542710
82715-42710 Bracket,wiring Harness Clamp |
82715-42710 |
US $2.80 |
||
|
8271547380
|
8271547380
82715-47380
Bracket,wiring Harness Clamp
|
82715-47380 |
— | ||
|
8271547390
|
8271547390
82715-47390
Bracket,wiring Harness Clamp
|
82715-47390 |
— | ||
|
9155180835
|
9155180835
91551-80835 Bolt (For Front Oil Pump Setting) |
91551-80835 |
from US $0.80 |
||
|
9155381014
|
9155381014
91553-81014 New Genuine Part |
91553-81014 |
US $1.31 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.68 |
||
