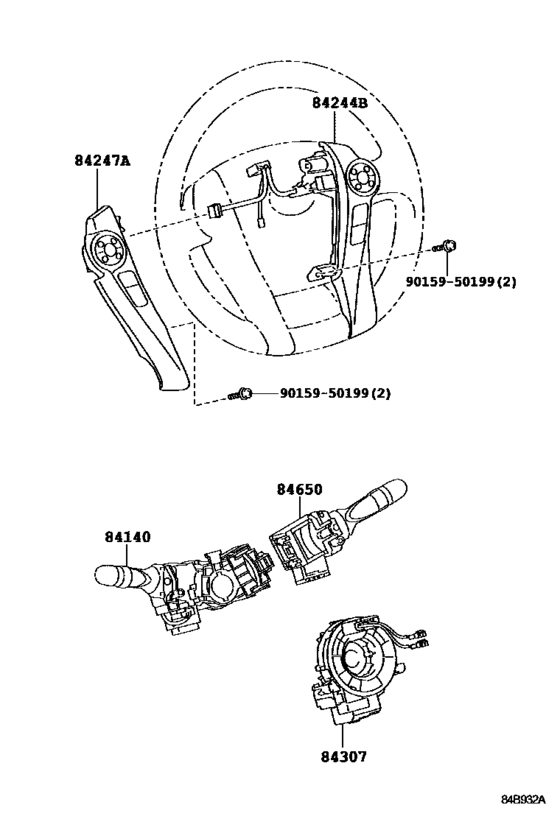

Switch & Relay & Computer ([09.2011 - ] STEERING (1109- )) Diagram Toyota PRIUS
- Year
- 2011 - 2018
- Sales region
- U.S.A.
- Frame
- ZVW41
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- DESTINATION
- USA
- Model
- PRIUS V
- From
- 09.2011
- Seating Capacity
- 05S
- Vehicle Model
- PRIUS V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84140
|
84140
84140-33202 Switch Assy, Headlamp Dimmer[09.2011 - 08.2013] ZVW41..USA LX-TOURING PACKAGE&DAYTIME RUNNING LIGHT SYSTEM-WITH; ZVW41..USA DAYTIME RUNNING LIGHT SYSTEM-WITH |
84140-33202 |
US $94.64 |
||
|
84140
|
84140
84140-33211
Switch Assy, Headlamp Dimmer
[08.2013 - 11.2014] ZVW41..USA LIGHT CONTROL SYSTEM-WITH |
84140-33211 |
— | ||
|
84140
|
84140
84140-47151
Switch Assy, Headlamp Dimmer
[08.2013 - 11.2014] ZVW41..USA |
84140-47151 |
— | ||
|
84140
|
84140
84140-48201
Switch Assy, Headlamp Dimmer
[11.2014 -] ZVW41..USA KOREA SPEC; ZVW41..CND US GRADE5 |
84140-48201 |
— | ||
|
84140
|
84140
84140-52220 Switch Assy, Headlamp Dimmer[09.2011 - 08.2013] ZVW41..USA |
84140-52220 |
US $91.24 |
||
|
84140
|
84140
84140-76020
Switch Assy, Headlamp Dimmer
[09.2011 - 08.2013] ZVW41..USA LX-TOURING PACKAGE |
84140-76020 |
— | ||
|
84244B
|
84244B
84244-47080-B0 Switch, Steering Pad, Rh[09.2011 - 10.2013] ZVW41 ORNAMENT SILVER,TRIM1#,4#,6# |
84244-47080-B0 |
US $141.23 |
||
| replacement | |||||
|
84244B
|
84244B
84244-47081-B0 Switch, Steering Pad, Rh[09.2011 - 10.2013] ZVW41 ORNAMENT SILVER,TRIM1#,4#,6# |
84244-47081-B0 |
US $220.32 |
||
|
84244B
|
84244B
84244-47081-B0 Switch, Steering Pad, Rh[11.2013 - 11.2014] ZVW41 ORNAMENT SILVER,TRIM1#,4#,6# |
84244-47081-B0 |
US $220.32 |
||
|
84244B
|
84244B
84244-47090-B0 Switch, Steering Pad, Rh[09.2011 - 08.2013] ZVW41 PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,ORNAMENT SILVER,T RIM1#,4#,6# |
84244-47090-B0 |
US $148.51 |
||
| replacement | |||||
|
84244B
|
84244B
84244-47091-B0 Switch, Steering Pad, Rh[09.2011 - 08.2013] ZVW41 PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,ORNAMENT SILVER,T RIM1#,4#,6# |
84244-47091-B0 |
US $148.51 |
||
|
84244B
|
84244B
84244-47091-B0 Switch, Steering Pad, Rh[11.2013 - 11.2014] ZVW41 LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOT H,ORNAMENT SILVER,TRIM1#,4#,6#; ZVW41 LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,OR NAMENT SILVER,TRIM1#,4#,6 |
84244-47091-B0 |
US $148.51 |
||
|
84244B
|
84244B
84244-47260-B0 Switch, Steering Pad, Rh[11.2014 - 12.2017] ZVW41 SILVER METALLIC,TRIM1#,2#,4# |
84244-47260-B0 |
US $133.95 |
||
|
84244B
|
84244B
84244-47270-B0 Switch, Steering Pad, Rh[11.2014 - 12.2017] ZVW41..USA US GRADE5&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&STEERING SWITCH-WITH(W/DISTANCE CON TROL SWITCH)&LANE KEEPING SYSTEM-WITH,SILVER METALLIC,TRIM1#,2#,4#; ZVW41..CND US GRADE5&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&LANE KEEPING SY |
84244-47270-B0 |
US $141.23 |
||
|
84244B
|
84244B
84244-47280-B0
Switch, Steering Pad, Rh
[11.2014 - 12.2017] ZVW41..USA US GRADE2&STEERING SWITCH-WITH(W/AIR CONDITIONER CONTROL SWITCH)&AUDIO-*DA & 6SPEA KER & *BT,SILVER METALLIC,TRIM1#,2# |
84244-47280-B0 |
— | ||
|
84247A
|
84247A
84247-47060-B0 Switch, Steering Pad, Lh[09.2011 - 08.2013] ZVW41 PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,ORNAMENT SILVER,T RIM1#,4#,6#; ZVW41 AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,ORNAMENT SILVER,TRIM1#,4#,6# |
84247-47060-B0 |
US $155.79 |
||
| replacement | |||||
|
84247A
|
84247A
84247-47061-B0 Switch, Steering Pad, Lh[09.2011 - 08.2013] ZVW41 PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,ORNAMENT SILVER,T RIM1#,4#,6#; ZVW41 AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,ORNAMENT SILVER,TRIM1#,4#,6# |
84247-47061-B0 |
US $155.79 |
||
|
84247A
|
84247A
84247-47061-B0 Switch, Steering Pad, Lh[11.2013 - 11.2014] ZVW41 LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOT H,ORNAMENT SILVER,TRIM1#,4#,6#; ZVW41 LX-TOURING PACKAGE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,ORNAMENT SILVER,TRIM1#,4 #,6#; ZVW41 LUXURY PACKAG |
84247-47061-B0 |
US $155.79 |
||
|
84247A
|
84247A
84247-47070-B0
Switch, Steering Pad, Lh
[09.2011 - 10.2013] ZVW41 ORNAMENT SILVER,TRIM1#,4#,6# |
84247-47070-B0 |
— | ||
| replacement | |||||
|
84247A
|
84247A
84247-47071-B0 Switch, Steering Pad, Lh[09.2011 - 10.2013] ZVW41 ORNAMENT SILVER,TRIM1#,4#,6# |
84247-47071-B0 |
US $148.51 |
||
|
84247A
|
84247A
84247-47071-B0 Switch, Steering Pad, Lh[11.2013 - 11.2014] ZVW41 ORNAMENT SILVER,TRIM1#,4#,6# |
84247-47071-B0 |
US $148.51 |
||
|
84247A
|
84247A
84247-47200-B0 Switch, Steering Pad, Lh[11.2014 -] ZVW41 SILVER METALLIC,TRIM1#,2#,4# |
84247-47200-B0 |
US $141.23 |
||
|
84307
|
84307
84307-47020
Cable Sub-Assy, Spiral
[09.2011 - 11.2014] ZVW41 |
84307-47020 |
— | ||
| replacement | |||||
|
84307
|
84307
84307-47021 Cable Sub-Assy, Spiral[09.2011 - 11.2014] ZVW41 |
84307-47021 |
from US $359.91 |
||
|
84307
|
84307
84307-47050
Cable Sub-Assy, Spiral W/sensor
[05.2016 -] ZVW41 |
84307-47050 |
— | ||
|
84650
|
84650
84652-47100 Switch Assy, Windshield Wiper[11.2014 -] ZVW41..USA |
84652-47100 |
US $101.92 |
||
|
84650
|
84650
84652-52290 Switch Assy, Windshield Wiper[11.2014 -] ZVW41..USA KOREA SPEC |
84652-52290 |
US $110.66 |
||
|
84650
|
84650
84652-76010 Switch Assy, Windshield Wiper[09.2011 - 11.2014] ZVW41..USA |
84652-76010 |
US $97.55 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.78 |
||
