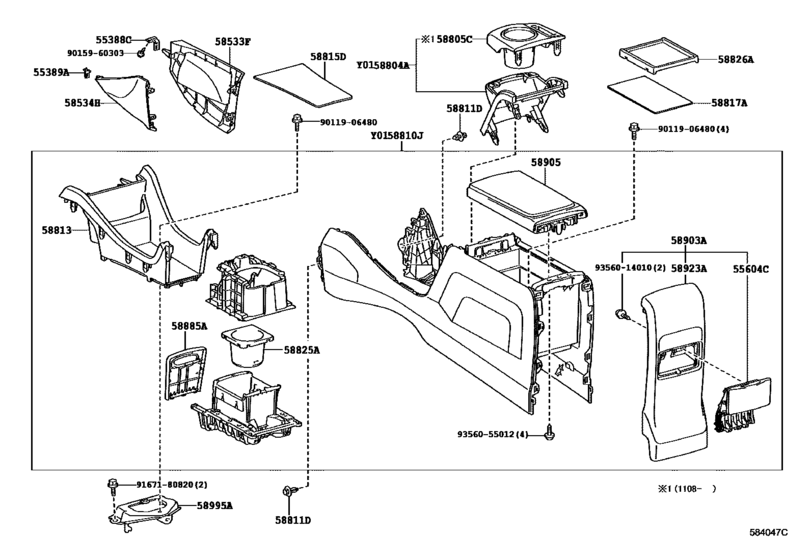

Console Box & Bracket ([04.2011 - ] (1104- )ZVW41) Diagram Toyota PRIUS
- Year
- 2011 - 2018
- Sales region
- Japan
- Frame
- ZVW41
- grade
- S
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- Model
- PRIUS A
- From
- 04.2011
- Seating Capacity
- 05S
- Vehicle Model
- PRIUS A
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55388C
|
55388C
55389-42020 Bracket, Finish Panel Mounting, No.1[04.2011 - 11.2014] ZVW4#..CBU |
55389-42020 |
US $4.73 |
||
|
55389A
|
55389A
55388-42020 Bracket, Finish Panel Mounting, No.2[04.2011 - 11.2014] ZVW4#..CBU |
55388-42020 |
US $2.71 |
||
|
55604C
|
55604C
55604-47010-B0 Holder Sub-Assy, Console Box Cup[04.2011 - 11.2014] ZVW41..CBU MD.GRAY,TRIM1#,2# |
55604-47010-B0 |
US $85.84 |
||
|
55604C
|
55604C
55604-47010-C0 Holder Sub-Assy, Console Box Cup[11.2014 -] ZVW41..CBU BLACK,TRIM2# |
55604-47010-C0 |
US $56.26 |
||
|
55604C
|
55604C
55604-47010-E0 Holder Sub-Assy, Console Box Cup[11.2014 -] ZVW41..CBU GREGE,TRIM4# |
55604-47010-E0 |
US $51.89 |
||
|
55604C
|
55604C
55604-47010-G0 Holder Sub-Assy, Console Box Cup[04.2011 - 11.2014] ZVW41..CBU AQUA,TRIM6# |
55604-47010-G0 |
US $53.44 |
||
|
58533F
|
58533F
58533-47010-B0 Cover, Floor Carpet, Center Rh[04.2011 - 11.2014] ZVW4#..CBU MD.GRAY,TRIM1#,2# |
58533-47010-B0 |
US $26.94 |
||
|
58533F
|
58533F
58533-47010-C0 Cover, Floor Carpet, Center Rh[11.2014 -] ZVW4#..CBU BLACK,TRIM2# |
58533-47010-C0 |
US $24.46 |
||
|
58533F
|
58533F
58533-47010-E0 Cover, Floor Carpet, Center Rh[11.2014 -] ZVW4#..CBU GREGE,TRIM4# |
58533-47010-E0 |
US $24.46 |
||
|
58533F
|
58533F
58533-47010-G0 Cover, Floor Carpet, Center Rh[04.2011 - 11.2014] ZVW4#..CBU AQUA,TRIM6# |
58533-47010-G0 |
US $26.94 |
||
|
58534H
|
58534H
58534-47010-B0 Cover, Floor Carpet, Center Lh[04.2011 - 11.2014] ZVW4#..CBU MD.GRAY,TRIM1#,2# |
58534-47010-B0 |
US $19.80 |
||
|
58534H
|
58534H
58534-47010-C0 Cover, Floor Carpet, Center Lh[11.2014 -] ZVW4#..CBU BLACK,TRIM2# |
58534-47010-C0 |
US $17.91 |
||
|
58534H
|
58534H
58534-47010-E0 Cover, Floor Carpet, Center Lh[11.2014 -] ZVW4#..CBU GREGE,TRIM4# |
58534-47010-E0 |
US $17.91 |
||
|
58534H
|
58534H
58534-47010-G0 Cover, Floor Carpet, Center Lh[04.2011 - 11.2014] ZVW4#..CBU AQUA,TRIM6# |
58534-47010-G0 |
US $19.80 |
||
|
58804A
|
58804A
58804-47030-B0 Panel Sub-Assy, Console, Upper[04.2011 - 11.2014] ZVW41..CBU MD.GRAY,TRIM1# |
58804-47030-B0 |
US $115.02 |
||
|
58804A
|
58804A
58804-47030-G0 Panel Sub-Assy, Console, Upper[04.2011 - 11.2014] ZVW41..CBU AQUA,TRIM6# |
58804-47030-G0 |
US $115.02 |
||
|
58804A
|
58804A
58804-47060-B0 Panel Sub-Assy, Console, Upper[08.2013 - 11.2014] ZVW41..CBU Ｇ”ｔｕｎｅ ＢＬＡＣＫ”＊（Ｂ） ＯＲ Ｓ”ｔｕｎｅ ＢＬＡＣＫ”＊（Ｂ）,MD.GR AY,TRIM2# |
58804-47060-B0 |
US $115.02 |
||
|
58804A
|
58804A
58804-47090-C0 Panel Sub-Assy, Console, Upper[11.2014 -] ZVW41..CBU BLACK,TRIM2# |
58804-47090-C0 |
US $103.38 |
||
|
58804A
|
58804A
58804-47090-E0 Panel Sub-Assy, Console, Upper[11.2014 -] ZVW41..CBU GREGE,TRIM4# |
58804-47090-E0 |
US $103.38 |
||
|
58804A
|
58804A
58804-47210-C0 Panel Sub-Assy, Console, Upper[02.2015 - 05.2016] ZVW41..S..CBU Ｇ’ｓ ＯＲ ＧＲ−ＳＰＯＲＴ,BLACK,TRIM2# |
58804-47210-C0 |
US $103.38 |
||
|
58805C
|
58805C
58805-47010 Panel Sub-Assy, Console, Upper Rear[08.2011 - 11.2014] ZVW41..CBU |
58805-47010 |
US $82.99 |
||
|
58805C
|
58805C
58805-47040 Panel Sub-Assy, Console, Upper Rear[08.2013 - 11.2014] ZVW41..CBU Ｇ”ｔｕｎｅ ＢＬＡＣＫ”＊（Ｂ） ＯＲ Ｓ”ｔｕｎｅ ＢＬＡＣＫ”＊（Ｂ） |
58805-47040 |
US $82.99 |
||
|
58805C
|
58805C
58805-47050 Panel Sub-Assy, Console, Upper Rear[11.2014 -] ZVW41..CBU |
58805-47050 |
US $74.26 |
||
|
58805C
|
58805C
58805-47070 Panel Sub-Assy, Console, Upper Rear[02.2015 - 05.2016] ZVW41..S..CBU Ｇ’ｓ ＯＲ ＧＲ−ＳＰＯＲＴ |
58805-47070 |
US $111 |
||
|
58810J
|
58810J
58810-47040-B0 Box Assy, Console[04.2011 - 11.2014] ZVW41..CBU GRAY,TRIM1#,2# |
58810-47040-B0 |
US $792.06 |
||
|
58810J
|
58810J
58810-47040-G0 Box Assy, Console[04.2011 - 11.2014] ZVW41..CBU AQUA/GRAY,TRIM6# |
58810-47040-G0 |
US $792.06 |
||
|
58810J
|
58810J
58810-47090-C1 Box Assy, Console[11.2014 -] ZVW41..CBU BLACK,TRIM2# |
58810-47090-C1 |
US $719.26 |
||
|
58810J
|
58810J
58810-47090-E1 Box Assy, Console[11.2014 -] ZVW41..CBU GREGE,TRIM4# |
58810-47090-E1 |
US $719.26 |
||
|
58810J
|
58810J
58810-47150-C0 Box Assy, Console[02.2015 - 05.2016] ZVW41..S..CBU Ｇ’ｓ ＯＲ ＧＲ−ＳＰＯＲＴ,BLACK,TRIM2# |
58810-47150-C0 |
US $736.74 |
||
|
58811D
|
58811D
90467-07164 Clip(For Front Fender Apron Seal)[04.2011 - 11.2014] ZVW4#..CBU |
90467-07164 |
from US $1.29 |
||
|
58813
|
58813
58813-47010-B0 Box, Console, Upper[04.2011 - 11.2014] ZVW41..CBU MD.GRAY,TRIM1#,2# |
58813-47010-B0 |
US $96.10 |
||
|
58813
|
58813
58813-47010-C0 Box, Console, Upper[11.2014 -] ZVW41..CBU BLACK,TRIM2# |
58813-47010-C0 |
US $87.36 |
||
|
58813
|
58813
58813-47010-E0
Box, Console, Upper
[11.2014 -] ZVW41..CBU GREGE,TRIM4# |
58813-47010-E0 |
— | ||
|
58813
|
58813
58813-47010-G0 Box, Console, Upper[04.2011 - 11.2014] ZVW41..CBU AQUA,TRIM6# |
58813-47010-G0 |
US $96.10 |
||
|
58815D
|
58815D
58816-47030-C0 Sheet, Console Box, No.1[04.2011 - 11.2014] ZVW41..CBU BLACK,TRIM1#,2#,6# |
58816-47030-C0 |
US $21.26 |
||
|
58817A
|
58817A
58817-47040-C0 Insert, Console Box, Front No.2[04.2011 - 11.2014] ZVW41..CBU BLACK,TRIM1#,2#,6# |
58817-47040-C0 |
US $18.20 |
||
|
58825A
|
58825A
58825-47030 Pocket, Console Box[04.2011 - 11.2014] ZVW41..CBU |
58825-47030 |
US $24.46 |
||
|
58826A
|
58826A
58826-47010 Pocket, Console Box, Lower[04.2011 - 11.2014] ZVW41..CBU |
58826-47010 |
US $27.78 |
||
|
58885A
|
58885A
58885-47010-B0 Panel, Equipment Set[04.2011 - 11.2014] ZVW41..CBU MD.GRAY,TRIM1#,2# |
58885-47010-B0 |
US $16.31 |
||
|
58885A
|
58885A
58885-47010-C0 Panel, Equipment Set[11.2014 -] ZVW41..CBU BLACK,TRIM2# |
58885-47010-C0 |
US $14.71 |
||
|
58885A
|
58885A
58885-47010-E0
Panel, Equipment Set
[11.2014 -] ZVW41..CBU GREGE,TRIM4# |
58885-47010-E0 |
— | ||
|
58885A
|
58885A
58885-47010-G0 Panel, Equipment Set[04.2011 - 11.2014] ZVW41..CBU AQUA,TRIM6# |
58885-47010-G0 |
US $16.31 |
||
|
58903A
|
58903A
58903-47030-B0 Panel Sub-Assy, Console Rear End[04.2011 - 11.2014] ZVW41..CBU MD.GRAY,TRIM1#,2# |
58903-47030-B0 |
US $101.92 |
||
|
58903A
|
58903A
58903-47030-C0 Panel Sub-Assy, Console Rear End[11.2014 -] ZVW41..CBU BLACK,TRIM2# |
58903-47030-C0 |
US $91.73 |
||
|
58903A
|
58903A
58903-47030-E0 Panel Sub-Assy, Console Rear End[11.2014 -] ZVW41..CBU GREGE,TRIM4# |
58903-47030-E0 |
US $91.73 |
||
|
58903A
|
58903A
58903-47030-G0 Panel Sub-Assy, Console Rear End[04.2011 - 11.2014] ZVW41..CBU AQUA,TRIM6# |
58903-47030-G0 |
US $101.92 |
||
|
58905
|
58905
58905-47091-B0 Door Sub-Assy, Console Compartment[04.2011 - 08.2011] ZVW41..CBU MD.GRAY/GRAY,TRIM1# |
58905-47091-B0 |
US $322 |
||
| replacement | |||||
|
58905
|
58905
58905-47091-B3 Door Sub-Assy, Console Compartment[04.2011 - 08.2011] ZVW41..CBU MD.GRAY/GRAY,TRIM1# |
58905-47091-B3 |
US $322 |
||
|
58905
|
58905
58905-47091-B2 Door Sub-Assy, Console Compartment[04.2011 - 08.2011] ZVW41..CBU AQUA/GRAY,TRIM6# |
58905-47091-B2 |
US $322 |
||
| replacement | |||||
|
58905
|
58905
58905-47091-G0 Door Sub-Assy, Console Compartment[04.2011 - 08.2011] ZVW41..CBU AQUA/GRAY,TRIM6# |
58905-47091-G0 |
US $322 |
||
|
58905
|
58905
58905-47091-B3 Door Sub-Assy, Console Compartment[08.2011 - 11.2014] ZVW41..CBU MD.GRAY,TRIM1#,2# |
58905-47091-B3 |
US $322 |
||
|
58905
|
58905
58905-47091-G0 Door Sub-Assy, Console Compartment[08.2011 - 11.2014] ZVW41..CBU AQUA,TRIM6# |
58905-47091-G0 |
US $322 |
||
|
58905
|
58905
58905-47210-C1 Door Sub-Assy, Console Compartment[11.2014 -] ZVW4#..CBU BLACK,TRIM2# |
58905-47210-C1 |
US $275.04 |
||
|
58905
|
58905
58905-47210-E1 Door Sub-Assy, Console Compartment[11.2014 -] ZVW41..CBU GREGE,TRIM4# |
58905-47210-E1 |
US $275.04 |
||
|
58905
|
58905
58905-47290-C0 Door Sub-Assy, Console Compartment[02.2015 - 05.2016] ZVW4#..S..CBU Ｇ’ｓ ＯＲ ＧＲ−ＳＰＯＲＴ,BLACK,TRIM2# |
58905-47290-C0 |
US $212.58 |
||
|
58923A
|
58923A
58923-47050-B0 Panel, Console Rear End[04.2011 - 11.2014] ZVW41..CBU MD.GRAY,TRIM1#,2# |
58923-47050-B0 |
US $57.51 |
||
|
58923A
|
58923A
58923-47050-C0 Panel, Console Rear End[11.2014 -] ZVW41..CBU BLACK,TRIM2# |
58923-47050-C0 |
US $52.27 |
||
|
58923A
|
58923A
58923-47050-E0 Panel, Console Rear End[11.2014 -] ZVW41..CBU GREGE,TRIM4# |
58923-47050-E0 |
US $52.27 |
||
|
58923A
|
58923A
58923-47050-G0 Panel, Console Rear End[04.2011 - 11.2014] ZVW41..CBU AQUA,TRIM6# |
58923-47050-G0 |
US $57.51 |
||
|
58995A
|
58995A
58995-47040 Bracket, Console Box Mounting, No.1[04.2011 - 11.2014] ZVW41..CBU |
58995-47040 |
US $13.98 |
||
|
9011906480
|
9011906480
90119-06480 BOLT |
90119-06480 |
from US $0.86 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.12 |
||
|
9167180820
|
9167180820
91671-80820 Bolt (For Transmission Control Cable Bracket) |
91671-80820 |
from US $0.88 |
||
|
9356014010
|
9356014010
93560-14010 SCREW |
93560-14010 |
US $0.96 |
||
|
9356055012
|
9356055012
93560-55012 New Genuine Part |
93560-55012 |
from US $1.92 |
||
