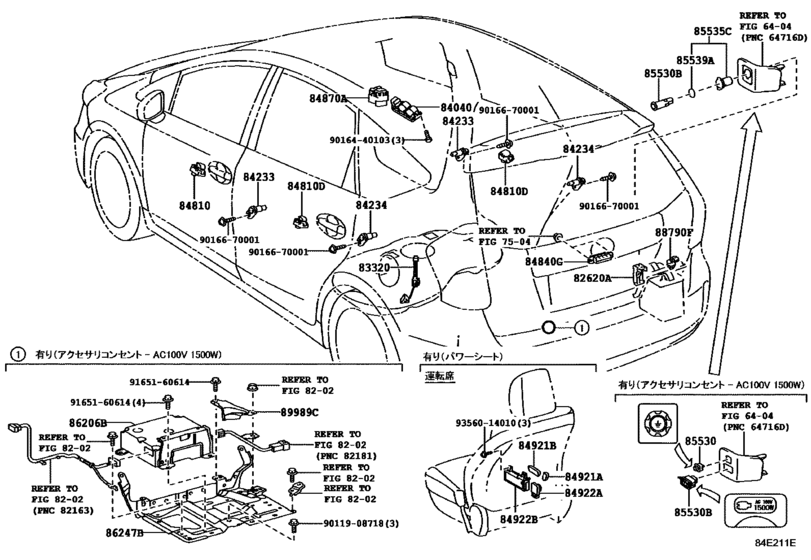

Switch & Relay & Computer ([04.2011 - ] ﾄﾞｱ,ﾙｰﾌ,ﾌﾛｱ & ﾊﾞｯｸﾄﾞｱ (1104- )ZVW41) Diagram Toyota PRIUS
- Year
- 2011 - 2018
- Sales region
- Japan
- Frame
- ZVW41
- grade
- S
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- Model
- PRIUS A
- From
- 04.2011
- Seating Capacity
- 05S
- Vehicle Model
- PRIUS A
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82620A
|
82620A
82620-47070 Block Assy, Fusible LinkFUSIBLE LINK [04.2011 - 11.2014] ZVW4#..CBU |
82620-47070 |
US $6.08 |
||
|
83320
|
83320
83320-47060 Gage Assy, Fuel Sender[04.2011 - 11.2013] ZVW4#..CBU |
83320-47060 |
US $62.17 |
||
| replacement | |||||
|
83320
|
83320
83320-47130 Gage Assy, Fuel Sender[04.2011 - 11.2013] ZVW4#..CBU |
83320-47130 |
US $82.88 |
||
|
83320
|
83320
83320-47130 Gage Assy, Fuel Sender[12.2013 - 11.2014] ZVW4#..CBU |
83320-47130 |
US $82.88 |
||
|
84040
|
84040
84040-12180 Master Switch Assy,multiplex Network[08.2013 - 11.2014] ZVW4#..CBU |
84040-12180 |
from US $195.84 |
||
|
84040
|
84040
84040-33080 Master Switch Assy, Power window regulator[04.2011 - 08.2013] ZVW4#..CBU |
84040-33080 |
from US $177.22 |
||
|
84233
|
84233
84231-60070 Switch, Courtesy Lamp[04.2011 - 11.2014] ZVW4#..CBU |
84231-60070 |
from US $10.56 |
||
|
84234
|
84234
84231-60070 Switch, Courtesy Lamp[04.2011 - 11.2014] ZVW4#..CBU |
84231-60070 |
from US $10.56 |
||
|
84810
|
84810
84810-33120 Switch Assy, Power Window Regulator[04.2011 - 11.2014] ZVW4#..CBU |
84810-33120 |
from US $54.80 |
||
| replacement | |||||
|
84810
|
84810
84810-06090 Switch Assy, Power Window Regulator[04.2011 - 11.2014] ZVW4#..CBU |
84810-06090 |
US $211.68 |
||
|
84810D
|
84810D
84810-33120 Switch Assy, Power Window Regulator[04.2011 - 11.2014] ZVW4#..CBU |
84810-33120 |
from US $54.80 |
||
| replacement | |||||
|
84810D
|
84810D
84810-06090 Switch Assy, Power Window Regulator[04.2011 - 11.2014] ZVW4#..CBU |
84810-06090 |
US $211.68 |
||
|
84840G
|
84840G
84840-28030 Switch Assy, Luggage Compartment Door Opening[04.2011 - 11.2014] ZVW4#..S..CBU |
84840-28030 |
from US $38.91 |
||
|
84840G
|
84840G
84840-28040 Switch Assy, Back Door Opener[04.2011 - 11.2014] ZVW4#..G; ZVW4#..S..CBU スマートエントリ−有り（運転席＆助手席＆バックドア） |
84840-28040 |
from US $59.38 |
||
|
84870A
|
84870A
84872-52040 Switch Assy, Outer Mirror[04.2011 - 11.2014] ZVW4#..CBU |
84872-52040 |
US $102.12 |
||
|
85530
|
85530
85530-28050-B2 Socket Assy, Power Outlet, No.1[08.2013 - 11.2014] ZVW41..CBU アクセサリコンセント−有り（ＡＣ１００Ｖ １５００Ｗ：２）,MD.GRAY,TRIM1#,2# |
85530-28050-B2 |
US $26.06 |
||
|
85530
|
85530
85530-28050-C0 Socket Assy, Power Outlet, No.1[11.2014 -] ZVW41..CBU アクセサリコンセント−有り（ＡＣ１００Ｖ １５００Ｗ：２）,BLACK,TRIM2# |
85530-28050-C0 |
US $26.60 |
||
|
85530
|
85530
85530-28050-E0 Socket Assy, Power Outlet, No.1[11.2014 -] ZVW41..CBU アクセサリコンセント−有り（ＡＣ１００Ｖ １５００Ｗ：２）,GREGE,TRIM4# |
85530-28050-E0 |
US $23.59 |
||
|
85530
|
85530
85530-28050-G0 Socket Assy, Power Outlet, No.1[08.2013 - 11.2014] ZVW41..CBU アクセサリコンセント−有り（ＡＣ１００Ｖ １５００Ｗ：２）,AQUA,TRIM6# |
85530-28050-G0 |
US $26.06 |
||
|
85530B
|
85530B
85530-42010 Socket Assy, Power Outlet, No.1[04.2011 - 11.2014] ZVW4#..CBU; ZVW4#..S..CBU “Ｌセレクション” ＊（Ｖ） |
85530-42010 |
from US $26.60 |
||
|
85530B
|
85530B
85530-58010-B2 Socket Assy, Power Outlet, Rear No.1[08.2013 - 11.2014] ZVW41..S..CBU “Ｌセレクション” ＊（Ｖ）＆アクセサリコンセント−有り（ＡＣ１００Ｖ １５００Ｗ ：２）,MD.GRAY,TRIM1#,2#; ZVW41..CBU アクセサリコンセント−有り（ＡＣ１００Ｖ １５００Ｗ：２）,MD.GRAY,TRIM1#,2# |
85530-58010-B2 |
US $26.06 |
||
|
85530B
|
85530B
85530-58010-C1 Socket Assy, Power Outlet, No.1[11.2014 -] ZVW41..S..CBU Ｓ“Ｌセレクション”＊（Ｖ）＆アクセサリコンセント−有り（ＡＣ１００Ｖ １５００Ｗ ：２）,BLACK,TRIM2#; ZVW41..CBU アクセサリコンセント−有り（ＡＣ１００Ｖ １５００Ｗ：２）,BLACK,TRIM2# |
85530-58010-C1 |
US $23.59 |
||
|
85530B
|
85530B
85530-58010-E2 Socket Assy, Power Outlet, Rear No.1[11.2014 -] ZVW41..S..CBU Ｓ“Ｌセレクション”＊（Ｖ）＆アクセサリコンセント−有り（ＡＣ１００Ｖ １５００Ｗ ：２）,GREGE,TRIM4#; ZVW41..CBU アクセサリコンセント−有り（ＡＣ１００Ｖ １５００Ｗ：２）,GREGE,TRIM4# |
85530-58010-E2 |
US $23.59 |
||
|
85530B
|
85530B
85530-58010-G0 Socket Assy, Power Outlet, Rear No.1[08.2013 - 11.2014] ZVW41..S..CBU “Ｌセレクション” ＊（Ｖ）＆アクセサリコンセント−有り（ＡＣ１００Ｖ １５００Ｗ ：２）,AQUA,TRIM6#; ZVW41..CBU アクセサリコンセント−有り（ＡＣ１００Ｖ １５００Ｗ：２）,AQUA,TRIM6# |
85530-58010-G0 |
US $26.06 |
||
|
85535C
|
85535C
85535-60100-C0 Cover, Power Outlet Socket, No.1 (Black)[04.2011 - 11.2014] ZVW41..CBU BLACK; ZVW41..S..CBU “Ｌセレクション” ＊（Ｖ）,BLACK |
85535-60100-C0 |
US $8.32 |
||
|
85539A
|
85539A
85539-60020 Label, Power Outlet Notice[04.2011 - 11.2014] ZVW4#..CBU; ZVW4#..S..CBU “Ｌセレクション” ＊（Ｖ） |
85539-60020 |
US $1.41 |
||
|
86206B
|
86206B
86206-47010 Inverter Sub-Assy, Voltage[08.2013 - 11.2014] ZVW41..CBU アクセサリコンセント−有り（ＡＣ１００Ｖ １５００Ｗ：２） |
86206-47010 |
US $985.42 |
||
|
86247B
|
86247B
86247-47010 Bracket, Voltage Inverter[08.2013 - 11.2014] ZVW41..CBU アクセサリコンセント−有り（ＡＣ１００Ｖ １５００Ｗ：２） |
86247-47010 |
US $90.27 |
||
|
88790F
|
88790F
88790-22131 Thermistor, Cooler[04.2011 - 11.2014] ZVW4#..CBU |
88790-22131 |
US $33.55 |
||
|
89989C
|
89989C
89989-47040 Bracket, Computer, No.3[08.2013 - 11.2014] ZVW41..CBU アクセサリコンセント−有り（ＡＣ１００Ｖ １５００Ｗ：２） |
89989-47040 |
US $10.34 |
||
|
9011908718
|
9011908718
90119-08718 BOLT WWASHER |
90119-08718 |
from US $2.07 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
from US $0.84 |
||
|
9016670001
|
9016670001
90166-70001 Screw Hex Lobular |
90166-70001 |
US $0.96 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9356014010
|
9356014010
93560-14010 SCREW |
93560-14010 |
US $0.96 |
||
