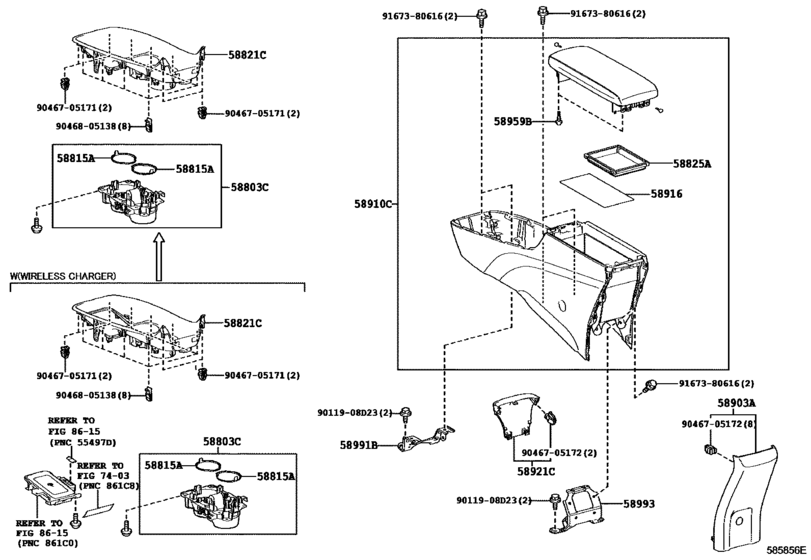

Console Box & Bracket ([11.2015 - ] (1511- )) Diagram Toyota PRIUS
- Year
- 2015 - 2018
- Sales region
- U.S.A.
- Frame
- ZVW50
- grade
- BASE
- ENGINE
- 2ZRFXE
- DESTINATION
- USA
- Model
- PRIUS
- From
- 11.2015
- Vehicle Model
- PRIUS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58803C
|
58803C
58803-47010 Box Sub-Assy, Console Cup Holder[11.2015 - 05.2016] ZVW50 USA POSSESSION SPEC; ZVW50 HAWAII SPEC; ZVW50 MEXICO SPEC; ZVW50 KOREA SPEC |
58803-47010 |
US $63.92 |
||
| replacement | |||||
|
58803C
|
58803C
58803-47011-A0 Box Sub-Assy, Console Cup Holder[11.2015 - 05.2016] ZVW50 USA POSSESSION SPEC; ZVW50 HAWAII SPEC; ZVW50 MEXICO SPEC; ZVW50 KOREA SPEC |
58803-47011-A0 |
US $85.84 |
||
|
58803C
|
58803C
58803-47011-A0 Box Sub-Assy, Console Cup Holder[06.2016 -] ZVW51..L,S WHITE,TRIM1#; ZVW50 USA POSSESSION SPEC,WHITE,TRIM1#; ZVW50 HAWAII SPEC,WHITE,TRIM1#; ZVW50 MEXICO SPEC,WHITE,TRIM1#; ZVW50 MEXICO SPEC&UPPER PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,WHITE,TRIM1#; ZVW50 KOREA SPEC,WHITE,TRIM1#; |
58803-47011-A0 |
US $85.84 |
||
|
58803C
|
58803C
58803-47011-C0 Box Sub-Assy, Console Cup Holder[10.2016 -] ZVW51..L BLACK METALLC,TRIM2#,4#; ZVW51..S BLACK METALLC,TRIM2#; ZVW50 USA POSSESSION SPEC,BLACK METALLC,TRIM2#,4#; ZVW50 HAWAII SPEC,BLACK METALLC,TRIM2#,4#; ZVW50 MEXICO SPEC,BLACK METALLC,TRIM2#,4#; ZVW50 MEXICO SPEC&UPPER PACKAGE&SEAT COVE |
58803-47011-C0 |
US $85.84 |
||
|
58803C
|
58803C
58803-47020 Box Sub-Assy, Console Cup Holder[11.2015 -] ZVW5#..BASE,ECO |
58803-47020 |
US $48.34 |
||
|
58815A
|
58815A
58815-47080 Carpet, Console Box[11.2015 -] ZVW5# |
58815-47080 |
US $10.24 |
||
|
58821C
|
58821C
58821-47040 Panel, Console, Upper[11.2015 - 06.2016] ZVW51..L,S; ZVW50 MEXICO SPEC&UPPER PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER; ZVW50 KOREA SPEC&UPPER PACKAGE |
58821-47040 |
US $133.95 |
||
| replacement | |||||
|
58821C
|
58821C
58821-47041-A0 Panel, Console, Upper[11.2015 - 06.2016] ZVW51..L,S; ZVW50 MEXICO SPEC&UPPER PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER; ZVW50 KOREA SPEC&UPPER PACKAGE |
58821-47041-A0 |
US $120.85 |
||
|
58821C
|
58821C
58821-47041-A0 Panel, Console, Upper[06.2016 -] ZVW51..L,S WHITE,TRIM1#; ZVW50 MEXICO SPEC&UPPER PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,WHITE,TRIM1#; ZVW50 KOREA SPEC&UPPER PACKAGE,WHITE,TRIM1# |
58821-47041-A0 |
US $120.85 |
||
|
58821C
|
58821C
58821-47041-C0 Panel, Console, Upper[10.2016 -] ZVW51..L BLACK METALLC,TRIM2#,4#; ZVW51..S BLACK METALLC,TRIM2#; ZVW50 MEXICO SPEC&UPPER PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK METALLC,TRIM 2#,4#; ZVW50 KOREA SPEC&UPPER PACKAGE,BLACK METALLC,TRIM2#,4# |
58821-47041-C0 |
US $120.85 |
||
|
58821C
|
58821C
58821-47050 Panel, Console, Upper[11.2015 - 05.2016] ZVW50 USA POSSESSION SPEC; ZVW50 HAWAII SPEC; ZVW50 MEXICO SPEC; ZVW50 KOREA SPEC |
58821-47050 |
US $133.95 |
||
| replacement | |||||
|
58821C
|
58821C
58821-47051-A0 Panel, Console, Upper[11.2015 - 05.2016] ZVW50 USA POSSESSION SPEC; ZVW50 HAWAII SPEC; ZVW50 MEXICO SPEC; ZVW50 KOREA SPEC |
58821-47051-A0 |
US $172.80 |
||
|
58821C
|
58821C
58821-47051-A0 Panel, Console, Upper[06.2016 -] ZVW50 USA POSSESSION SPEC,WHITE,TRIM1#; ZVW50 HAWAII SPEC,WHITE,TRIM1#; ZVW50 MEXICO SPEC,WHITE,TRIM1#; ZVW50 KOREA SPEC,WHITE,TRIM1# |
58821-47051-A0 |
US $172.80 |
||
|
58821C
|
58821C
58821-47051-C0 Panel, Console, Upper[10.2016 -] ZVW50 USA POSSESSION SPEC,BLACK METALLC,TRIM2#,4#; ZVW50 HAWAII SPEC,BLACK METALLC,TRIM2#,4#; ZVW50 MEXICO SPEC,BLACK METALLC,TRIM2#,4#; ZVW50 KOREA SPEC,BLACK METALLC,TRIM2#,4# |
58821-47051-C0 |
US $172.80 |
||
|
58821C
|
58821C
58821-47070 Panel, Console, Upper[11.2015 -] ZVW5#..BASE,ECO |
58821-47070 |
US $87.12 |
||
|
58825A
|
58825A
58825-47060 Pocket, Console Box[11.2015 -] ZVW5# |
58825-47060 |
US $28.58 |
||
|
58903A
|
58903A
58903-47050-B0
Panel Sub-Assy, Console Rear End
[11.2015 -] ZVW5# NEUTRAL WARM GRAY,TRIM4# |
58903-47050-B0 |
— | ||
|
58903A
|
58903A
58903-47050-C0
Panel Sub-Assy, Console Rear End
[11.2015 -] ZVW5# BLACK,TRIM1#,2# |
58903-47050-C0 |
— | ||
|
58910C
|
58910C
58910-47010-B1
Box Assy, Console, Rear
[11.2015 -] ZVW51..S NEUTRAL WARM GRAY,TRIM4#; ZVW51..L FOUR PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL WARM GRAY,TRIM4#; ZVW50 FRONT SEAT-DRIVER(8-WAY)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL WARM GRAY,T RIM4# |
58910-47010-B1 |
— | ||
|
58910C
|
58910C
58910-47010-C2
Box Assy, Console, Rear
[11.2015 -] ZVW51..S BLACK,TRIM1#,2#; ZVW51..L FOUR PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM1#,2#; ZVW50 FRONT SEAT-DRIVER(8-WAY)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM1#,2# |
58910-47010-C2 |
— | ||
|
58910C
|
58910C
58910-47020-B2
Box Assy, Console, Rear
[11.2015 -] ZVW5#..BASE,ECO,L NEUTRAL WARM GRAY,TRIM4# |
58910-47020-B2 |
— | ||
|
58910C
|
58910C
58910-47020-C3
Box Assy, Console, Rear
[11.2015 -] ZVW5#..BASE,ECO,L BLACK,TRIM1#,2# |
58910-47020-C3 |
— | ||
|
58916
|
58916
58916-47020 Mat, Box Bottom[11.2015 -] ZVW5# |
58916-47020 |
US $3.20 |
||
|
58921C
|
58921C
58921-47020 Plate, Box, Upper No.1[11.2015 - 06.2016] ZVW51..L,S; ZVW50 USA POSSESSION SPEC; ZVW50 HAWAII SPEC; ZVW50 MEXICO SPEC; ZVW50 KOREA SPEC |
58921-47020 |
US $48.34 |
||
| replacement | |||||
|
58921C
|
58921C
58921-47021-A0 Plate, Box, Upper No.1[11.2015 - 06.2016] ZVW51..L,S; ZVW50 USA POSSESSION SPEC; ZVW50 HAWAII SPEC; ZVW50 MEXICO SPEC; ZVW50 KOREA SPEC |
58921-47021-A0 |
US $65.51 |
||
|
58921C
|
58921C
58921-47021-A0 Plate, Box, Upper No.1[07.2016 -] ZVW51..L,S WHITE,TRIM1#; ZVW50 USA POSSESSION SPEC,WHITE,TRIM1#; ZVW50 HAWAII SPEC,WHITE,TRIM1#; ZVW50 MEXICO SPEC,WHITE,TRIM1#; ZVW50 KOREA SPEC,WHITE,TRIM1# |
58921-47021-A0 |
US $65.51 |
||
|
58921C
|
58921C
58921-47021-C0 Plate, Box, Upper No.1[10.2016 -] ZVW51..L BLACK METALLC,TRIM2#,4#; ZVW51..S BLACK METALLC,TRIM2#; ZVW50 USA POSSESSION SPEC,BLACK METALLC,TRIM2#,4#; ZVW50 HAWAII SPEC,BLACK METALLC,TRIM2#,4#; ZVW50 MEXICO SPEC,BLACK METALLC,TRIM2#,4#; ZVW50 KOREA SPEC,BLACK METALLC,TRIM2#,4# |
58921-47021-C0 |
US $65.51 |
||
|
58921C
|
58921C
58921-47030 Plate, Box, Upper No.1[11.2015 -] ZVW5#..BASE,ECO |
58921-47030 |
US $26.35 |
||
|
58959B
|
58959B
90541-03078 Cushion(For Cup Holder)[11.2015 -] ZVW5# |
90541-03078 |
from US $1.66 |
||
|
58991B
|
58991B
58991-47020 Bracket, Console Box Mounting, Front[11.2015 -] ZVW5# |
58991-47020 |
US $15.84 |
||
|
58993
|
58993
58996-47030 Bracket, Console Box Mounting, Rear[11.2015 -] ZVW5# |
58996-47030 |
US $24.02 |
||
|
9011908D23
|
9011908D23
90119-08D23 New Genuine Part |
90119-08D23 |
US $0.96 |
||
|
9046705171
|
9046705171
90467-05171 Clip, Instrument Panel |
90467-05171 |
US $0.96 |
||
|
9046705172
|
9046705172
90467-05172 Clip, Instrument Panel, No.1 |
90467-05172 |
US $0.96 |
||
|
9046805138
|
9046805138
90468-05138 Clip, Instrument Panel |
90468-05138 |
from US $1.05 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.96 |
||
