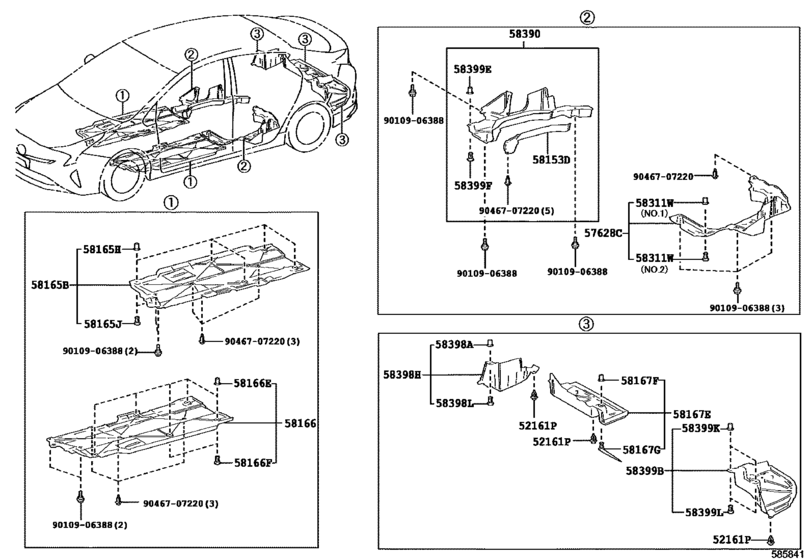

Floor Pan & Lower Back Panel ([11.2015 - ] FLOOR UNDER COVER (1511- )) Diagram Toyota PRIUS
- Year
- 2015 - 2018
- Sales region
- U.S.A.
- Frame
- ZVW50
- grade
- BASE
- ENGINE
- 2ZRFXE
- DESTINATION
- USA
- Model
- PRIUS
- From
- 11.2015
- Vehicle Model
- PRIUS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52161P
|
52161P
52161-16010 Clip[11.2015 -] ZVW5# |
52161-16010 |
from US $1.68 |
||
| replacements | |||||
|
52161P
|
52161P
52161-0K040 Clip[11.2015 -] ZVW5# |
52161-0K040 |
from US $1.46 |
||
|
52161P
|
52161P
52161-02020 Clip[11.2015 -] ZVW5# |
52161-02020 |
US $5.27 |
||
|
57628C
|
57628C
57628-47030
Cover, Rear Floor Side Member, Lh
[11.2015 -] ZVW5# |
57628-47030 |
— | ||
|
58153D
|
58153D
58152-47010 Insulator, Front Floor Heat, No.1 Lower[11.2015 -] ZVW5# |
58152-47010 |
US $38.61 |
||
|
58165B
|
58165B
58165-47030 Cover, Front Floor, Rh[11.2015 -] ZVW5# |
58165-47030 |
US $191.52 |
||
|
58165H
|
58165H
90467-17026-A0 Clip, No.1(For Front Fender Seal)[11.2015 -] ZVW5# SUPER WHITE 2 |
90467-17026-A0 |
from US $1.09 |
||
|
58165J
|
58165J
90467-17027-C0 Clip, No.2(For Front Fender Seal)[11.2015 -] ZVW5# BLACK |
90467-17027-C0 |
from US $1.29 |
||
|
58166
|
58166
58166-47030 Cover, Front Floor, Lh[11.2015 -] ZVW5# |
58166-47030 |
US $191.52 |
||
|
58166E
|
58166E
90467-17026-A0 Clip, No.1(For Front Fender Seal)[11.2015 -] ZVW5# SUPER WHITE 2 |
90467-17026-A0 |
from US $1.09 |
||
|
58166F
|
58166F
90467-17027-C0 Clip, No.2(For Front Fender Seal)[11.2015 -] ZVW5# BLACK |
90467-17027-C0 |
from US $1.29 |
||
|
58167E
|
58167E
66259-47010 Cover, Rear Floor[11.2015 -] ZVW5# |
66259-47010 |
from US $87.09 |
||
|
58167F
|
58167F
90467-17026-A0 Clip, No.1(For Front Fender Seal)[11.2015 -] ZVW5# SUPER WHITE 2 |
90467-17026-A0 |
from US $1.09 |
||
|
58167G
|
58167G
90467-17027-C0 Clip, No.2(For Front Fender Seal)[11.2015 -] ZVW5# BLACK |
90467-17027-C0 |
from US $1.29 |
||
|
58311W
|
58311W
90467-17026-A0 Clip, No.1(For Front Fender Seal)[11.2015 -] ZVW5# SUPER WHITE 2,NO.1:REFER ILLUST. |
90467-17026-A0 |
from US $1.09 |
||
|
58311W
|
58311W
90467-17027-C0 Clip, No.2(For Front Fender Seal)[11.2015 -] ZVW5# BLACK,NO.2:REFER ILLUST. |
90467-17027-C0 |
from US $1.29 |
||
|
58390
|
58390
58390-47010 Cover Assy, Floor Under, No.1[11.2015 -] ZVW5# |
58390-47010 |
US $96.10 |
||
|
58398A
|
58398A
90467-17026-A0 Clip, No.1(For Front Fender Seal)[11.2015 -] ZVW5# SUPER WHITE 2 |
90467-17026-A0 |
from US $1.09 |
||
|
58398H
|
58398H
58398-47050 Cover, Floor Under, No.1[11.2015 -] ZVW5# |
58398-47050 |
US $65.66 |
||
|
58398L
|
58398L
90467-17027-C0 Clip, No.2(For Front Fender Seal)[11.2015 -] ZVW5# BLACK |
90467-17027-C0 |
from US $1.29 |
||
|
58399B
|
58399B
58399-47030 Cover, Floor Under, No.2[11.2015 -] ZVW5# |
58399-47030 |
from US $91.76 |
||
|
58399E
|
58399E
90467-17026-A0 Clip, No.1(For Front Fender Seal)[11.2015 -] ZVW5# SUPER WHITE 2 |
90467-17026-A0 |
from US $1.09 |
||
|
58399F
|
58399F
90467-17027-C0 Clip, No.2(For Front Fender Seal)[11.2015 -] ZVW5# BLACK |
90467-17027-C0 |
from US $1.29 |
||
|
58399K
|
58399K
90467-17026-A0 Clip, No.1(For Front Fender Seal)[11.2015 -] ZVW5# SUPER WHITE 2 |
90467-17026-A0 |
from US $1.09 |
||
|
58399L
|
58399L
90467-17027-C0 Clip, No.2(For Front Fender Seal)[11.2015 -] ZVW5# BLACK |
90467-17027-C0 |
from US $1.29 |
||
|
9010906388
|
9010906388
90109-06388 BOLT |
90109-06388 |
from US $0.68 |
||
| replacement | |||||
|
9010906388
|
9010906388
90109-A0061 Bolt |
90109-A0061 |
US $1.77 |
||
|
9046707220
|
9046707220
90467-07220 Clip |
90467-07220 |
from US $1.28 |
||
