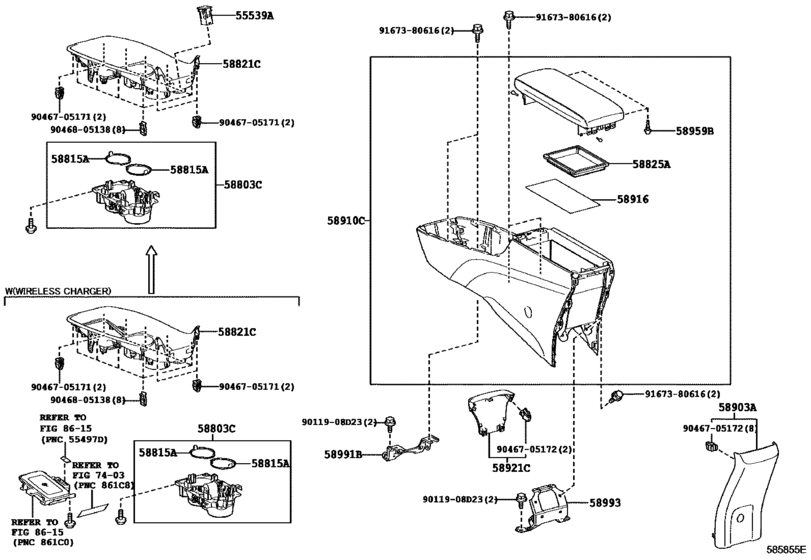

Console Box & Bracket ([11.2015 - ] (1511- )RHD) Diagram Toyota PRIUS
- Year
- 2015 - 2018
- Sales region
- Europe
- Frame
- ZVW50
- ENGINE
- 2ZRFXE
- DESTINATION
- EUR
- Model
- PRIUS
- From
- 11.2015
- Vehicle Model
- PRIUS
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55539A
|
55539A
55539-58070-C0 Cover, Spare Switch Hole[11.2015 -] ZVW50 AUDIO-AUDIO LESS & 6SPEAKER,BLACK |
55539-58070-C0 |
US $6.56 |
||
|
58803C
|
58803C
58803-47010 Box Sub-Assy, Console Cup Holder[11.2015 - 05.2016] ZVW50 |
58803-47010 |
US $63.92 |
||
| replacement | |||||
|
58803C
|
58803C
58803-47011-A0 Box Sub-Assy, Console Cup Holder[11.2015 - 05.2016] ZVW50 |
58803-47011-A0 |
US $85.84 |
||
|
58803C
|
58803C
58803-47011-A0 Box Sub-Assy, Console Cup Holder[06.2016 -] ZVW50..RHD WHITE,TRIM1# |
58803-47011-A0 |
US $85.84 |
||
|
58803C
|
58803C
58803-47011-C0 Box Sub-Assy, Console Cup Holder[10.2016 -] ZVW50..LHD BLACK METALLC,TRIM20; ZVW50..RHD BLACK METALLC,TRIM2# |
58803-47011-C0 |
US $85.84 |
||
|
58815A
|
58815A
58815-47080 Carpet, Console Box[11.2015 -] ZVW50 |
58815-47080 |
US $10.24 |
||
|
58821C
|
58821C
58821-47040 Panel, Console, Upper[11.2015 - 06.2016] ZVW50 WIRELESS CHARGER-WITH |
58821-47040 |
US $133.95 |
||
| replacement | |||||
|
58821C
|
58821C
58821-47041-A0 Panel, Console, Upper[11.2015 - 06.2016] ZVW50 WIRELESS CHARGER-WITH |
58821-47041-A0 |
US $120.85 |
||
|
58821C
|
58821C
58821-47041-A0 Panel, Console, Upper[06.2016 -] ZVW50..RHD WIRELESS CHARGER-WITH,WHITE,TRIM1# |
58821-47041-A0 |
US $120.85 |
||
|
58821C
|
58821C
58821-47041-C0 Panel, Console, Upper[10.2016 -] ZVW50..LHD WIRELESS CHARGER-WITH,BLACK METALLC,TRIM20; ZVW50..RHD WIRELESS CHARGER-WITH,BLACK METALLC,TRIM2# |
58821-47041-C0 |
US $120.85 |
||
|
58821C
|
58821C
58821-47050 Panel, Console, Upper[11.2015 - 05.2016] ZVW50 |
58821-47050 |
US $133.95 |
||
| replacement | |||||
|
58821C
|
58821C
58821-47051-A0 Panel, Console, Upper[11.2015 - 05.2016] ZVW50 |
58821-47051-A0 |
US $172.80 |
||
|
58821C
|
58821C
58821-47051-A0 Panel, Console, Upper[06.2016 -] ZVW50..RHD WHITE,TRIM1# |
58821-47051-A0 |
US $172.80 |
||
|
58821C
|
58821C
58821-47051-C0 Panel, Console, Upper[10.2016 -] ZVW50..LHD BLACK METALLC,TRIM20; ZVW50..RHD BLACK METALLC,TRIM2# |
58821-47051-C0 |
US $172.80 |
||
|
58825A
|
58825A
58825-47060 Pocket, Console Box[11.2015 -] ZVW50 |
58825-47060 |
US $28.58 |
||
|
58903A
|
58903A
58903-47050-C0
Panel Sub-Assy, Console Rear End
[11.2015 -] ZVW50 BLACK,TRIM1#,2# |
58903-47050-C0 |
— | ||
|
58910C
|
58910C
58910-47030-C2 Box Assy, Console, Rear[11.2015 -] ZVW50..RHD SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK,TRIM1#,2# |
58910-47030-C2 |
US $509.60 |
||
|
58910C
|
58910C
58910-47040-C2 Box Assy, Console, Rear[11.2015 -] ZVW50..RHD BLACK,TRIM1#,2# |
58910-47040-C2 |
US $502.60 |
||
|
58916
|
58916
58916-47020 Mat, Box Bottom[11.2015 -] ZVW50 |
58916-47020 |
US $3.20 |
||
|
58921C
|
58921C
58921-47020 Plate, Box, Upper No.1[11.2015 - 06.2016] ZVW50 |
58921-47020 |
US $48.34 |
||
| replacement | |||||
|
58921C
|
58921C
58921-47021-A0 Plate, Box, Upper No.1[11.2015 - 06.2016] ZVW50 |
58921-47021-A0 |
US $65.51 |
||
|
58921C
|
58921C
58921-47021-A0 Plate, Box, Upper No.1[07.2016 -] ZVW50..RHD WHITE,TRIM1# |
58921-47021-A0 |
US $65.51 |
||
|
58921C
|
58921C
58921-47021-C0 Plate, Box, Upper No.1[10.2016 -] ZVW50..LHD BLACK METALLC,TRIM20; ZVW50..RHD BLACK METALLC,TRIM2# |
58921-47021-C0 |
US $65.51 |
||
|
58959B
|
58959B
90541-03078 Cushion(For Cup Holder)[11.2015 -] ZVW50 |
90541-03078 |
from US $1.76 |
||
|
58991B
|
58991B
58991-47020 Bracket, Console Box Mounting, Front[11.2015 -] ZVW50 |
58991-47020 |
US $15.84 |
||
|
58993
|
58993
58996-47030 Bracket, Console Box Mounting, Rear[11.2015 -] ZVW50 |
58996-47030 |
US $24.02 |
||
|
9011908D23
|
9011908D23
90119-08D23 New Genuine Part |
90119-08D23 |
US $0.96 |
||
|
9046705171
|
9046705171
90467-05171 Clip, Instrument Panel |
90467-05171 |
from US $0.66 |
||
|
9046705172
|
9046705172
90467-05172 Clip, Instrument Panel, No.1 |
90467-05172 |
US $0.96 |
||
|
9046805138
|
9046805138
90468-05138 Clip, Instrument Panel |
90468-05138 |
from US $1.07 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
