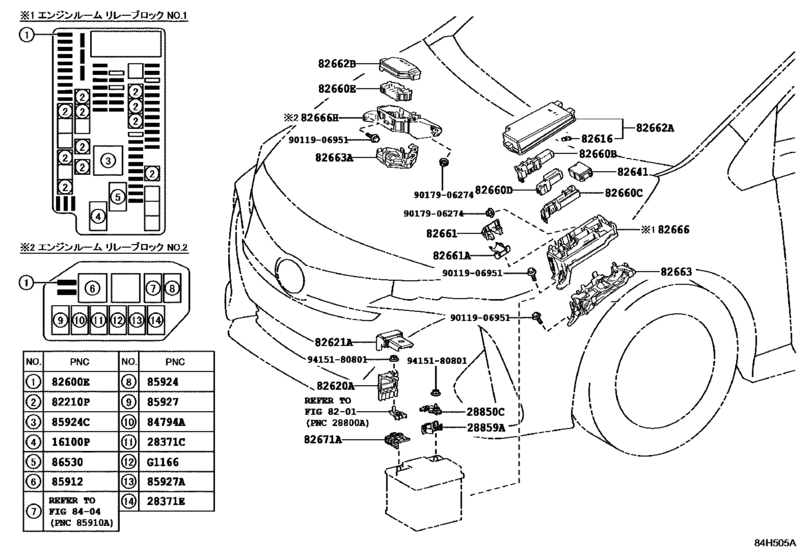

Switch & Relay & Computer ([09.2016 - ] ｴﾝｼﾞﾝﾙｰﾑ (1609- )CBU) Diagram Toyota PRIUS
- Year
- 2016 - 2018
- Sales region
- Japan
- Frame
- ZVW52
- grade
- S
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- Model
- PRIUS
- From
- 09.2016
- Vehicle Model
- PRIUS PHV
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100P
|
16100P
90987-02027 Relay[09.2016 -] 2ZRFXE..ZVW52..CBU |
90987-02027 |
from US $44.54 |
||
|
28371C
|
28371C
90987-04004 Relay, Starter Cut[09.2016 -] 2ZRFXE..ZVW52..CBU |
90987-04004 |
from US $42.71 |
||
|
28371E
|
28371E
90987-02027 Relay[09.2016 -] 2ZRFXE..ZVW52..CBU |
90987-02027 |
from US $44.54 |
||
|
28850C
|
28850C
28850-37070 Sensor Assy, Battery State[09.2016 -] 2ZRFXE..ZVW52..CBU |
28850-37070 |
from US $99.94 |
||
|
28859A
|
28859A
28859-37030 Holder, Battery Current Sensor[09.2016 -] 2ZRFXE..ZVW52..CBU |
28859-37030 |
US $5.53 |
||
|
82210P
|
82210P
90982-08295 Fusible Link[09.2016 -] ZVW52..CBU ３０Ａ，メス端子 |
90982-08295 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08296 Fusible Link[09.2016 -] ZVW52..CBU ５０Ａ，メス端子 |
90982-08296 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08300 Fusible Link[09.2016 -] ZVW52..CBU ５０Ａ−３０Ａ−３０Ａ，メス端子 |
90982-08300 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08308 Fusible Link[09.2016 -] ZVW52..CBU ４０Ａ−３０Ａ−３０Ａ，メス端子 |
90982-08308 |
from US $6.56 |
||
|
82600E
|
82600E
90982-09019 Instrument Panel Fuse[09.2016 -] ZVW52..CBU ５Ａ，ミニ ヒューズ |
90982-09019 |
from US $0.86 |
||
|
82600E
|
82600E
90982-09020 Fusible Link[09.2016 -] ZVW52..CBU ７．５Ａ，ミニ ヒューズ |
90982-09020 |
from US $0.92 |
||
|
82600E
|
82600E
90982-09021 Fusible Link[09.2016 -] ZVW52..CBU １０Ａ，ミニ ヒューズ |
90982-09021 |
from US $0.90 |
||
|
82600E
|
82600E
90982-09022 Instrument Panel Fuse[09.2016 -] ZVW52..CBU １５Ａ，ミニ ヒューズ |
90982-09022 |
from US $0.88 |
||
|
82600E
|
82600E
90982-09023 Instrument Panel Fuse[09.2016 -] ZVW52..CBU ２０Ａ，ミニ ヒューズ |
90982-09023 |
from US $0.86 |
||
|
82600E
|
82600E
90982-09024 Instrument Panel Fuse[09.2016 -] ZVW52..CBU ２５Ａ，ミニ ヒューズ |
90982-09024 |
from US $0.88 |
||
|
82600E
|
82600E
90982-09025 Instrument Panel Fuse[09.2016 -] ZVW52..CBU ３０Ａ，ミニ ヒューズ |
90982-09025 |
from US $0.92 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[09.2016 -] ZVW52..CBU |
82616-58010 |
from US $2.32 |
||
|
82620A
|
82620A
82620-47090 Block Assy, Fusible Link[09.2016 -] ZVW52..CBU |
82620-47090 |
from US $38.76 |
||
|
82621A
|
82621A
82621-47020 Cover, Fusible Link[09.2016 -] ZVW52..CBU |
82621-47020 |
from US $11.68 |
||
|
82641
|
82641
82641-47050 Relay, Integration No.1[09.2016 -] ZVW52..CBU |
82641-47050 |
from US $79.92 |
||
|
82660B
|
82660B
82660-47070 Block Assy, Relay[09.2016 -] ZVW52..CBU |
82660-47070 |
from US $26.50 |
||
|
82660C
|
82660C
82660-47080 Block Assy, Relay[09.2016 -] ZVW52..CBU |
82660-47080 |
US $28.83 |
||
|
82660D
|
82660D
82660-47090 Block Assy, Relay[09.2016 -] ZVW52..CBU |
82660-47090 |
from US $13.83 |
||
|
82660E
|
82660E
82660-47100 Block Assy, Relay[09.2016 -] ZVW52..CBU |
82660-47100 |
US $26.50 |
||
|
82661
|
82661
82661-47020 Cover, Relay Block, No.1[09.2016 -] ZVW52..CBU |
82661-47020 |
US $3.20 |
||
|
82661A
|
82661A
82661-47030 Cover, Relay Block, No.2[09.2016 -] ZVW52..CBU |
82661-47030 |
from US $1.68 |
||
|
82662A
|
82662A
82662-47230 Cover, Relay Block, Upper, No.1[09.2016 -] ZVW52..CBU |
82662-47230 |
US $28.83 |
||
|
82662B
|
82662B
82662-47240 Cover, Relay Block, Upper, No.2[09.2016 -] ZVW52..CBU |
82662-47240 |
US $12.96 |
||
|
82663
|
82663
82663-47070 Cover, Relay Block, Lower[09.2016 -] ZVW52..CBU |
82663-47070 |
from US $27.97 |
||
|
82663A
|
82663A
82663-47090 Cover, Relay Block, Lower, No.2[09.2016 -] ZVW52..CBU |
82663-47090 |
US $10.18 |
||
|
82666
|
82666
82666-47610 Holder, Connector[09.2016 -] ZVW52..CBU |
82666-47610 |
from US $40.95 |
||
|
82666H
|
82666H
82666-47620 Holder, Connector, No.2[09.2016 -] ZVW52..CBU |
82666-47620 |
US $37.20 |
||
|
82671A
|
82671A
82671-47040 Block, Junction[09.2016 -] ZVW52..CBU |
82671-47040 |
from US $6.16 |
||
|
84794A
|
84794A
90987-02027 Relay[09.2016 -] ZVW52..CBU 寒冷地仕様 |
90987-02027 |
from US $44.54 |
||
|
85912
|
85912
90987-04010 Relay Assy (For Heater Blower Motor)[09.2016 -] ZVW52..CBU |
90987-04010 |
from US $42.71 |
||
|
85924
|
85924
90987-02027 Relay[09.2016 -] ZVW52..CBU |
90987-02027 |
from US $44.54 |
||
|
85924C
|
85924C
90987-02025 Relay[09.2016 -] ZVW52..CBU |
90987-02025 |
from US $44.54 |
||
|
85927
|
85927
90987-02027 Relay[09.2016 -] ZVW52..CBU |
90987-02027 |
from US $44.54 |
||
|
85927A
|
85927A
90987-02027 Relay[09.2016 -] ZVW52..CBU |
90987-02027 |
from US $44.54 |
||
|
86530
|
86530
90987-02027 Relay[09.2016 -] ZVW52..CBU |
90987-02027 |
from US $44.54 |
||
|
9011906951
|
9011906951
90119-06951 BOLT WWASHER |
90119-06951 |
from US $0.82 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9415180801
|
9415180801
94151-80801 NUT FLANGE |
94151-80801 |
from US $0.80 |
||
|
G1166
|
G1166
90987-02027 Relay[09.2016 -] ZVW52..CBU |
90987-02027 |
from US $44.54 |
